Rear Brake Caliper and Master Cylinder Assy for Coleman Mini Bike

Rear Brake Caliper and Master Cylinder Assy for Coleman Mini Bike

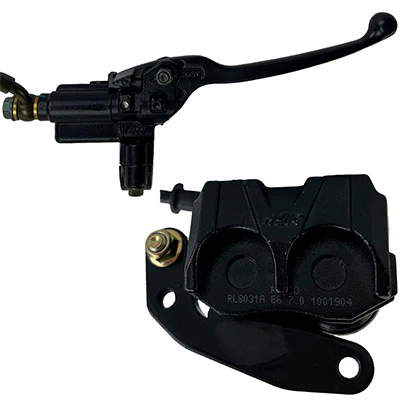

This rear brake assembly is the replacement part for the Coleman B200C, B200R, B200V, RB200 and the Realtree RT200 mini bike.  The assembly has the rear brake master cylinder, caliper, and brake line hose.   Please us pictures and descriptions to determine fit before ordering.

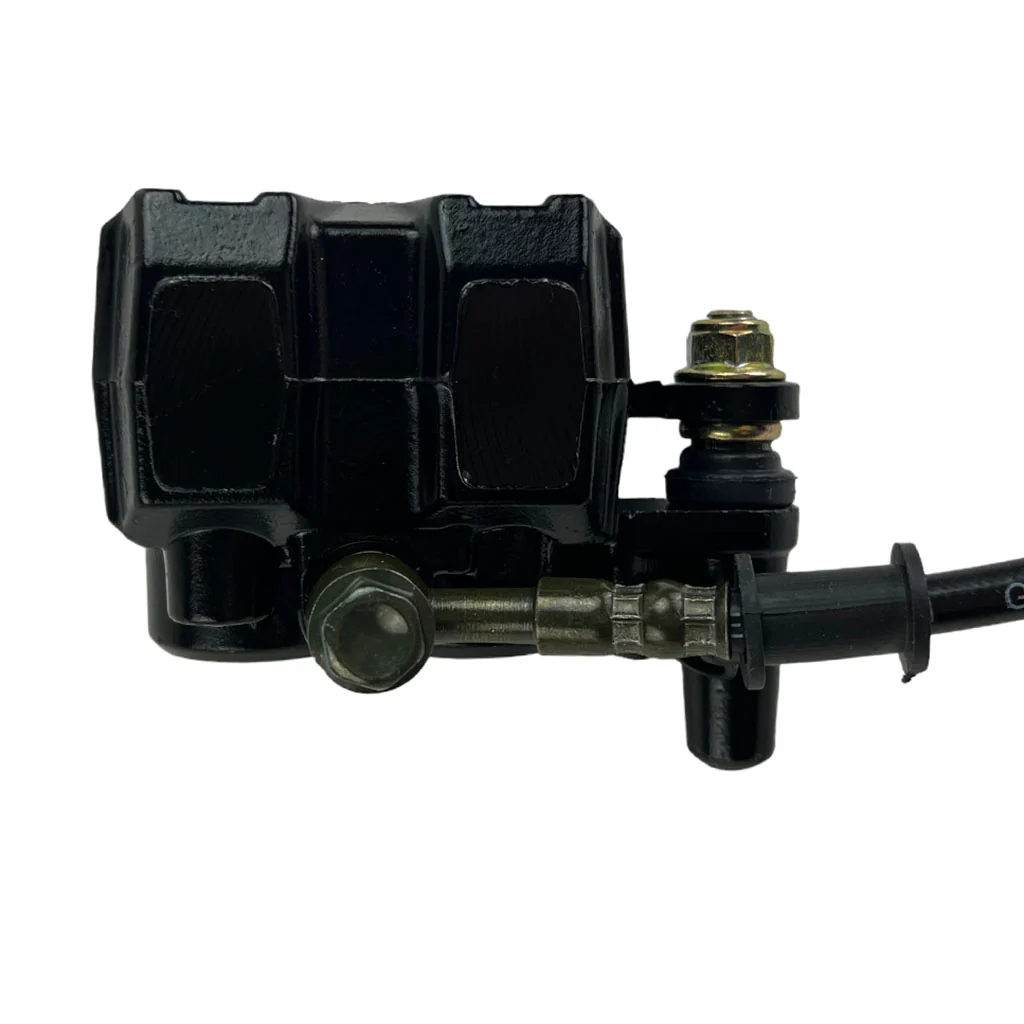

Master cylinder description:

• Rear brakes
• LH handlebar mounted master cylinder with 178mm black lever
• Brake hose attaches to the inside of the master cylinder
• Fits standard 22mm (7/8 in) handlebars
• Uses DOT3 or DOT 4 brake fluid
• TT-125067   125067

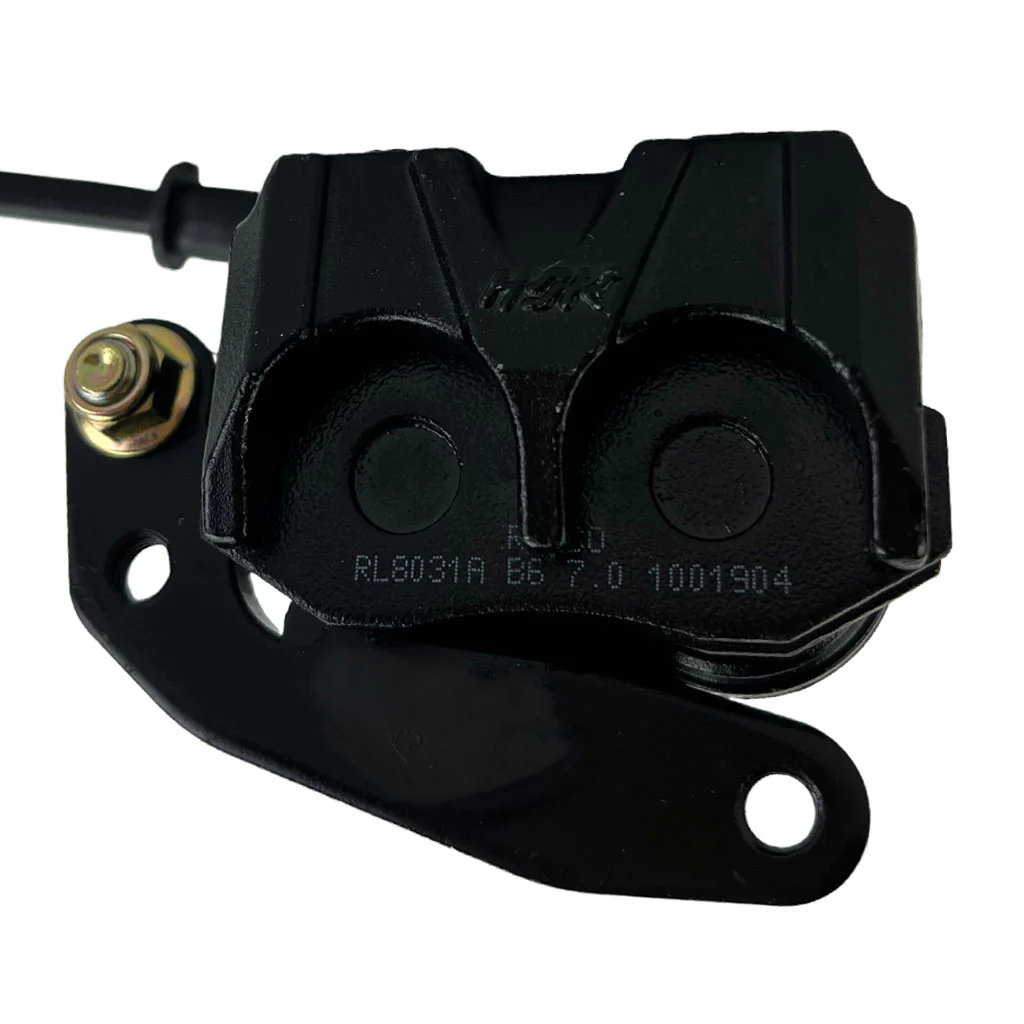

Caliper details:

• Twin cylinder with bracket
• 8mm*1.25 mounting holes are 75mm (2.95 in) center-to-center apart
• Bracket holes are threaded M8
• Includes bleeder screw

Brake hose:

• Approximately 66 inches long

SHOP NOTE: After changing the assembly, be sure to see if you need to bleed any air from the brake system to insure the caliper is working effectively.

Fits the Coleman B200C, B200R, B200V and RB200 mini bike.

Fits the Realtree RT200 mini bike.
