Brake Caliper and Master Cylinder Assembly - Coleman KT196 Go-Kart

REAR Disc Brake Caliper and Master Cylinder Assembly - Coleman KT196

This Chinese rear brake assembly is the replacement part for the Coleman KT196 and Hisun GK200 go-karts.   The assembly has the brake master cylinder, caliper, brake line hose and brake fluid reservoir.

ATTN:  The last shipment of brake assemblies came with the wrong length long hose.  We are including the correct hose, but you will need to change the hose and bleed the brake system.

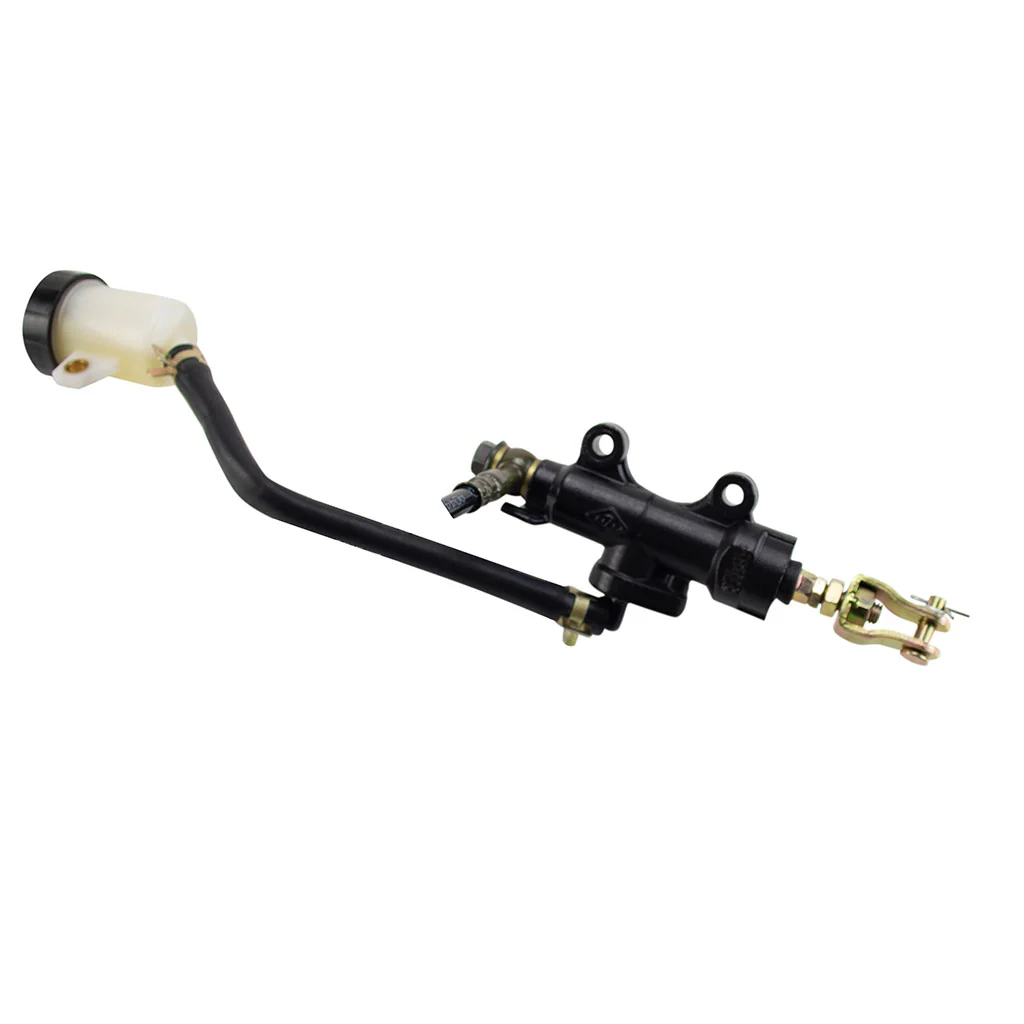

Master Cylinder description:

• Mounting holes on master cylinder are 45mm (1.8 in) center-to-center apart
• Adjustable length piston with clevis and pin
• Reservoir mounts on the top
• Hose to reservoir is about 188mm (7.5 in) long
• Shipped with brake fluid in reservoir
• Reservoir has metal reinforced mounting hole on side

Caliper details:

• Mounting holes are 65mm (2.5 in) center to center apart
• Includes pads
• Includes bleeder screw
• 44300-400001-0000
• P400001443000000

Hose is approximately 5.5 feet long.  This is an OE assembly from Hisun.

SHOP NOTE: After changing the assembly, be sure to see if you need to bleed any air from the brake system to insure the caliper is working effectively.
