Stator Magneto with Matching Flywheel -11 Coil - GY6 125cc 150cc

11 Coil Stator Magneto with Matching Flywheel for GY6 125cc and 150cc Engines.

This stator magneto with flywheel is the replacement part for many 4-stroke Chinese atvs, dirt bikes, go-karts and scooters. This stator fits GY6 125cc and 150cc models.

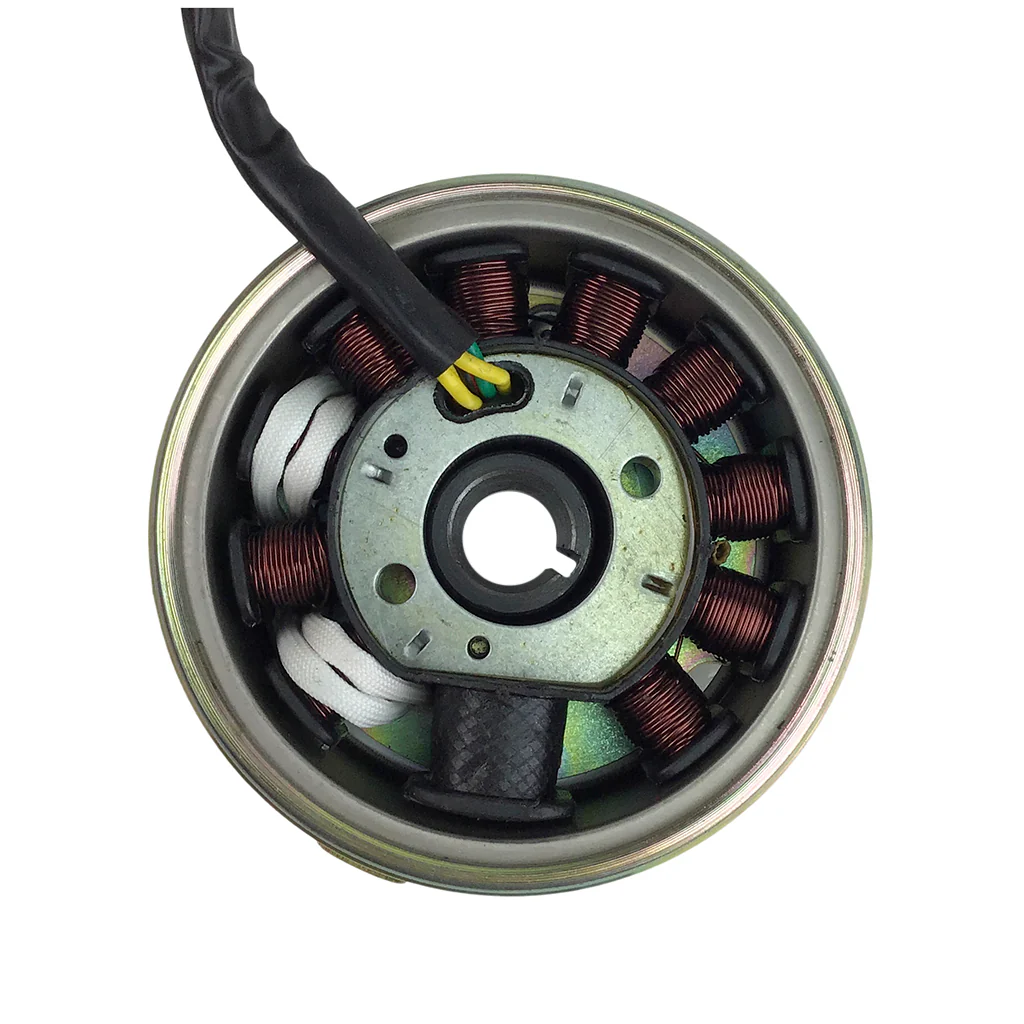

Stator description:

• 11 coils (1 wrapped)
• AC
• 7 wires - green 4 wire female plug + 2 pigtails (+1 trigger wire)
• 2 bolt mounting

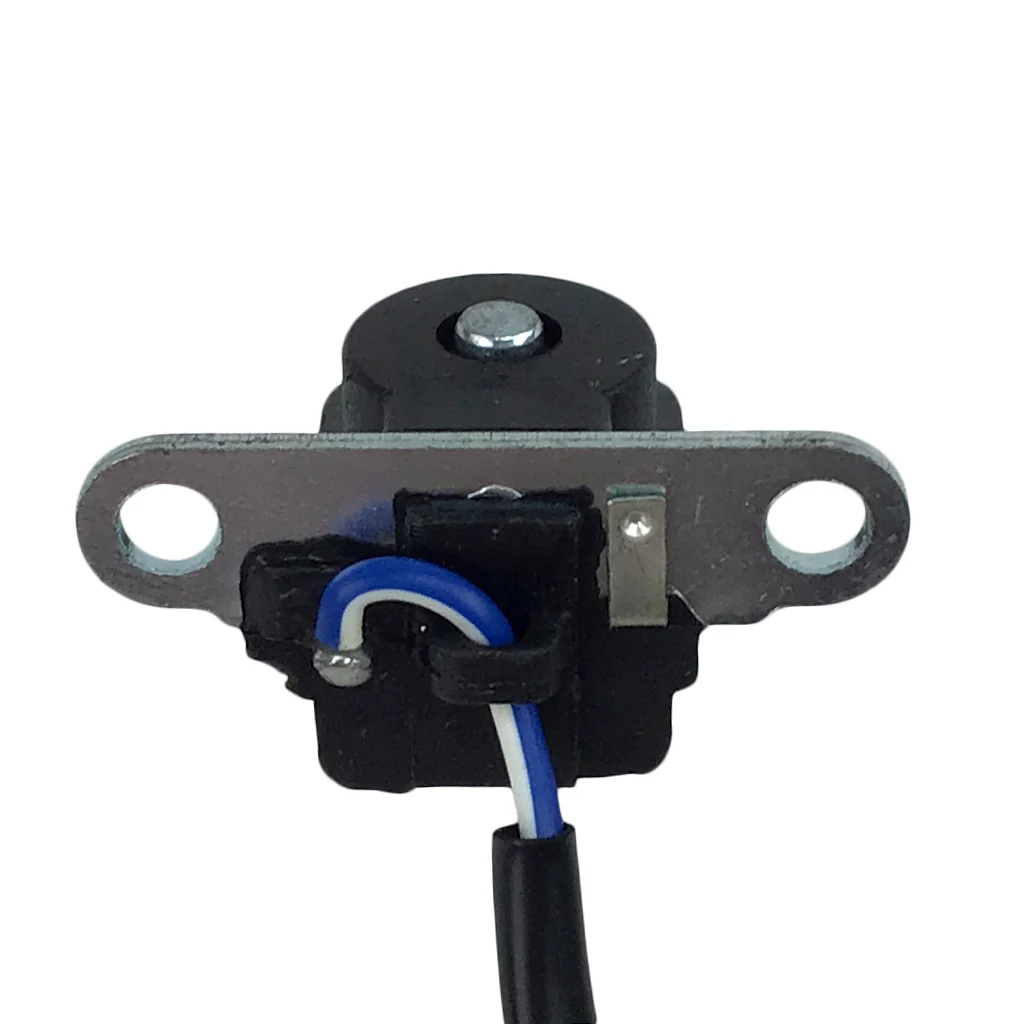

• Pick up trigger wire - single wire
• Center hole measurement: 29mm (1.14 in)

• Overall measurement:  89mm (3.51 in)

• Bolt hole spacing: 41mm (1.61 in)

• Bolt hole diameter: 6mm (0.23 in)

• Trigger wire mounting center-to-center: 33.6mm (1.32 in)

• Compatible with GY6 125cc and 150cc 4-strokes

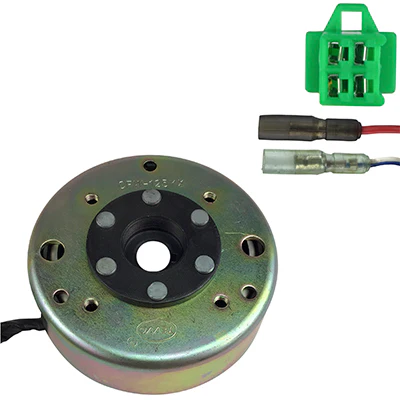

Flywheel description:

• Outside diameter: 109.4mm (4.31 in)

• Inside diameter: 15.5mm (0.61 in)

• 4 mounting holes center-to center adjacent holes: 53.4mm (2.10 in)

• Has a place for a key

Know to fit the Tao Tao ARROW 150, Targa 150 and 4Fun go-karts.

Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!

Electrical parts are not returnable.  Please double check before ordering.
