Stator Magneto Flywheel - Jianshe JS400 400cc ATV

Stator Magneto Flywheel - Jianshe JS400 400cc ATV

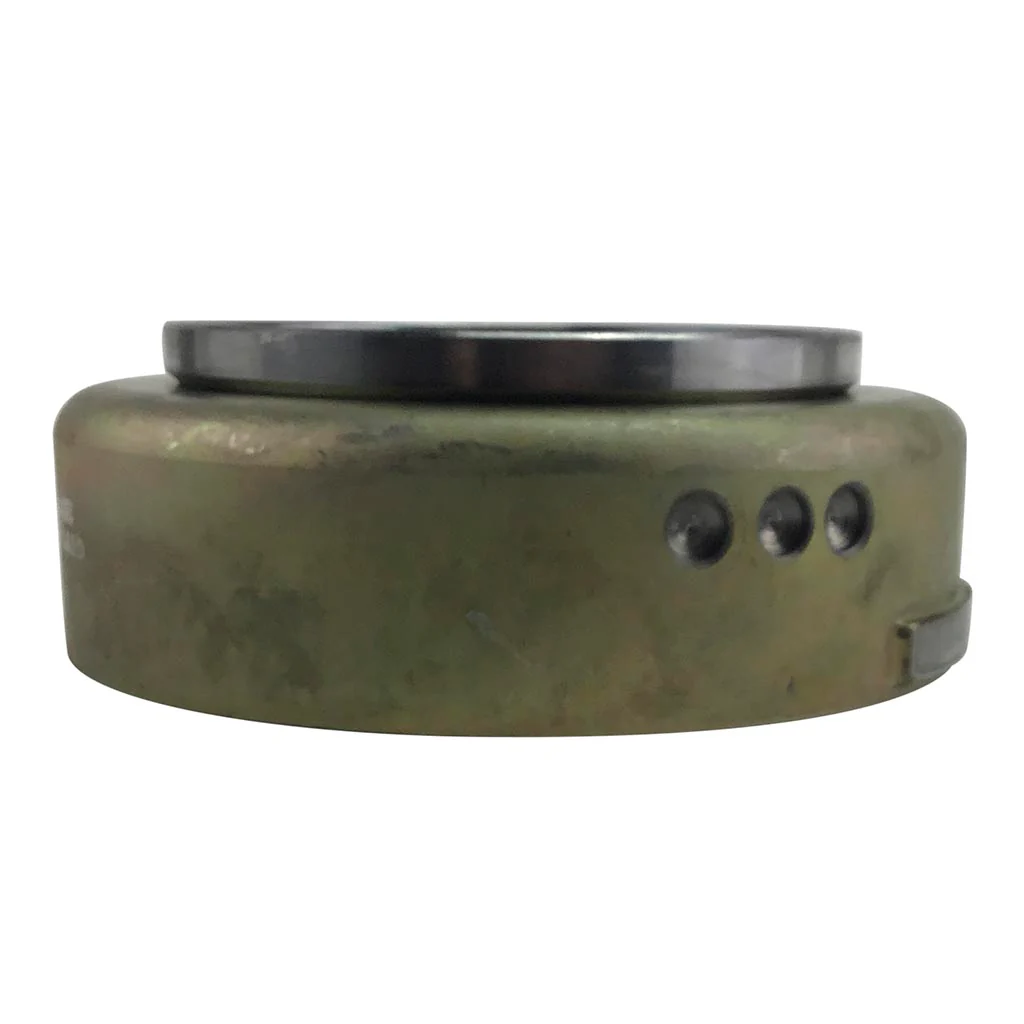

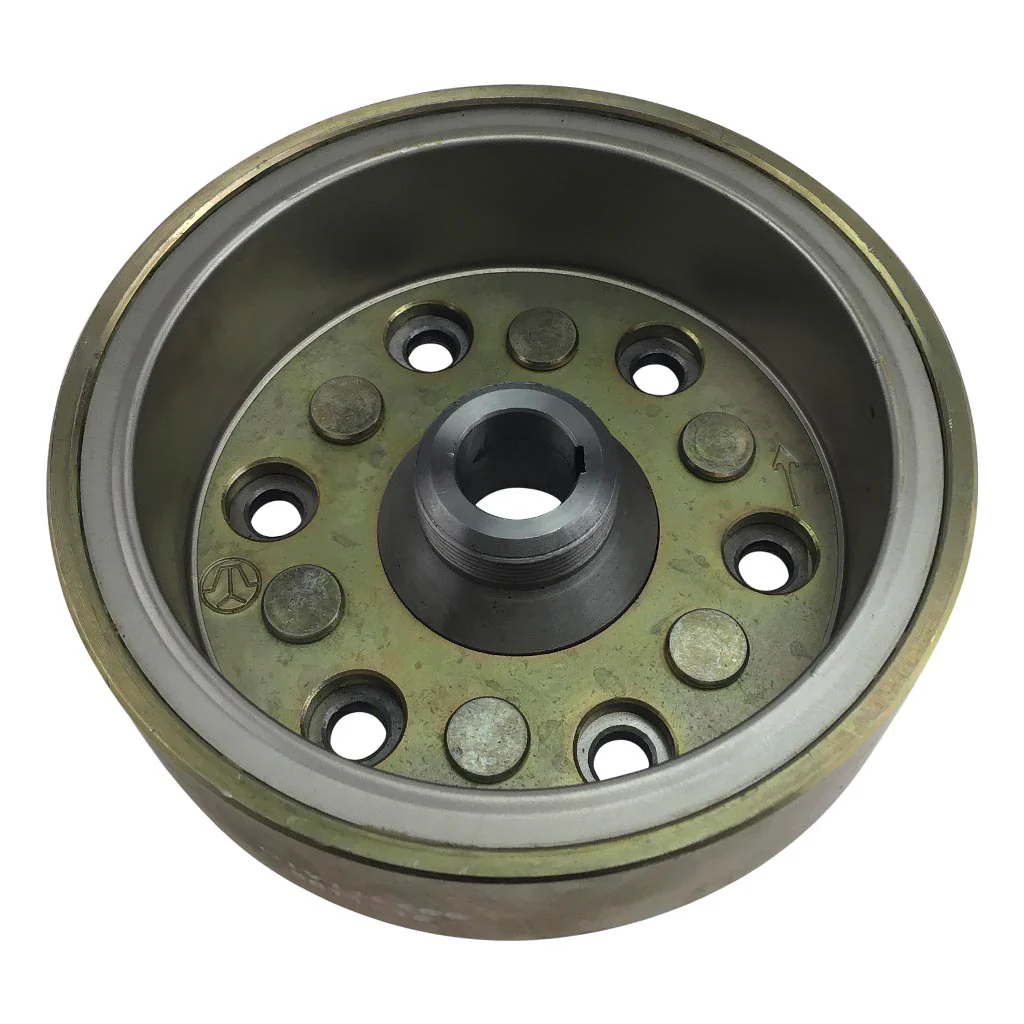

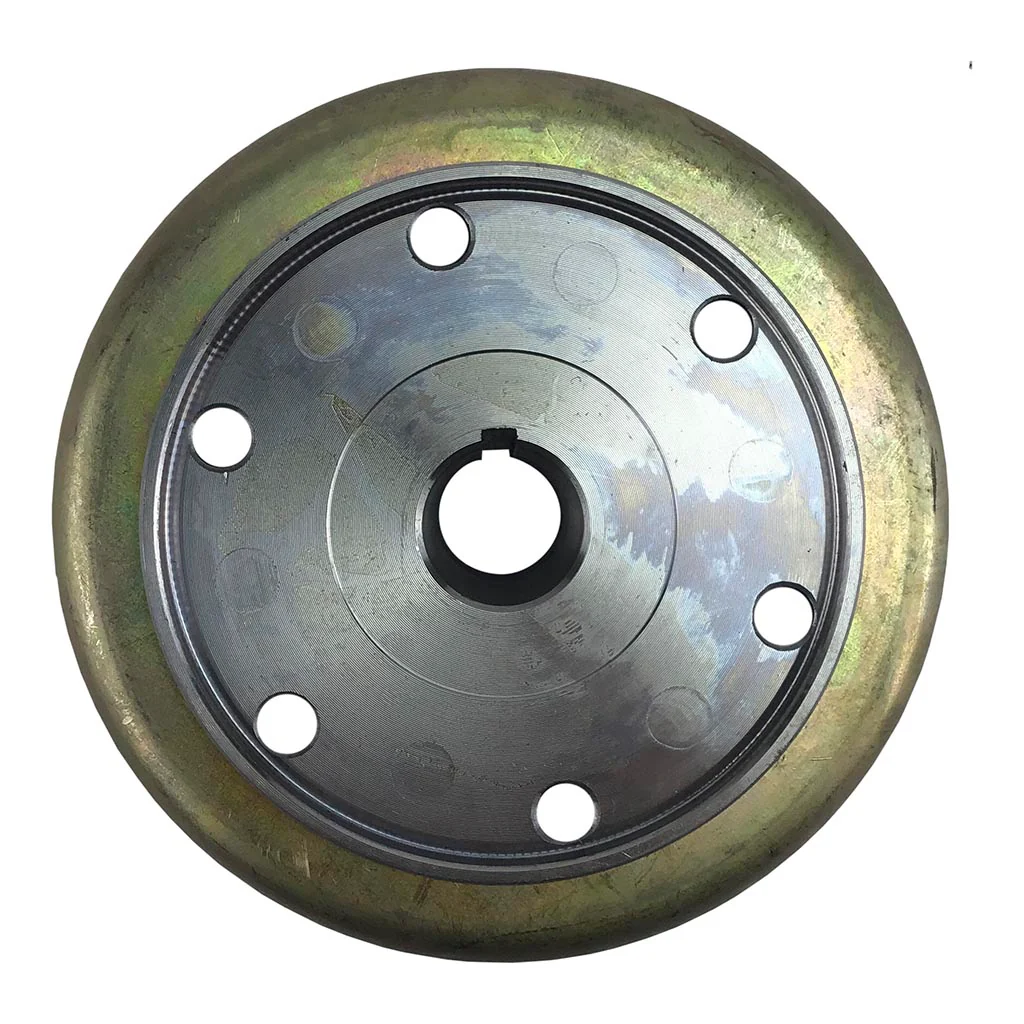

Chinese stator magneto flywheel is for a Jianshe 400cc engines.  The Chinese sometimes refer to these as magnetic motor rotors.   I don't know what makes or models this particular flywheel is used on, so please use the measurements and pictures to match your part.

Flywheel description:

• Overall height: 52mm (2.05 in)

• Outside diameter: 143mm (5.62 in) does not include tab

• Inside diameter of magnetic brass part: 116.6mm (4.59 in)

• ID of mounting hole: 23.3mm (0.91 in)

• 6 holes

• Cutout flywheel key notch.
• F3-D51000-0

Known to fit 400cc engines.
