Axle Bearing Flange for Coleman KT196 Go-Kart

Rear Axle Hub Bearing Flange for Coleman KT196 Go-Kart

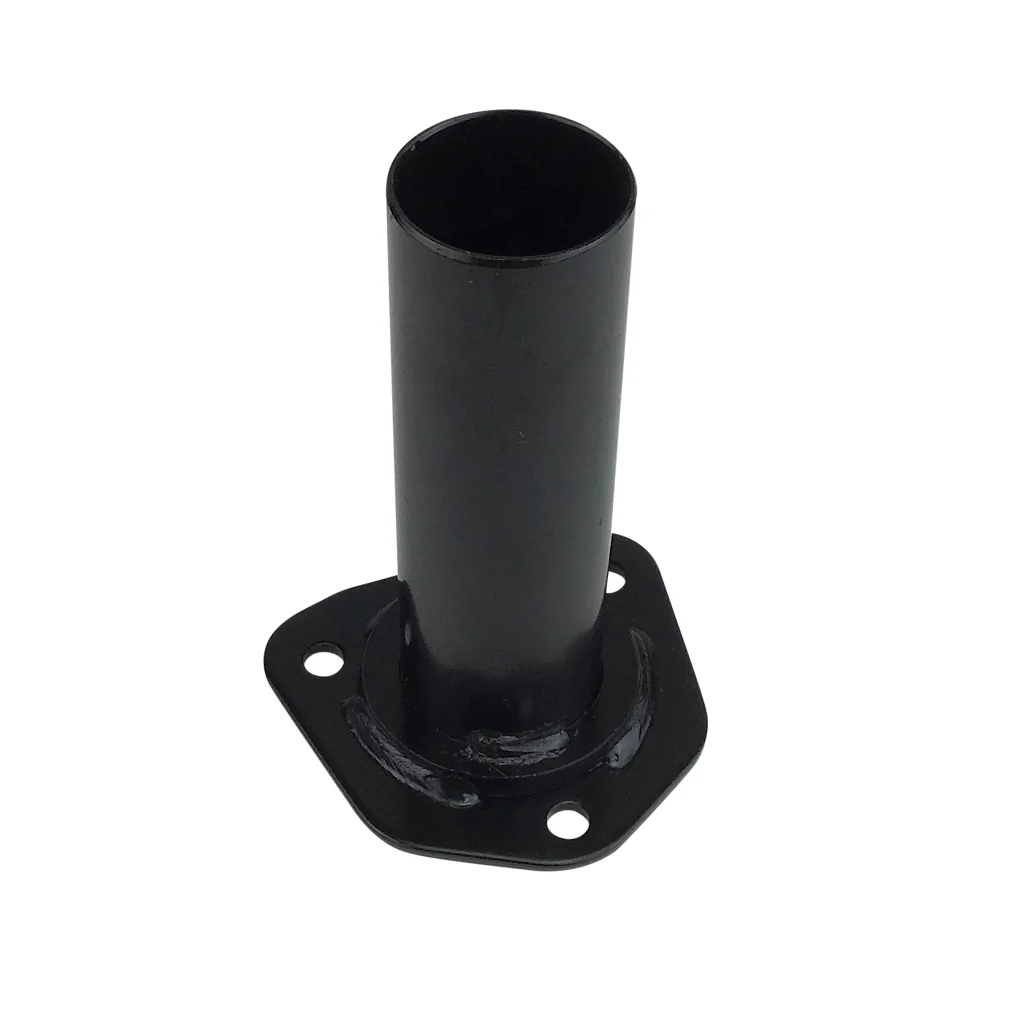

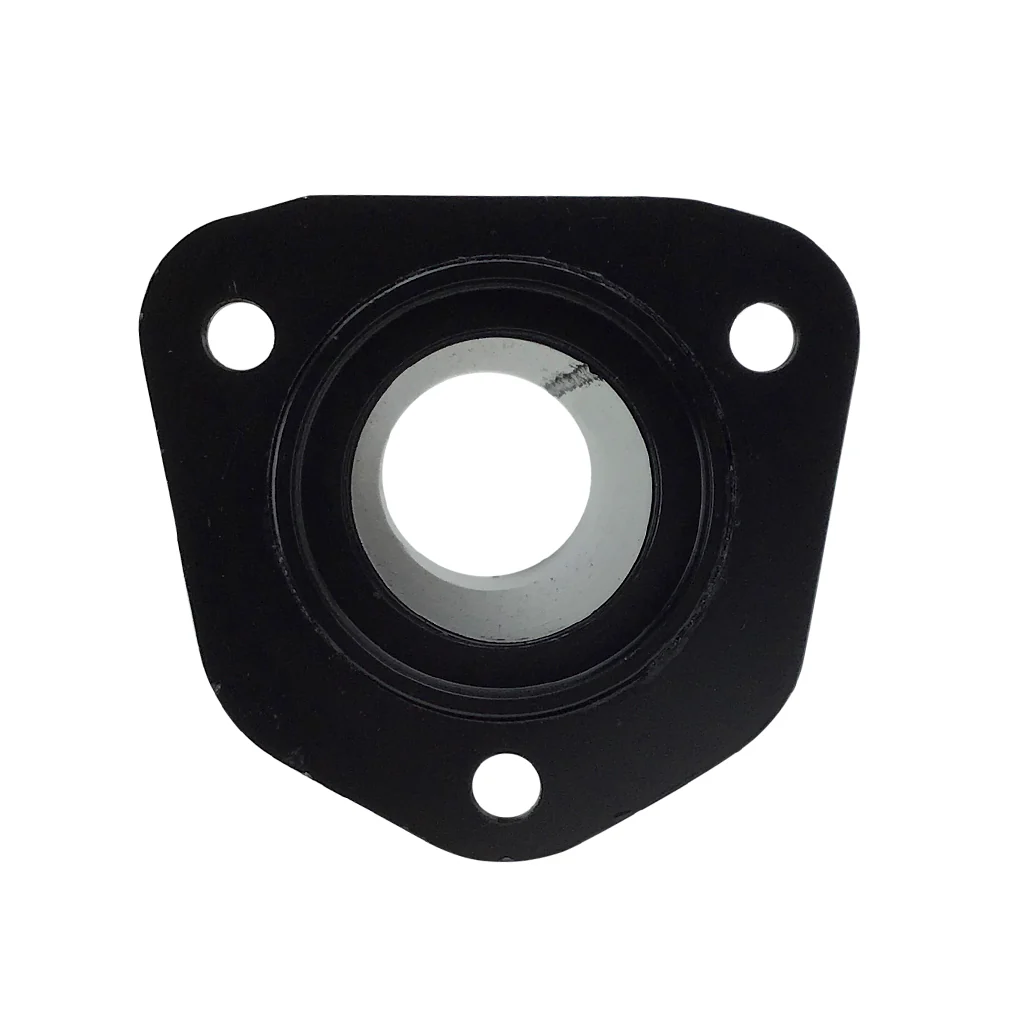

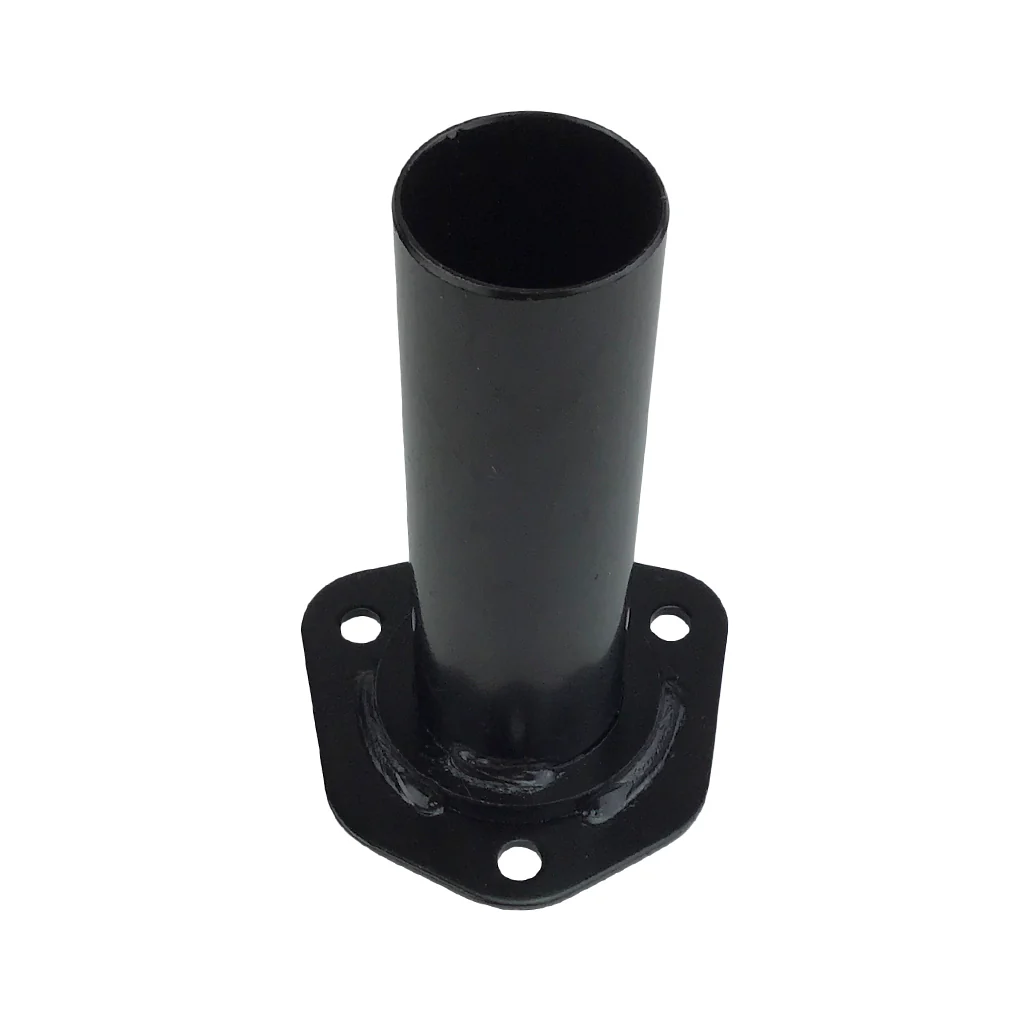

This rear wheel bearing flange is used on the Coleman KT196 go-kart.  The Chinese call it a bearing press board.  The best way to insure you are ordering the correct part is to use our detail pictures and measurements.  Please be sure to check both before ordering.

Bearing flange details:

• (3) 8mm mounting holes
• Distance between holes:  approximately 66mm (2.6 in) center-to-center apart

• Length: 136mm (5.34 in)

• OD of tube: 42mm (1.65 in)

• ID of tube: 39mm (1.54 in)

• Five sided flange

• 51392-132-0000
• 53316-400001-0000
• P400001533160000

Shipping details:

Do you need your bearing flange fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.    Buy now!
