Axle Sprocket or Brake Disc Rotor Hub - 6-Hole - 34 Spline - Tao Tao Raptor 200

Rear Axle Sprocket or Brake Disc Rotor Hub - 6-Hole - 34 Spline - Tao Tao Raptor 200, Coleman AT200-B and AT200-R

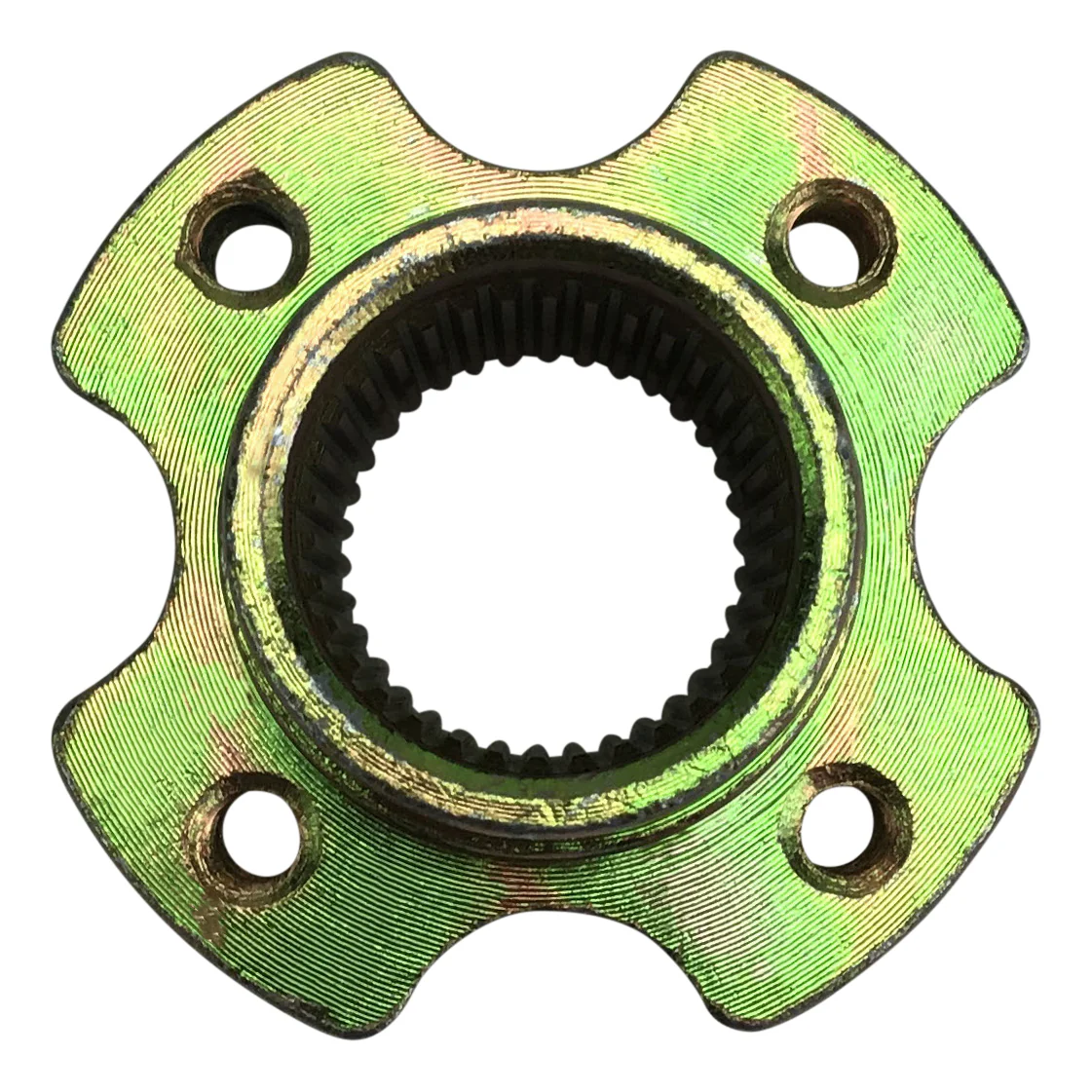

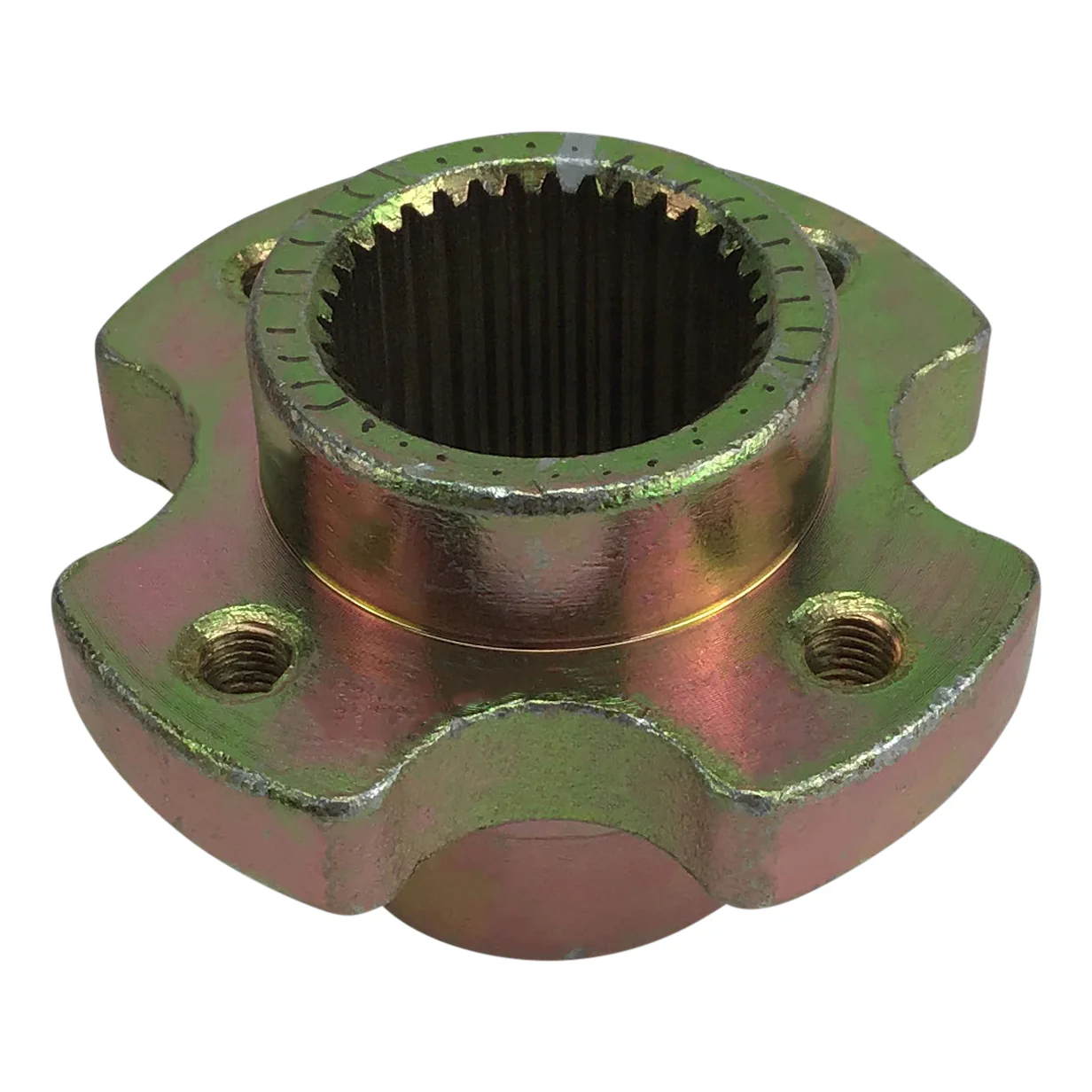

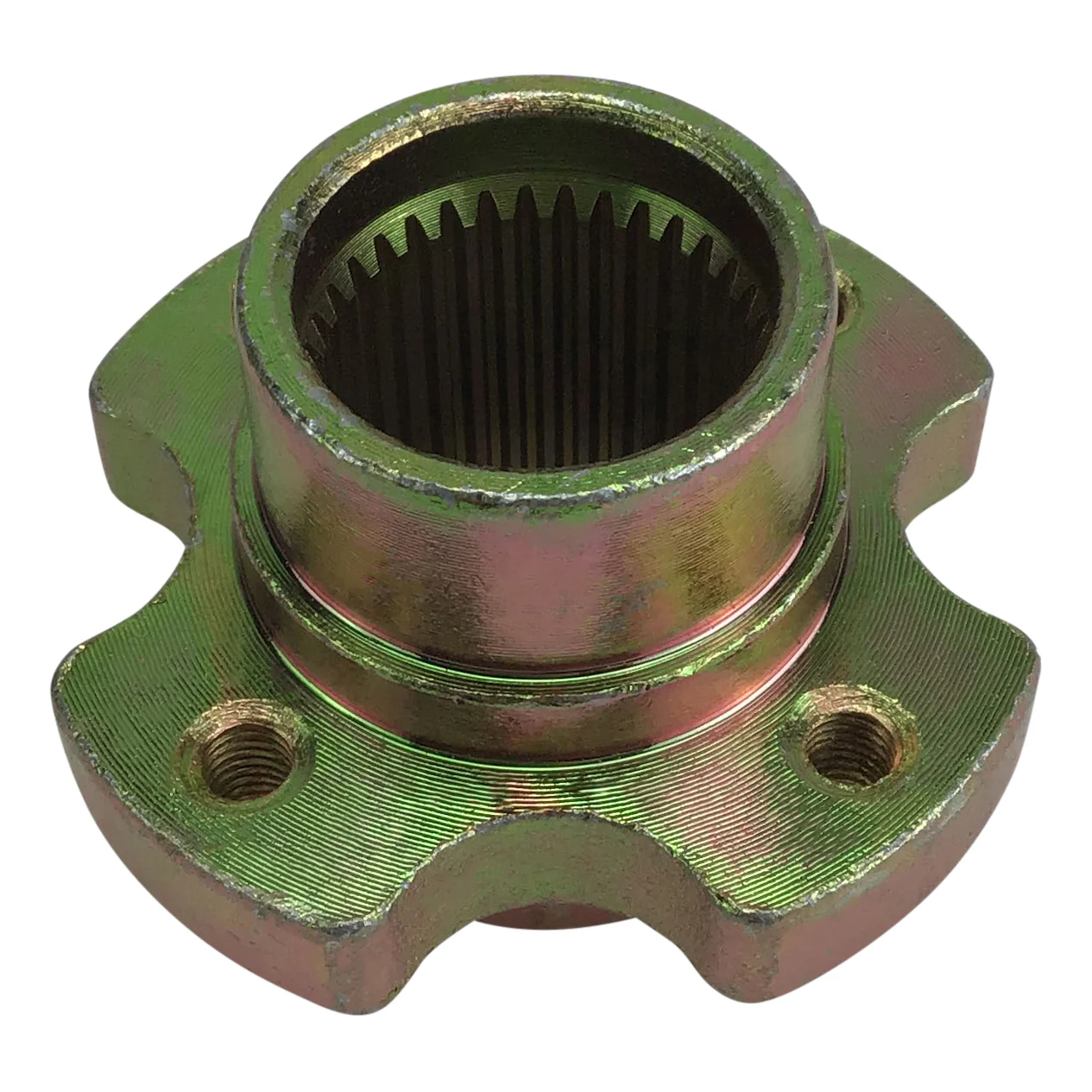

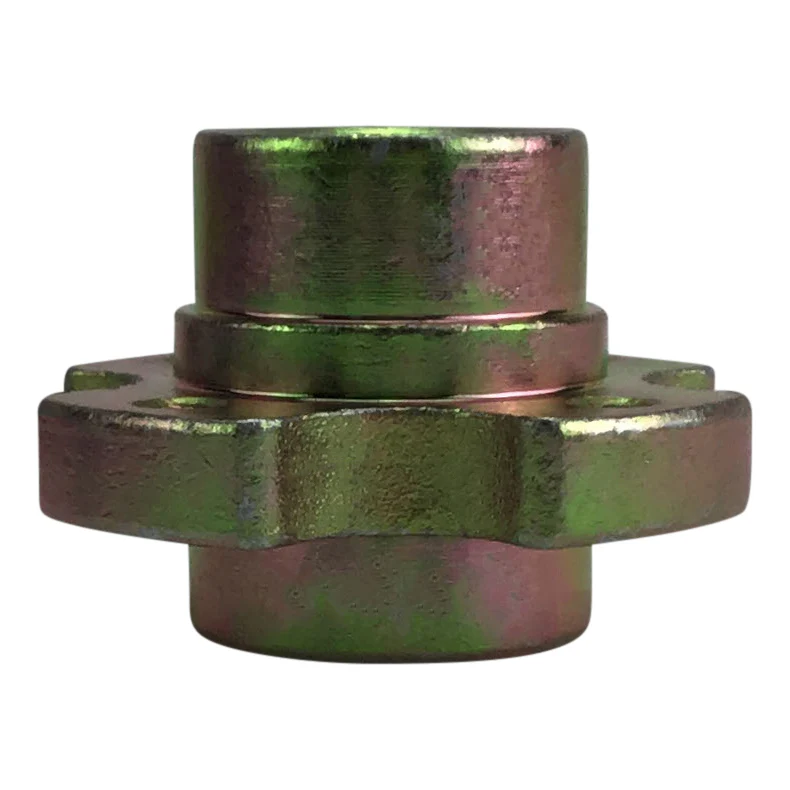

This hub is used on several makes and models of Chinese atvs.   It attaches the rear sprocket or brake disc to the rear axle.  The best way to insure you are ordering the correct part is to use our detail pictures and measurements.  Please be sure to check both before ordering.

Hub details:

• Bolt hole distance: 47mm (1.84 in) center-to-center apart
• Bolt holes are threaded 8mm*1.25
• 34 splines
• Inside diameter: 33.7mm  (1.33 in)

• Outside diameter of the flange the sprocket rides on is 49.1mm

• Length: 57mm (2.25 in)

Fits the Coleman AT200-B and AT200-R atv.

Fits the Denago Mudhawk 200 FI atv.

This wheel hub fits the Tao Tao Braves 200, Braves 200 II, Raptor 200, Shark 200 and Zanluer 200 atvs.
