Rear Sprocket - 530 - 39 Tooth - 58mm Center Hole - Hammerhead, TrailMaster

Rear Sprocket - 530-39T

This rear sprocket is used on many 150cc go-karts including Hammerhead and TrailMaster.  This sprocket has 39T and is compatible with the 530 chain ONLY.   Please look at specs and pictures before ordering.

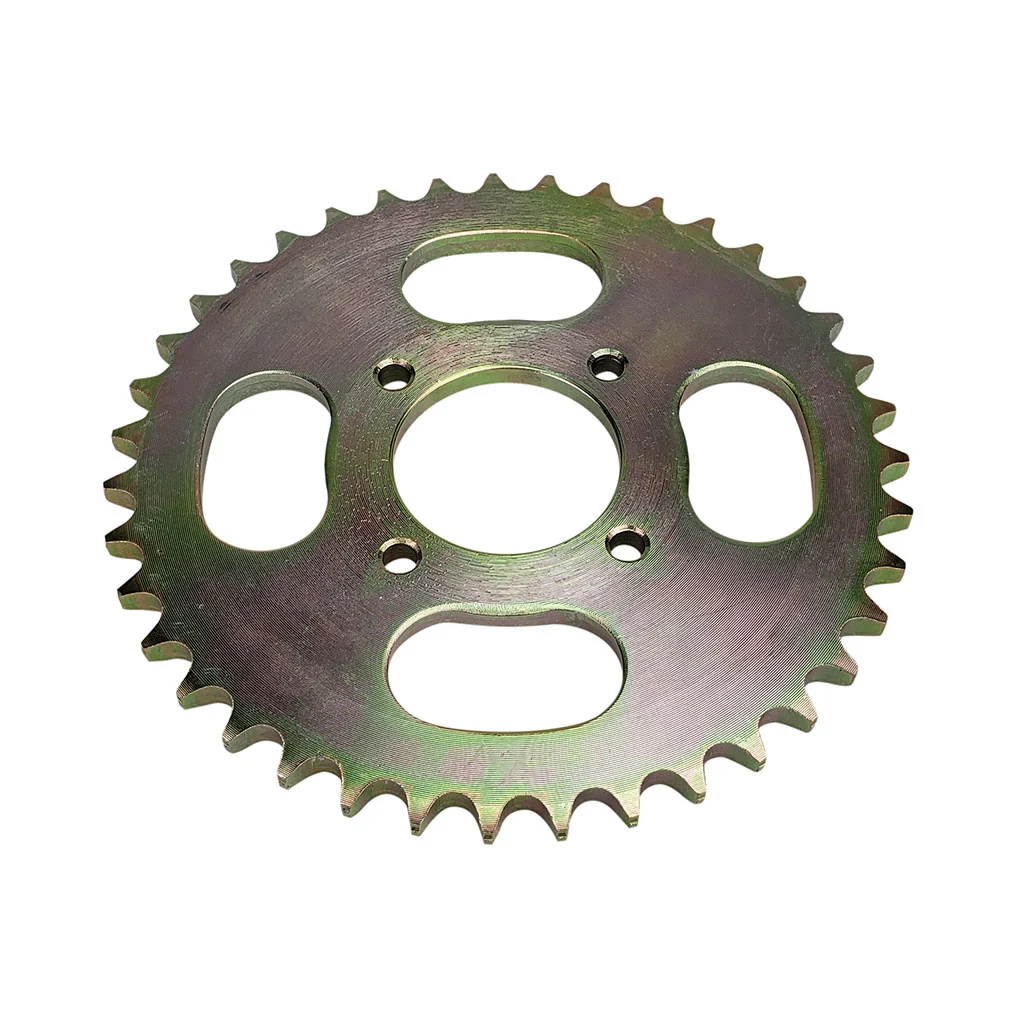

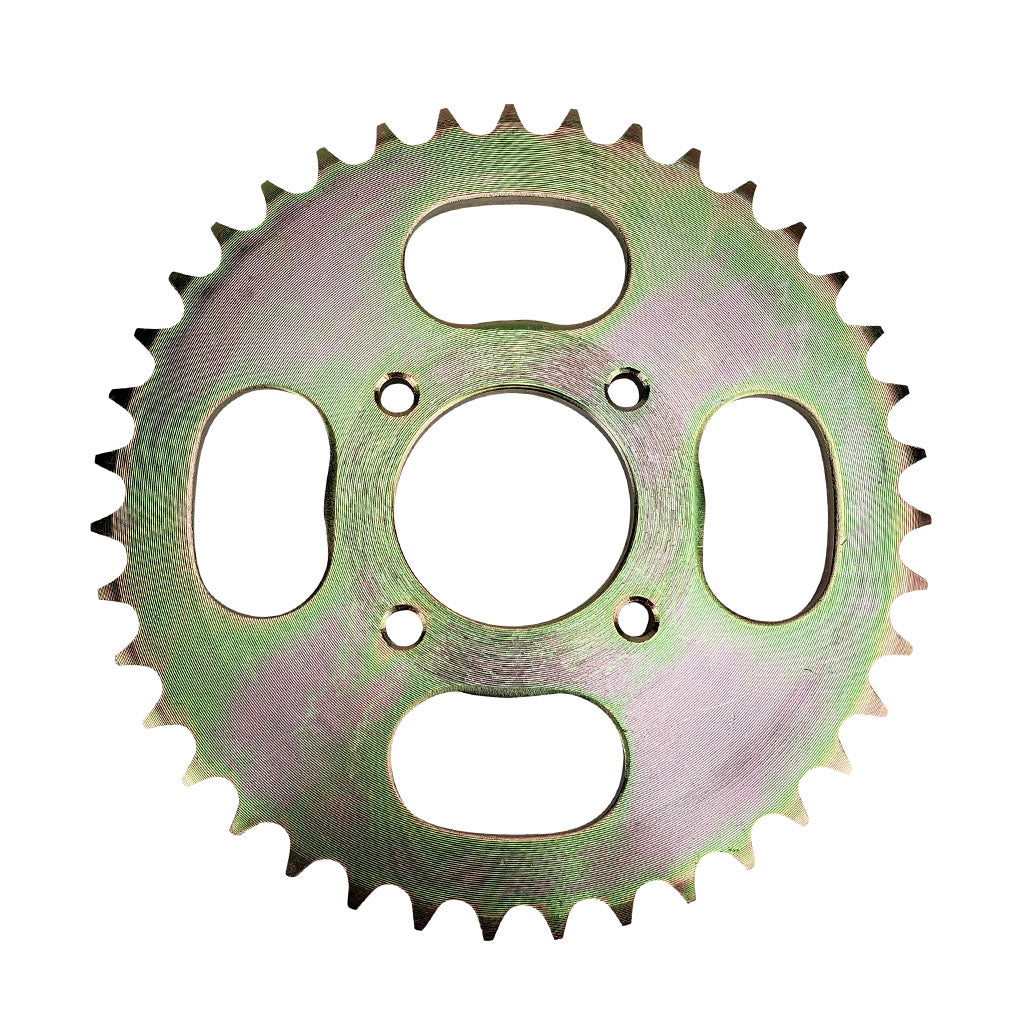

Sprocket details:

• #530 chain
• 39 Teeth
• Center hole diameter: 58mm (2.27 in)
• Four 8mm mounting holes
• 3.125 inch bolt circle / 3-1/8 inch bolt circle / 80mm bolt circle
• Mounting holes distance: 79.6mm (3.13 in) center-to-center across

• Mounting holes distance: 56.8mm (2.23 in) center-to-center adjacent
• Overall diameter: 203mm (8.0 in)
• Thickness: 9mm (0.35 in)
• 8.110.077  8.010.077
• 8110077250G000

Fits TrailMaster Blazer 150X, Blazer4 150, Cheetah 150, Cheetah 150X, Challenger UTV 150, Challenger UTV 150-X, 150 XRS, 150 XRX and 300 XRX.

Be sure to measure your chain or current sprocket before ordering.  This sprocket is typically used with go-karts to get more low end torque.
