Speedometer - Jonway YY250T Scooter - 2nd Generation

Instrument Cluster / Speedometer for Scooters

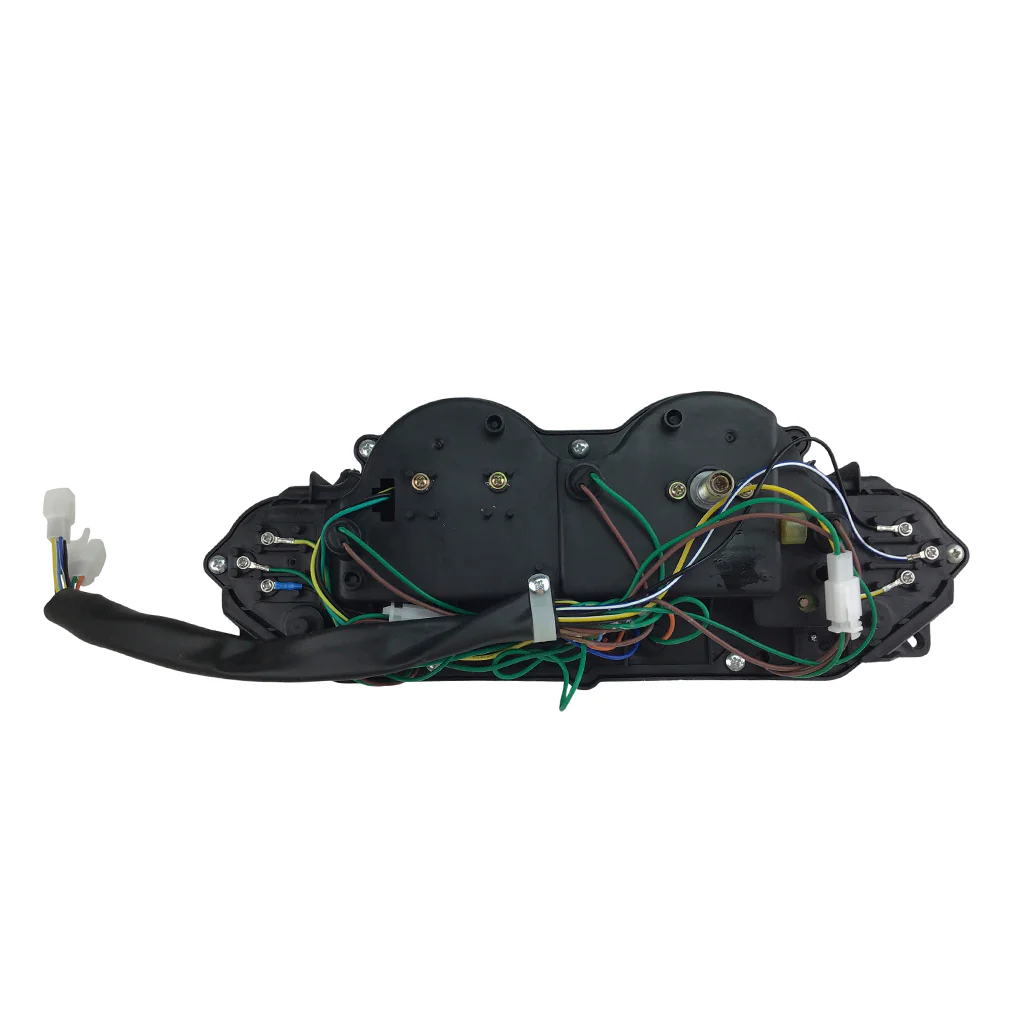

This is the second version of the YY250T scooter speedometer that we have had.  The first one had 10 wires in 2 plugs plus a lead.  This one has 9 wires in 2 plugs plus a lead.  There aren't a lot of differences but there are some tiny ones.  I don't know if these will fit the older model with the additional wire.  Please look at pictures and description carefully before ordering.

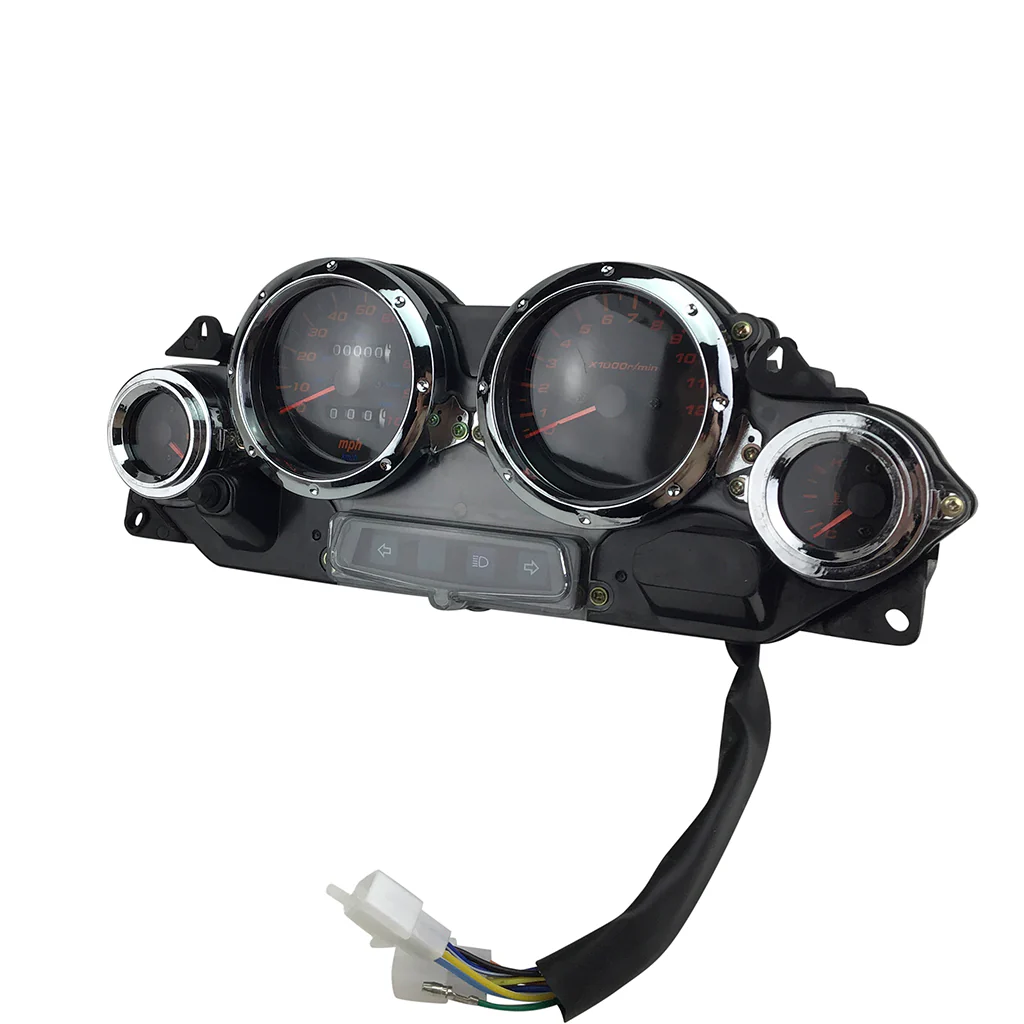

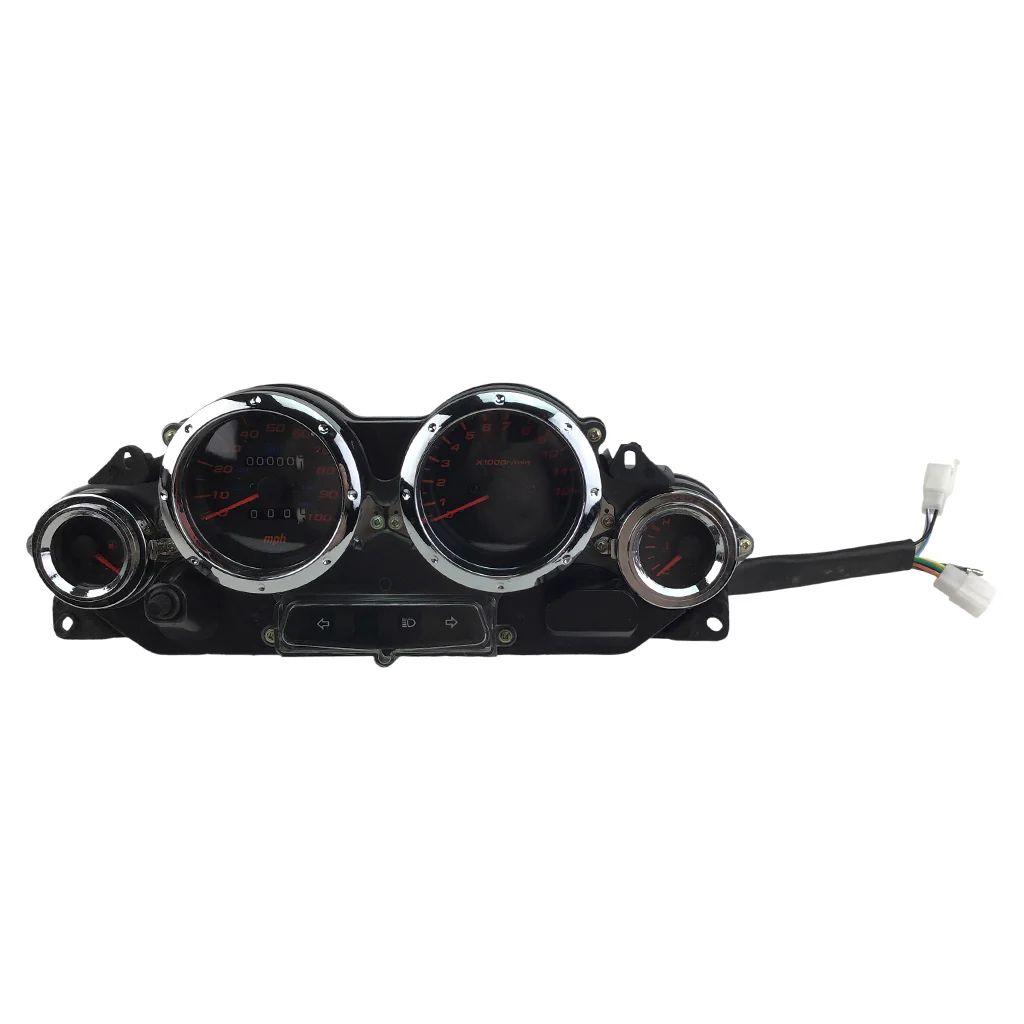

Instrument Cluster details:

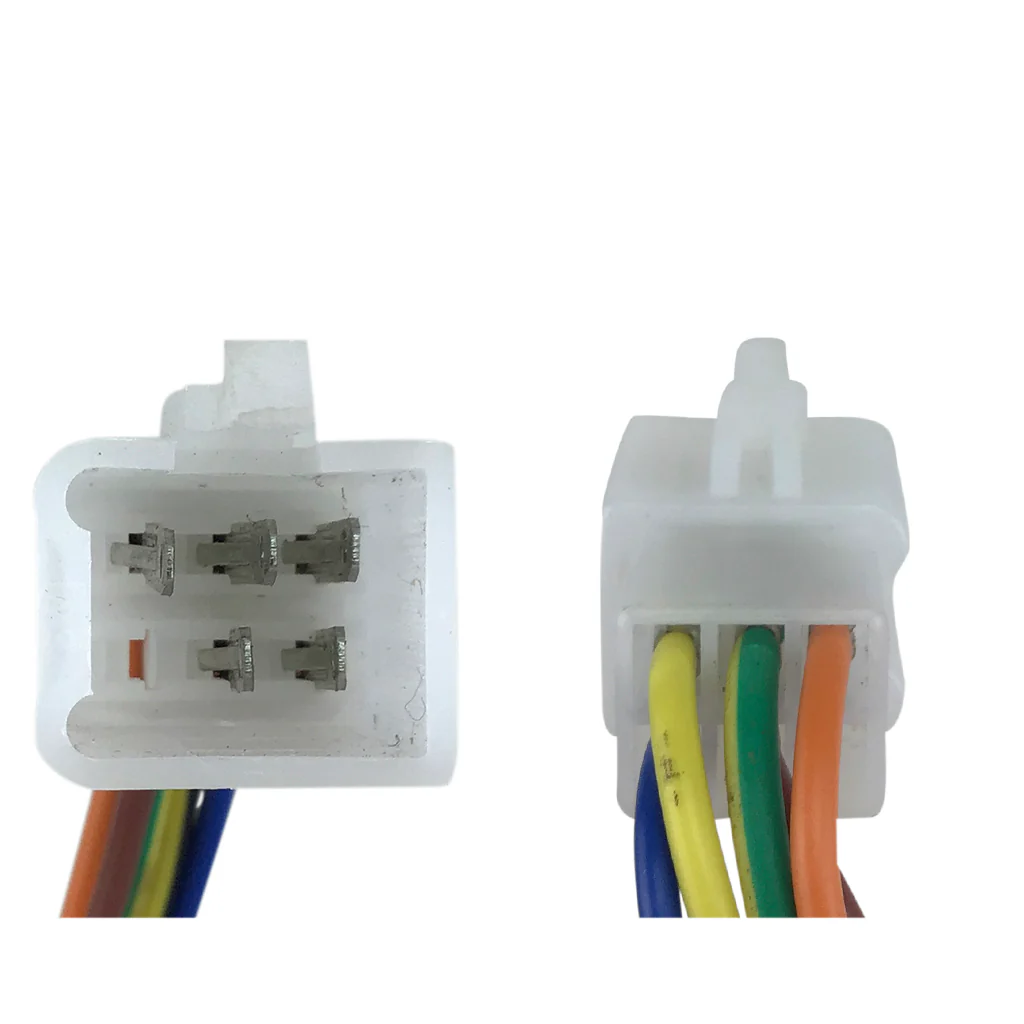

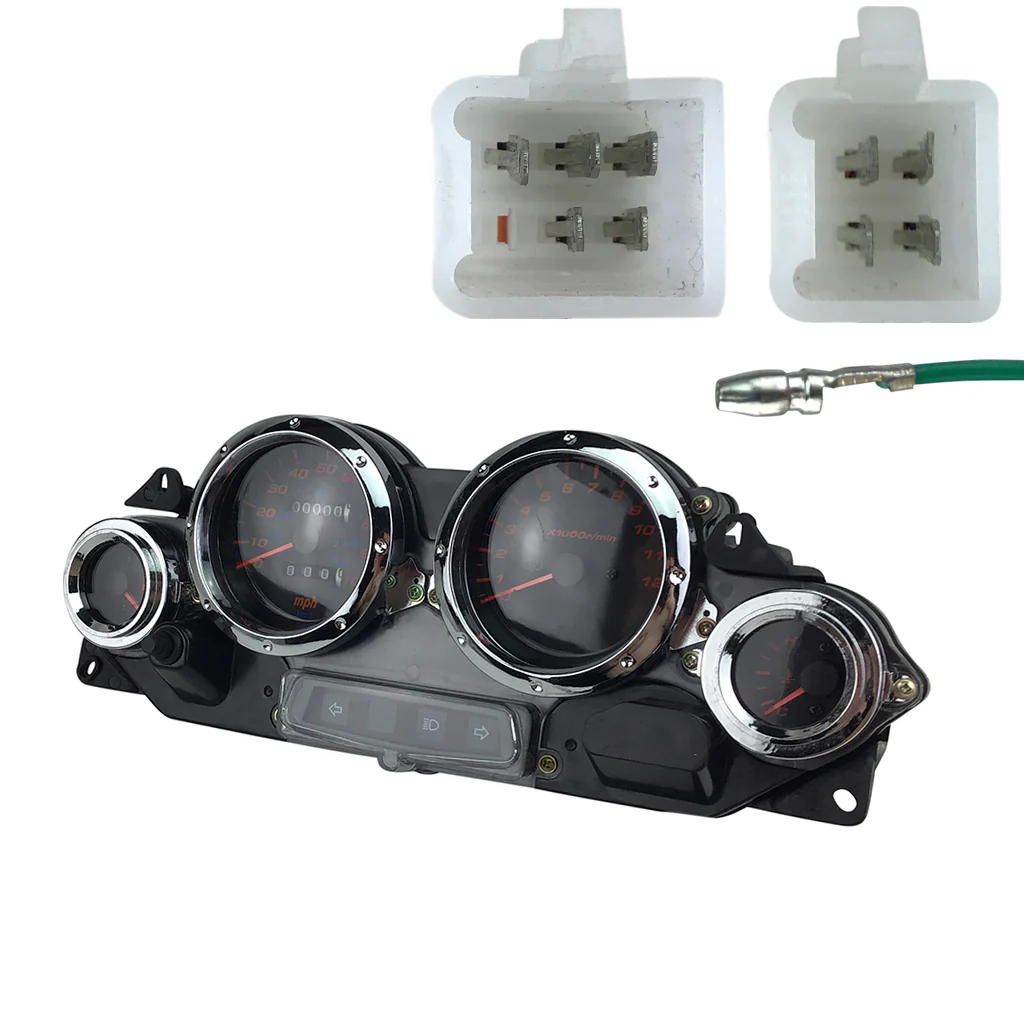

• 6 position male plug with 5 wires

• 4-wire male plug
• Single lead
• Speedometer 0-100 mph
• Tachometer 0-12000 rotations per minute
• Odometer
• Fuel gauge
• Temperature gauge
• Turn signal indicator
• Hi beam indicator
• Mounting tabs on the top and bottom.  One on each side.
• Chrome bezels around speedometer and tachometer
• YYZX25021001

Known to fit the Jonway Ranger 250 and the YY250T scooters.
