Wheel Hub - Front - Go-Kart - 110cc-250cc ATV Go-Kart - Version 17

Go-Kart ATV Wheel Hub - Version 17

Version 17

This wheel hub is used on several makes and models of Chinese atvs and go-karts. The best way to insure you are ordering the correct part is to use our detail pictures and measurements.  Please be sure to check both before ordering.

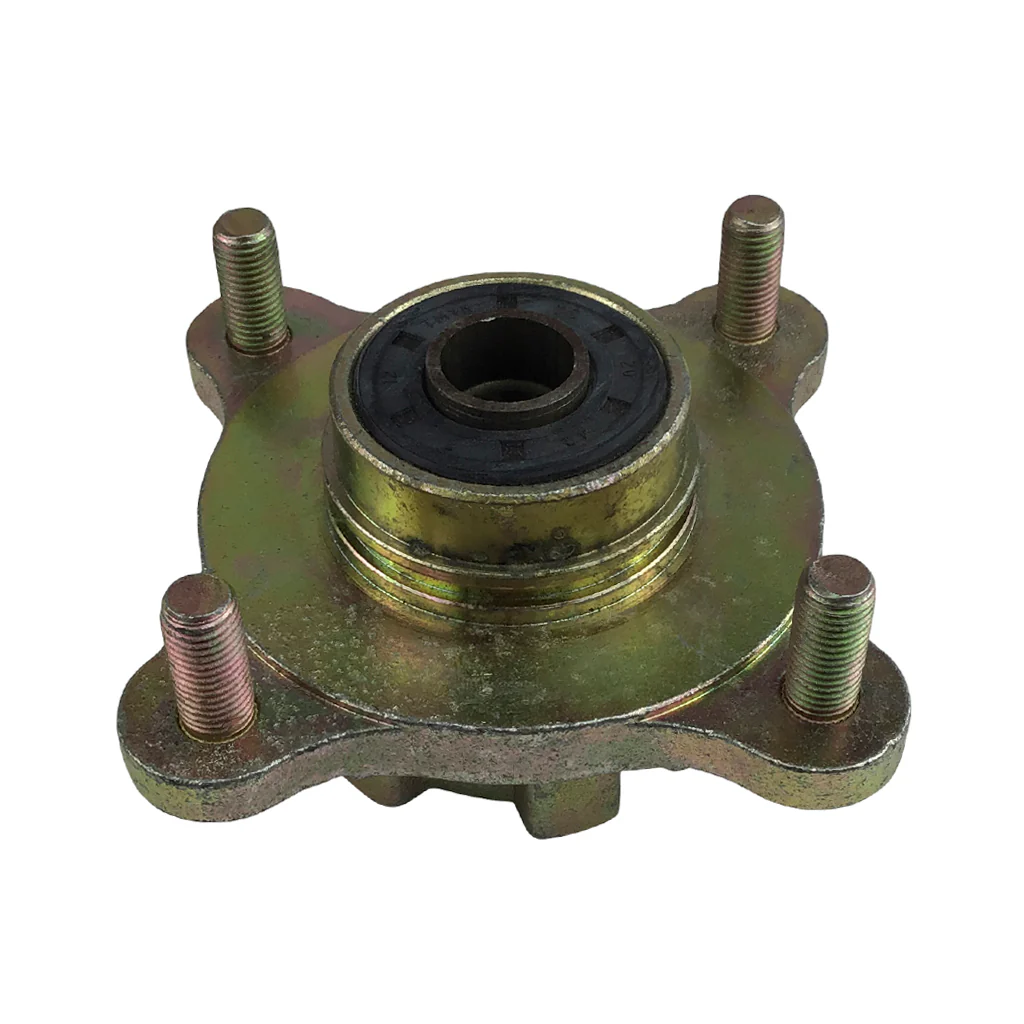

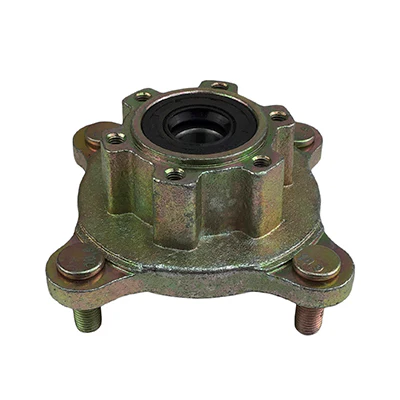

Hub details:

• (4) 10mm studs
• Studs are 78mm (3.07 in) apart center-to-center
• Studs are 110mm (4.33 in) apart center-to-center across
• (6) 6mm*1.00 threaded bolt holes
• Threaded holes are 29mm (1.14 in) center-to-center side-by-side
• Threaded holes are 58mm (2.28 in) center-to-center across from each other
• Sleeve on stud side 17.8mm (0.70 in) inside diameter

• 22*40*7 seal on 6 bolt hole side
• 20*42*7 seal on stud side
• Width: 62mm (2.45 in) (hub only)


Be sure to check your hub measurements with the above measurements to be sure you are getting the correct part.

Shipping details:

Do you need your hub fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!
