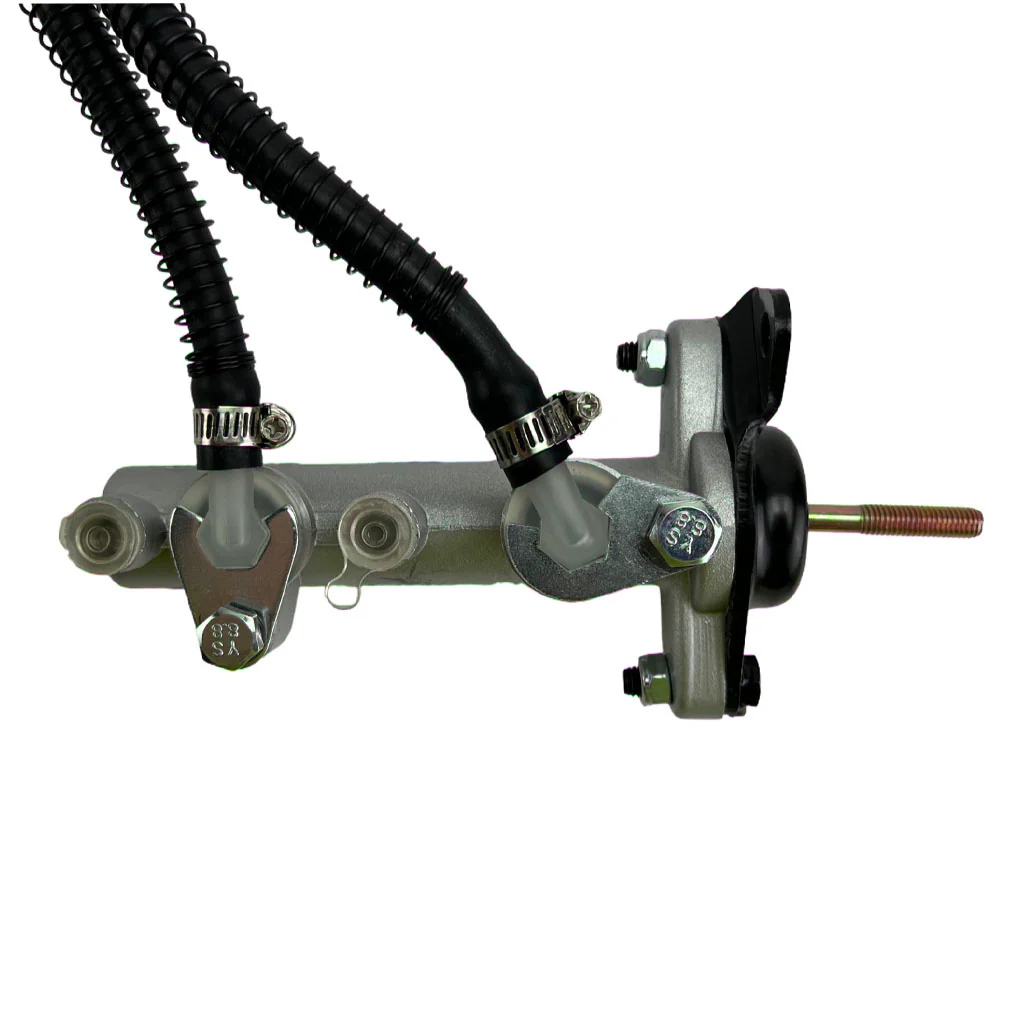

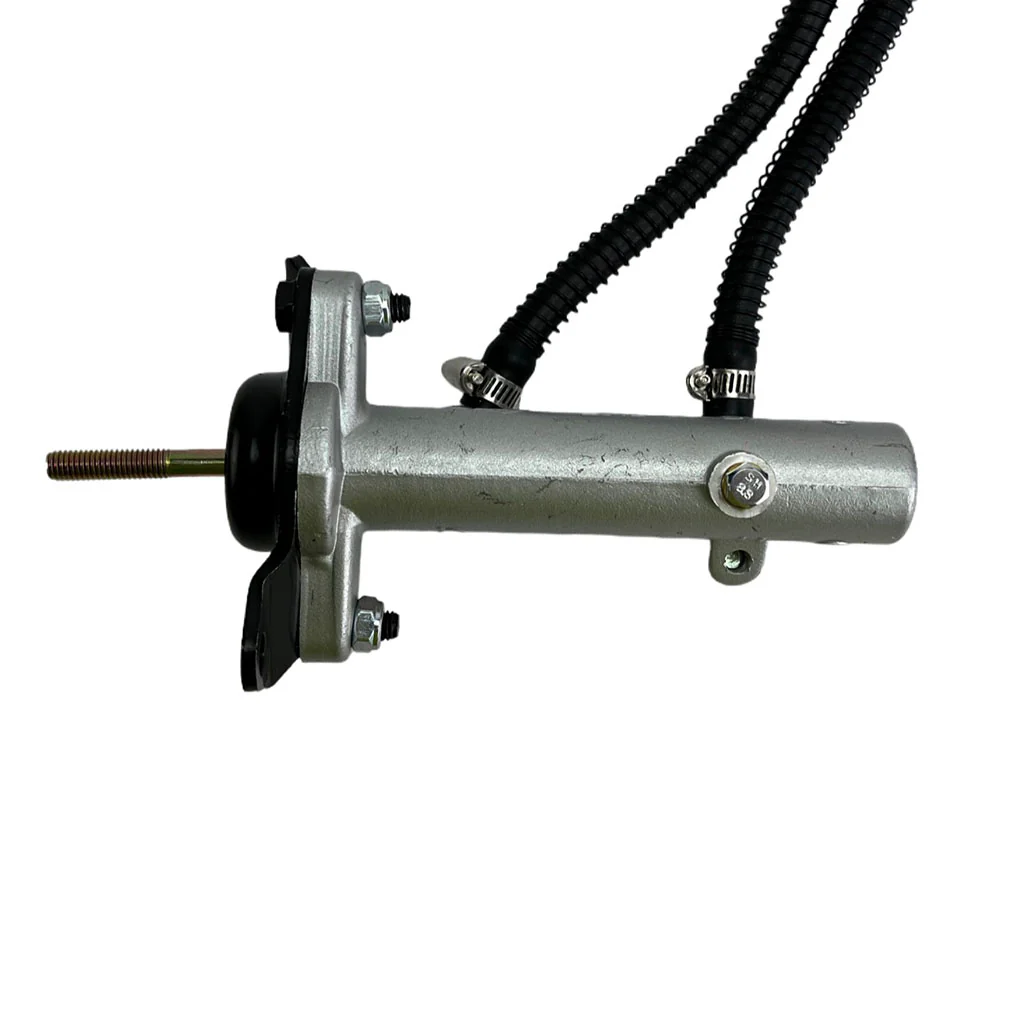

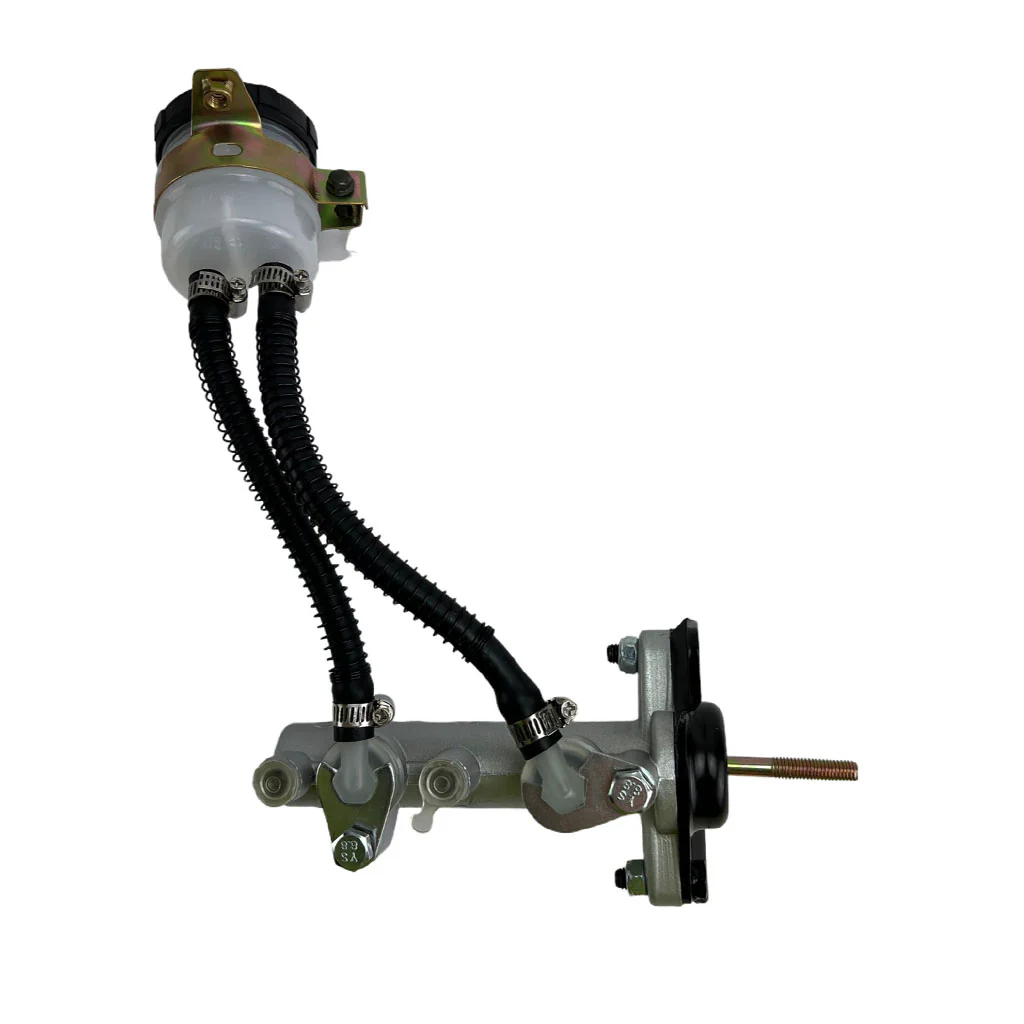

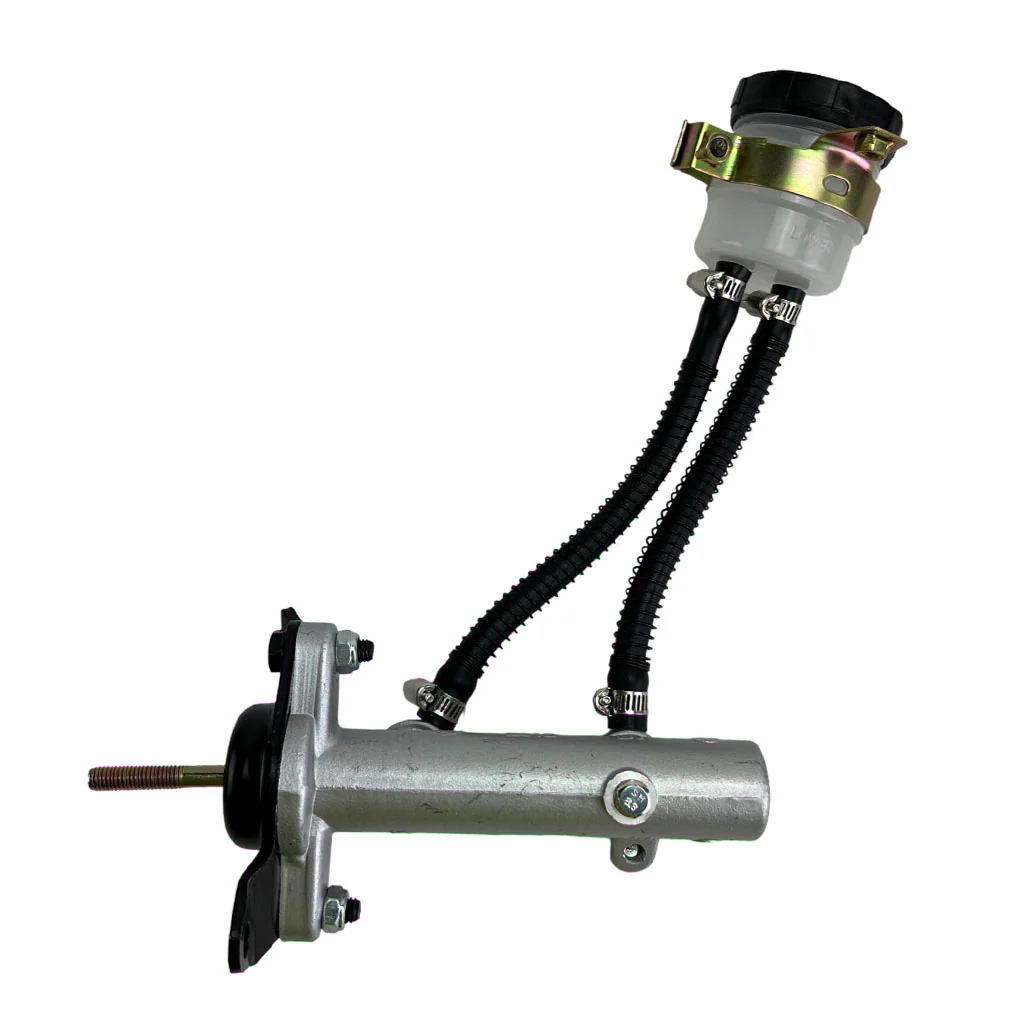

Brake Master Cylinder / Brake Pump - HiSun, Bennche, Menards, etc. UTV

Brake Master Cylinder / Brake Pump for HiSun, Bennche, Menards

UTV Brake Master Cylinder / Brake Pump for Hisun 500cc 700cc and 800cc.  Used on both EFI and carbureted engines.  This does not fit the new bench seat HiSuns, 2015 and newer.

Specs:

• Mounting holes - center to center - 45mm (1 3/4 in)

• Length - 168mm (6 5/8 in) includes bracket but no piston.
• 8mm*1.25*45mm threaded piston shaft
• Approx 8.0 inch dual brake fluid line to reservoir.
• Mounting bracket on reservoir bolt holes are 91mm (3.6 in) apart center-to-center
• Mounting bracket on cylinder bolt holes are 100mm (3.9 in) apart center-to-center
• Includes reservoir, cap and boot.
• Wire guard on fluid lines
• Used DOT3 or DOT4 brake fluid.

Know to fit HiSun, Bennche, Big Muddy, Coleman, Massimo, Super Mach, Yardsport, Q Link and more!  Please see pictures, measurements and description to determine correct fit.
