Stator Magneto with Matching Flywheel - 8 Coil - 150cc 200cc 250cc

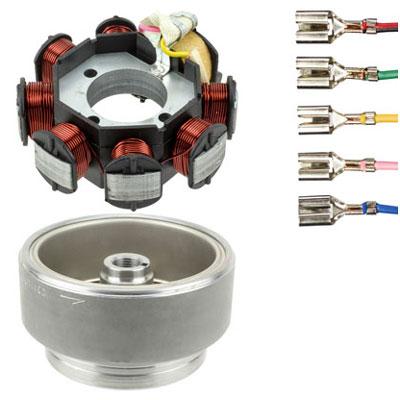

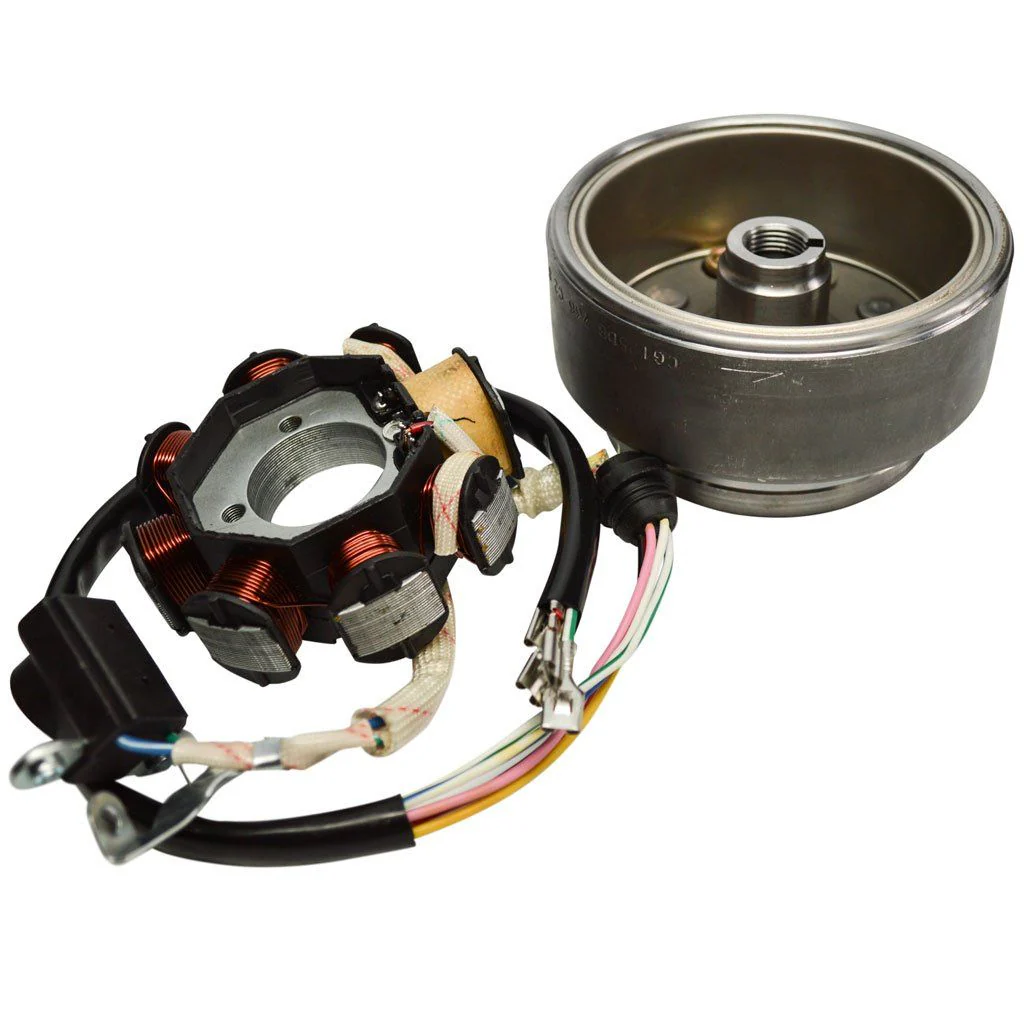

Chinese 8-Coil Stator Magneto with Matching Flywheel for 150cc, 200cc & 250cc Engines

This Chinese stator magneto with flywheel is the replacement part for many 4-stroke Chinese atvs, dirt bikes, go-karts and scooters. This stator fits 150cc - 250cc models.

Stator description:

• 8 coil - 1 wrapped
• 5 wires - 45cm (17.75 in) overall length
• 2 or 3 bolt mounting
• Pick up trigger - 2 wire
• Center hole measurement: 32mm (1.26 in)

• Overall measurement:  88.6mm (3.49 in)

• Single coil height: 28.7mm (1.13 in)

• Wrapped coil height: 32.7mm (1.29 in)

• Mounting measurement: center-to-center across 40mm (1.575 in)

• Mounting measurement: center-to-center diagonally 28.5mm (1.125 in)

• Compatible with most 150-250cc vertical with manual clutch

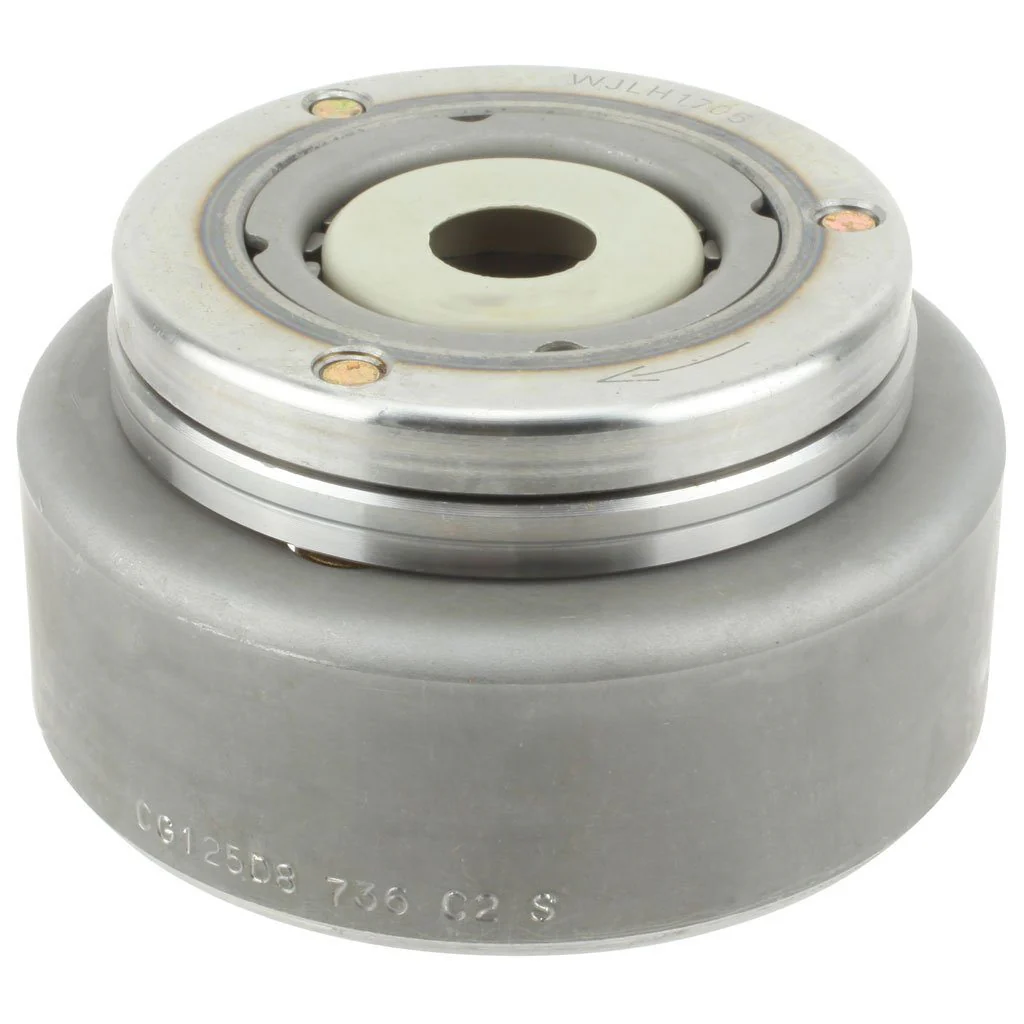

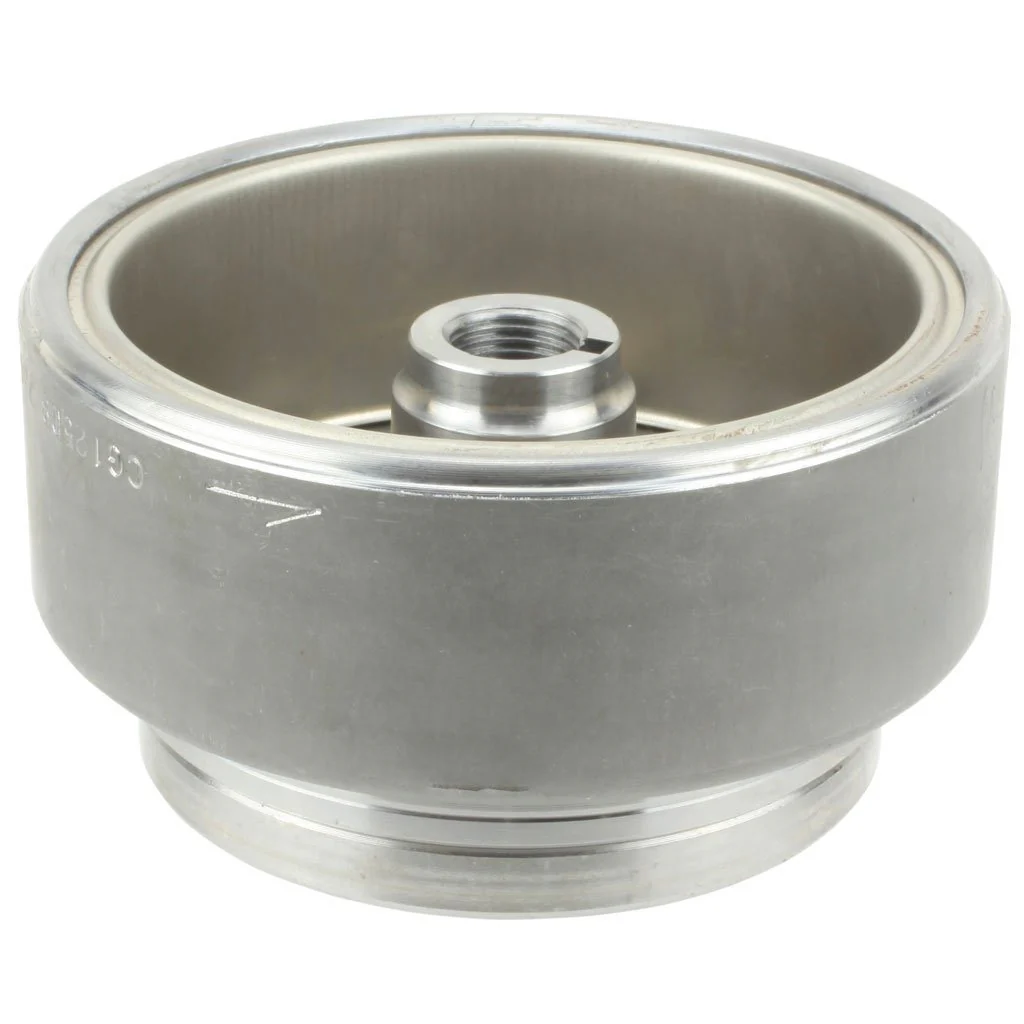

Flywheel description:

• Height: 59.6mm (2.35 in)

• Outside height of brass: 40.7mm (1.60 in)

• Overall OD including "tab": 113.9mm (4.48 in)

• Overall OD not including tab: 111mm (4.37 in)

• ID of magnetic area: 90.3mm (3.55 in)

• OD of inside hole: 28.2mm (1.11 in)

• ID of inside hole: 14.5mm (0.57 in)

• Cutout flywheel key notch.
• Fits 8 Coil stator only.

Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!

Electrical parts are not returnable.  Please double check before ordering.
