Stator Magneto -12 Coil - Jianshe Yamaha JY110 Crypton - Version 42

Chinese 12 Coil Stator Magneto for Yamaha 110cc Style Scooters.

Version 42

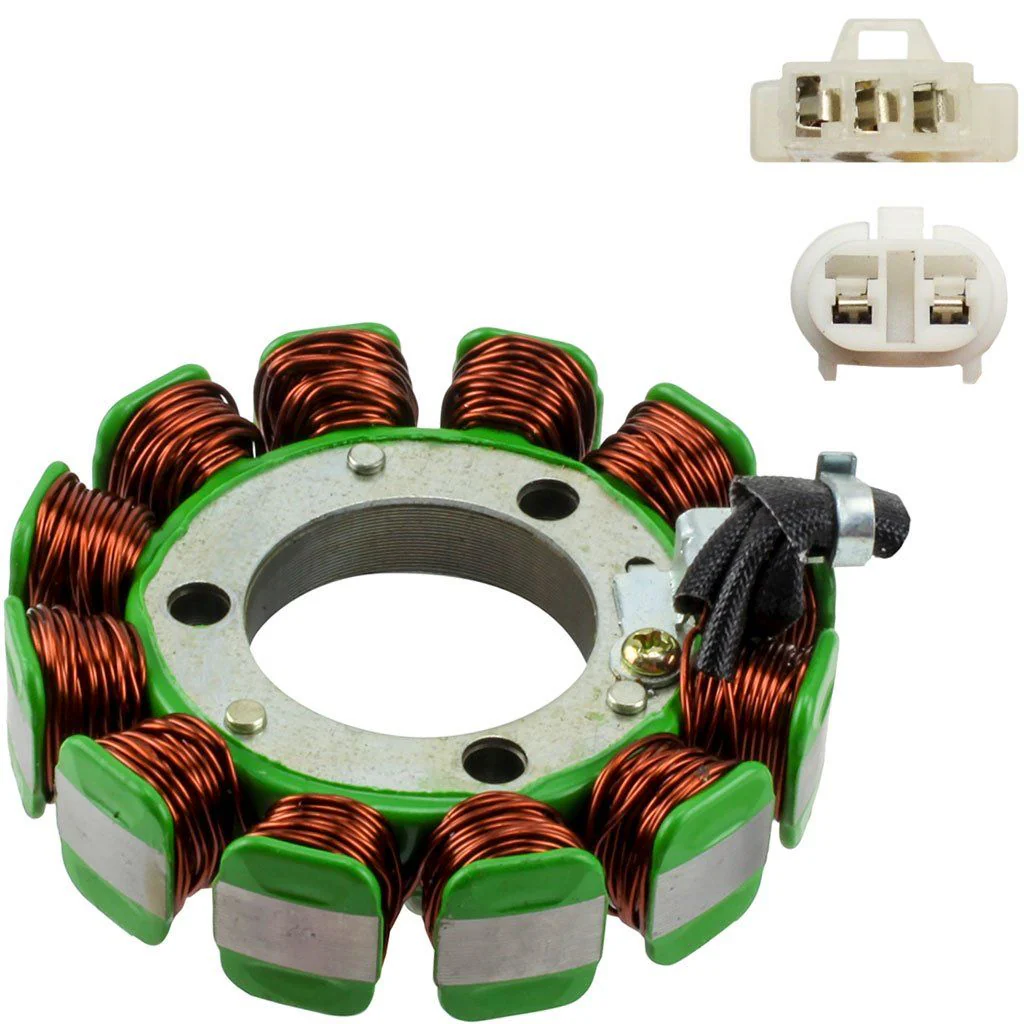

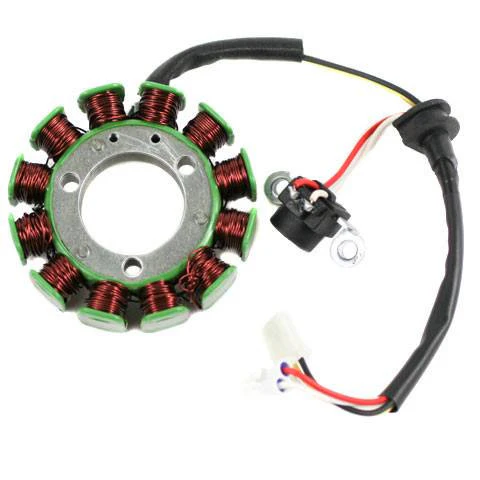

This Chinese stator magneto is the replacement part for many 4-stroke Chinese Jianshe Crypton and Yamaha JY110 scooters.  The stator recharges the battery while the machine is in use, like an alternator in a car.  Please check pictures and description before ordering.

Stator description:

• 12 coil

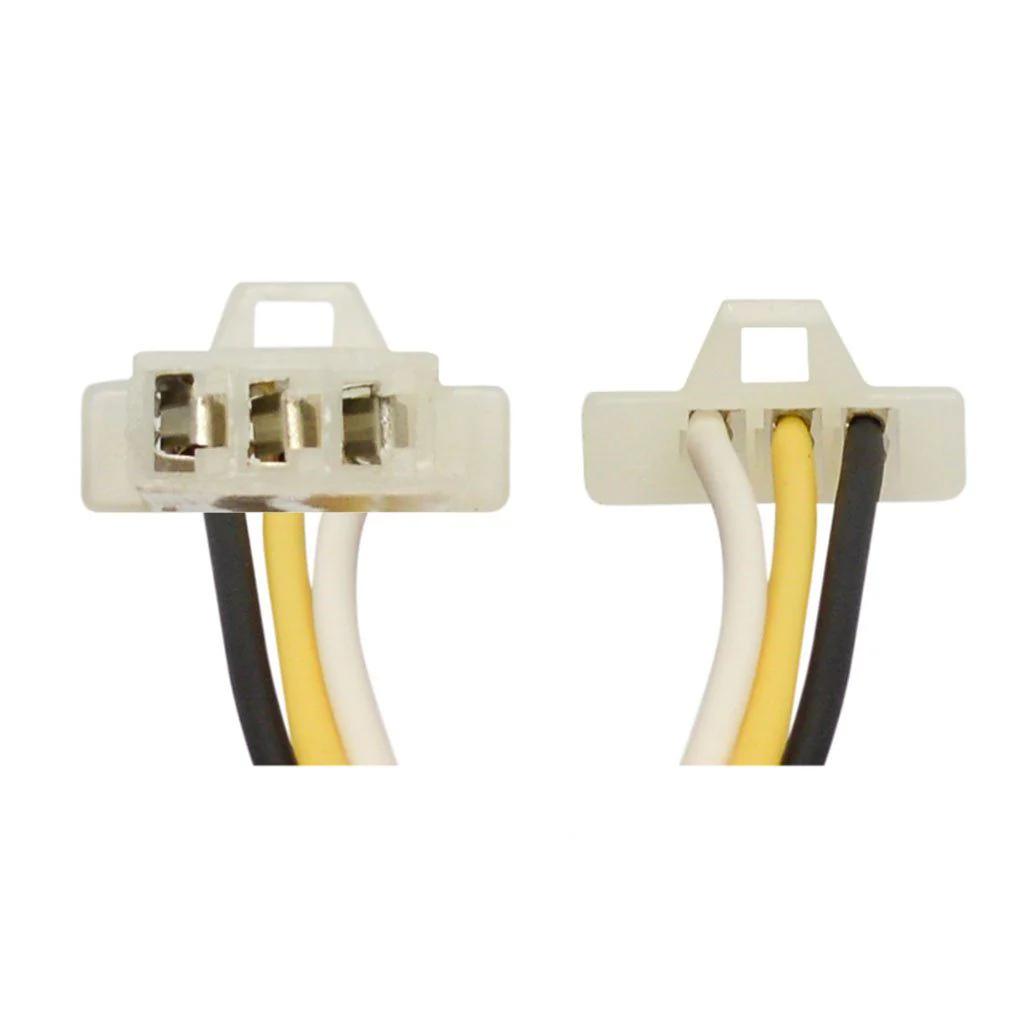

• 5 wires - 3 wire plug, 2 wire plug from pickup trigger
• 3 bolt mounting: 38mm

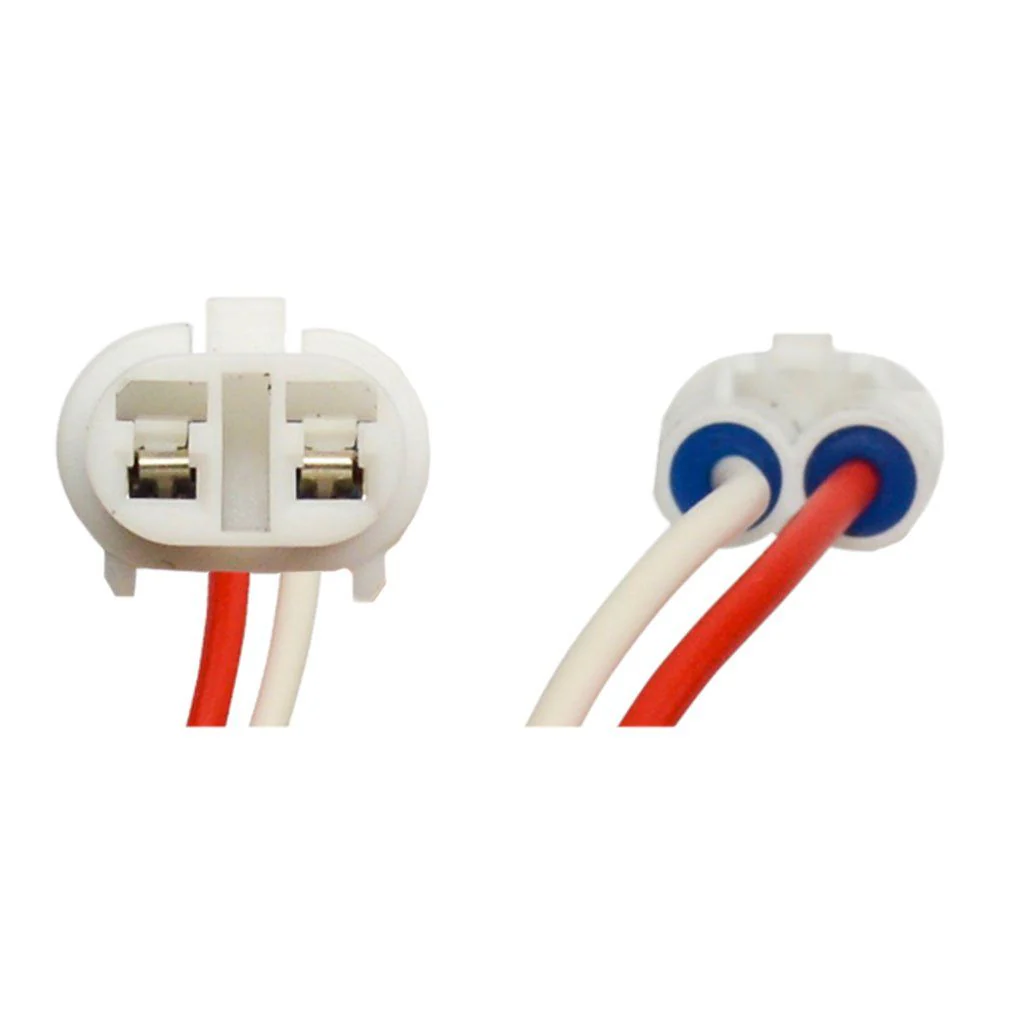

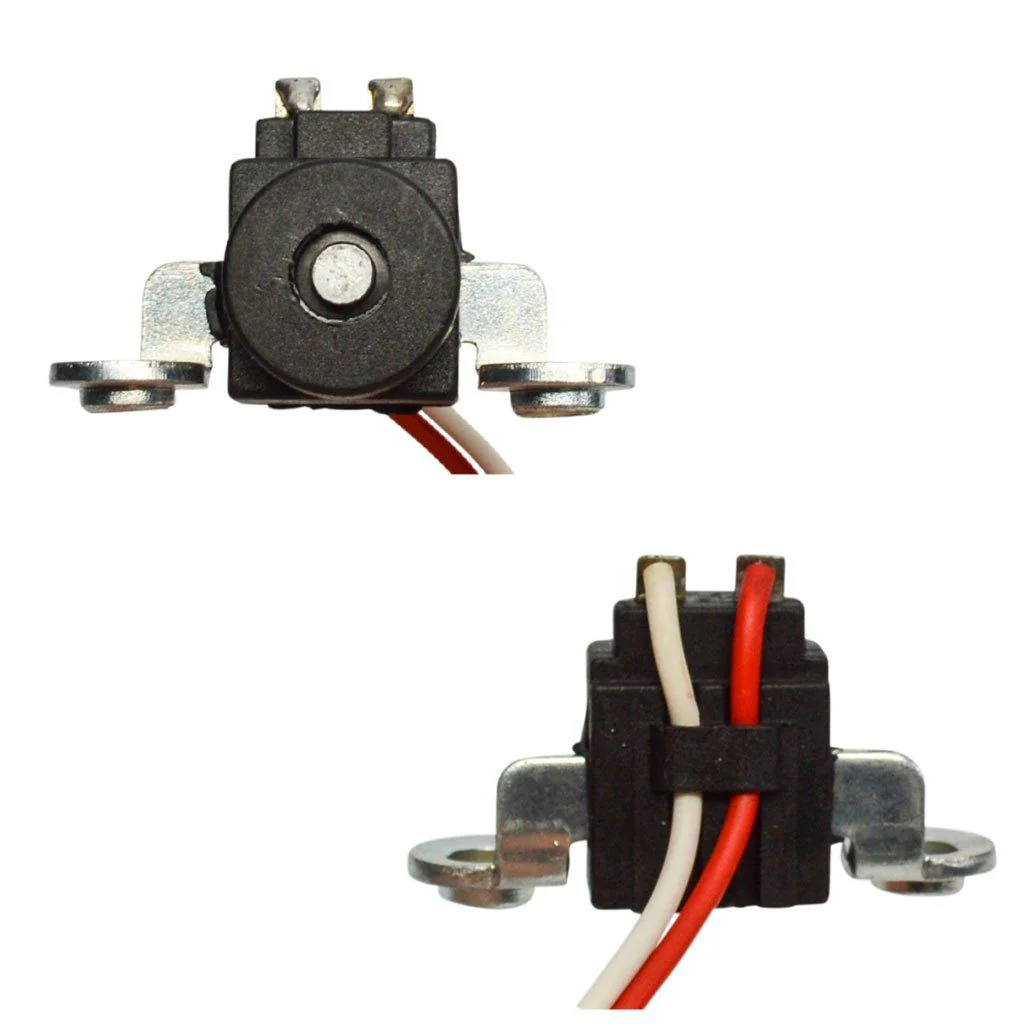

• Pick up trigger wire - 2 wire
• Center hole measurement:  37mm approximately
• Overall measurement: 88.5mm approximately
• Single coil height: 22.5mm approximately
• Mounting measurement: center-to-center diagonally:  38mm

Shipping details:

Do you need your stator magneto fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!

Electrical parts are not returnable.  Please double check before ordering.
