Chain - 25H - 100 Links

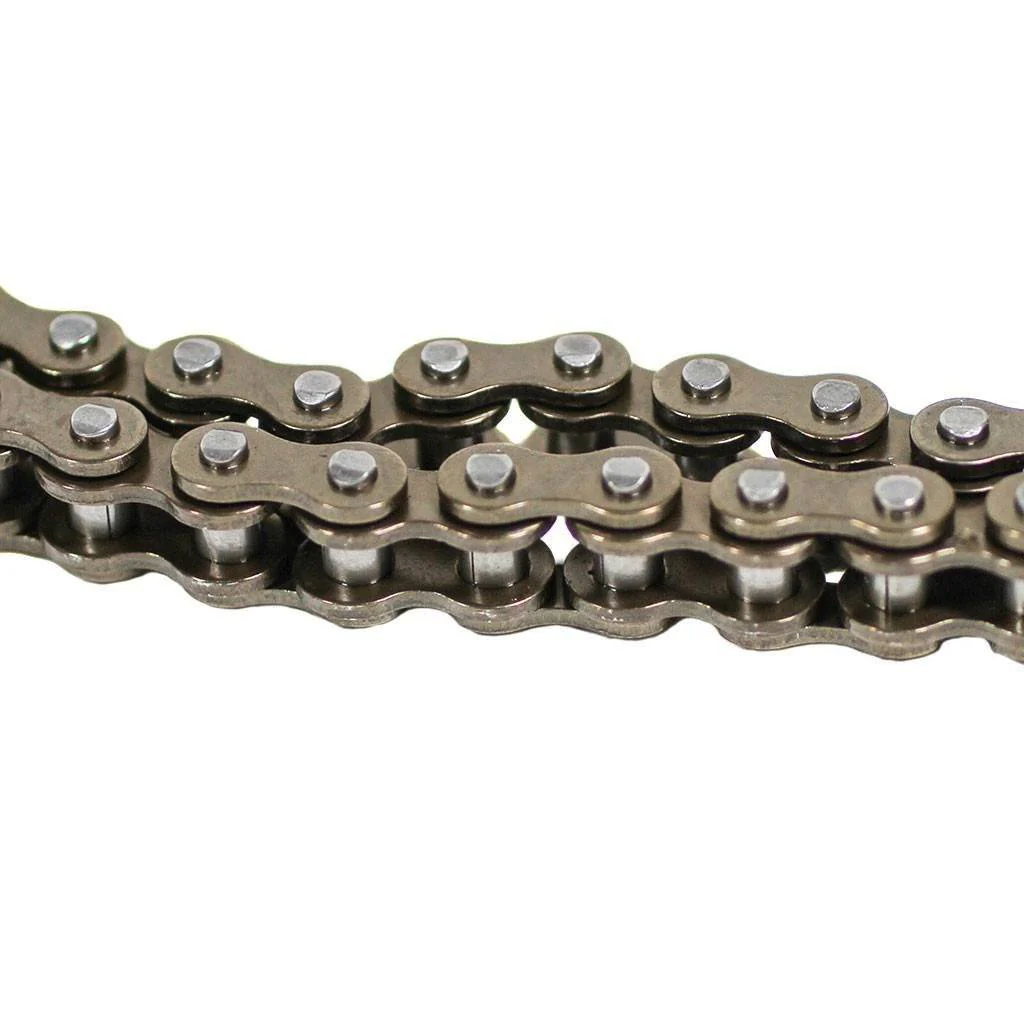

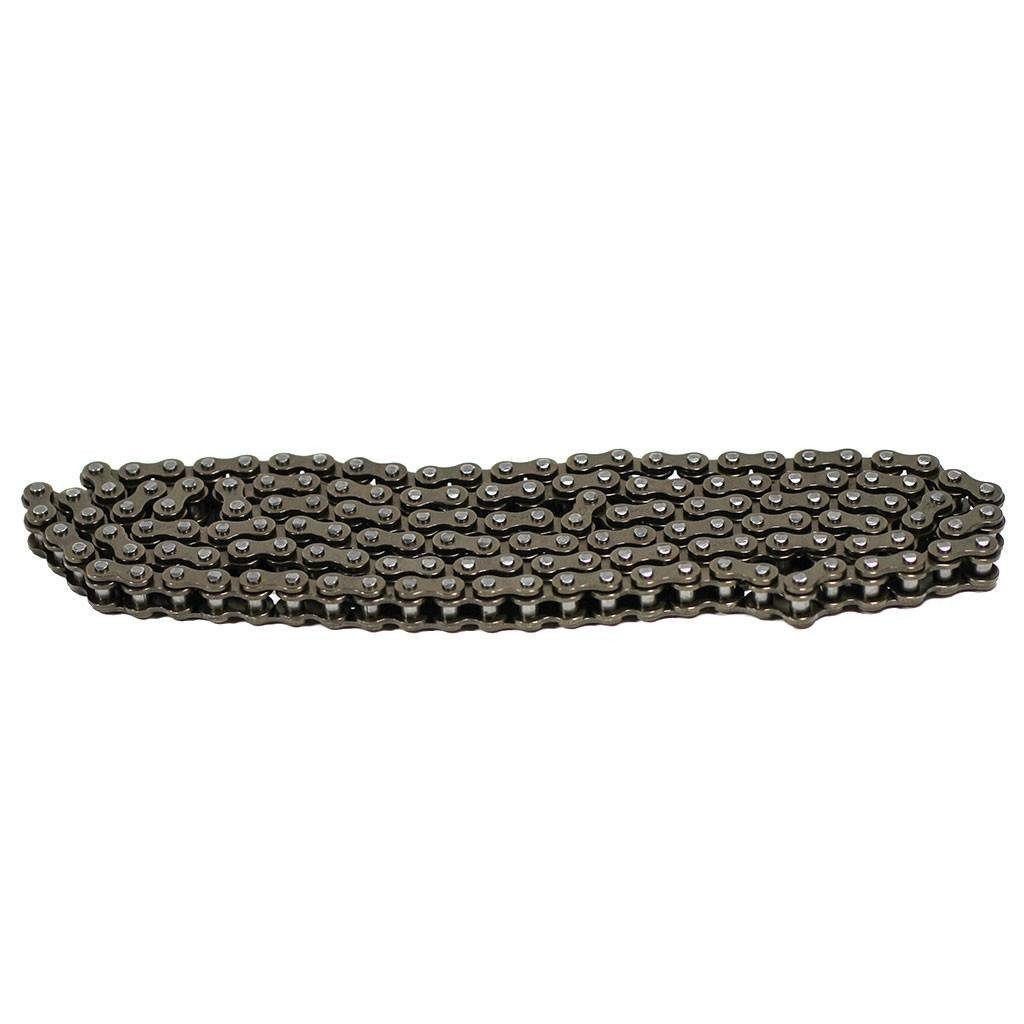

Standard Drive ChainĀ 25H - 100 Links
This ATV drive chain measurements are:
- Chain Pitch [distance from pin to pin]: Ā 6.35mm (1/4 in)
- Roller diameter: 3.3mm (0.130 in)
IMPORTANT NOTE: This size chain is the smallest chain we carry for the kids atvs, dirtĀ bikes etc. Mainly used on the smaller frame sizeĀ 47cc 49c pocket bikes, dirt bikes, electric scooters, mini choppers, etc.
- 100Ā Links - 50 inner and 50 outer
- 25Ā 1/2 inches long
- No master link
Some of the front drive sprockets will have numbers on them which identify exactly what chain number is used.
The #25 and #25H are interchangeable and will run on the same sprockets. The H means heavy duty and the chain has thicker heavier side plates.
Other sizes will not interchange with drive sprockets.
Original: $12.95
-65%$12.95
$4.53Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Standard Drive ChainĀ 25H - 100 Links
This ATV drive chain measurements are:
- Chain Pitch [distance from pin to pin]: Ā 6.35mm (1/4 in)
- Roller diameter: 3.3mm (0.130 in)
IMPORTANT NOTE: This size chain is the smallest chain we carry for the kids atvs, dirtĀ bikes etc. Mainly used on the smaller frame sizeĀ 47cc 49c pocket bikes, dirt bikes, electric scooters, mini choppers, etc.
- 100Ā Links - 50 inner and 50 outer
- 25Ā 1/2 inches long
- No master link
Some of the front drive sprockets will have numbers on them which identify exactly what chain number is used.
The #25 and #25H are interchangeable and will run on the same sprockets. The H means heavy duty and the chain has thicker heavier side plates.
Other sizes will not interchange with drive sprockets.
