Tail Light - Scooter - Jonway 150T-12A

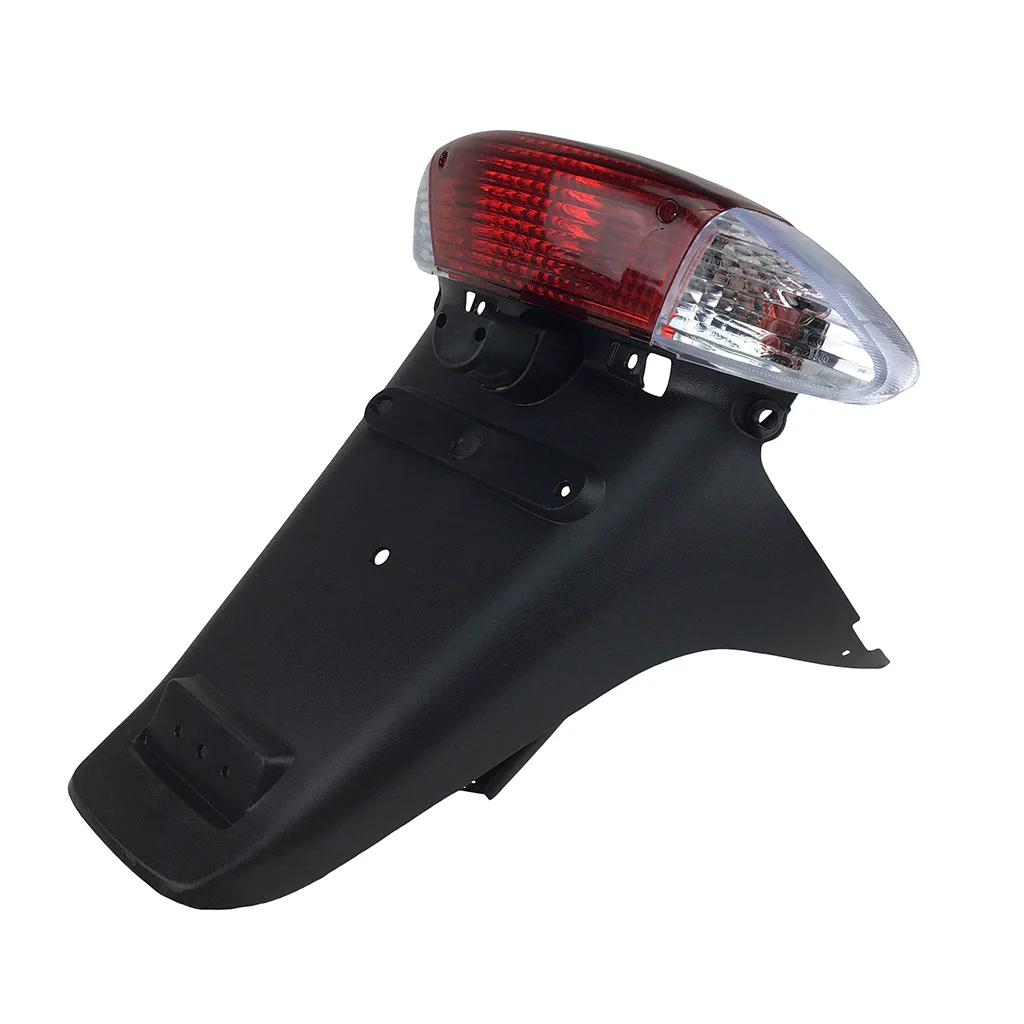

Scooter Tail Light - Jonway 150T-12A Scooter

This replacement tail light / rear fender assy fits several models of Chinese scooters including but not limited to the Jonway 150T-12A scooter.  Use the detailed pictures and measurements to best match your light.

Tail light details:

• Red lens w/ clear side lenses
• License plate light
• 4 socket assy

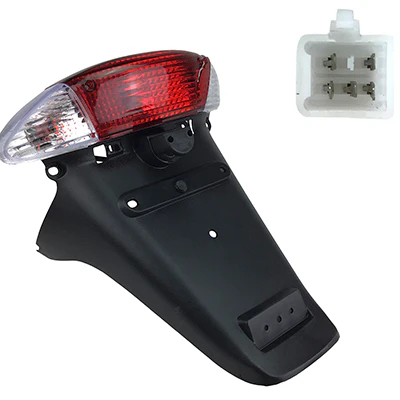

• 5-wire 6-position plug (see picture)
• Light height: 16 1/4 inches

• Light width: 14 inches

• Wire length: 6-8 inches

• Two mounting tabs at top of assembly
• Four bolt holes just underneath lens
• One bolt hole in center of rear fender
• Bolt holes on end of fender wings

• 2 holes to bolt on license plate
• Space to mount reflector at bottom of fender
• Bulbs included

Please check specs and detail pictures for best match of your part.
