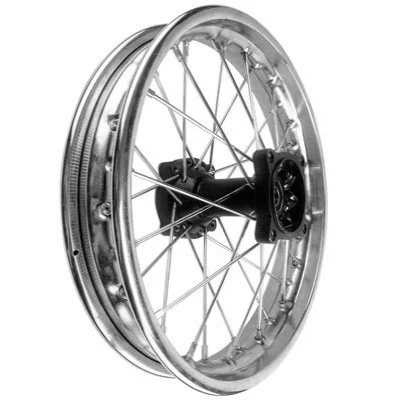

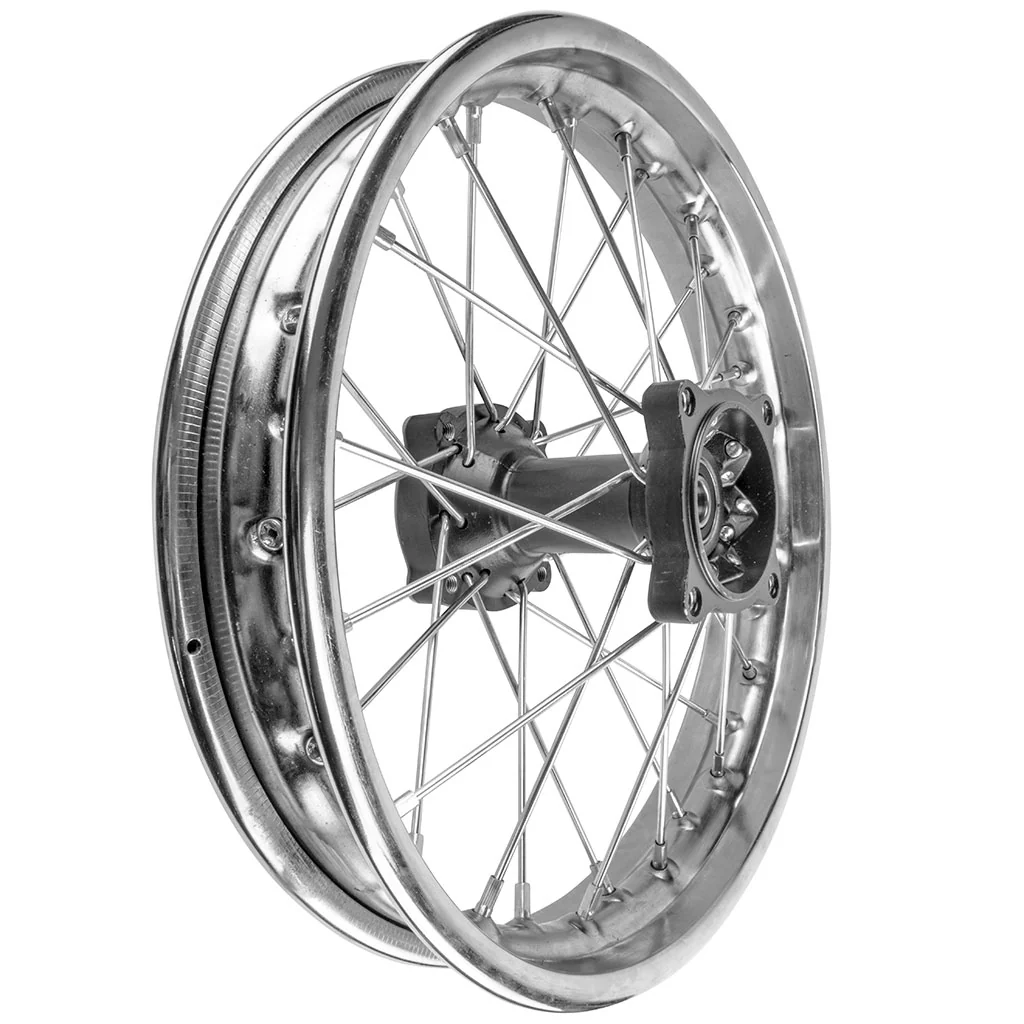

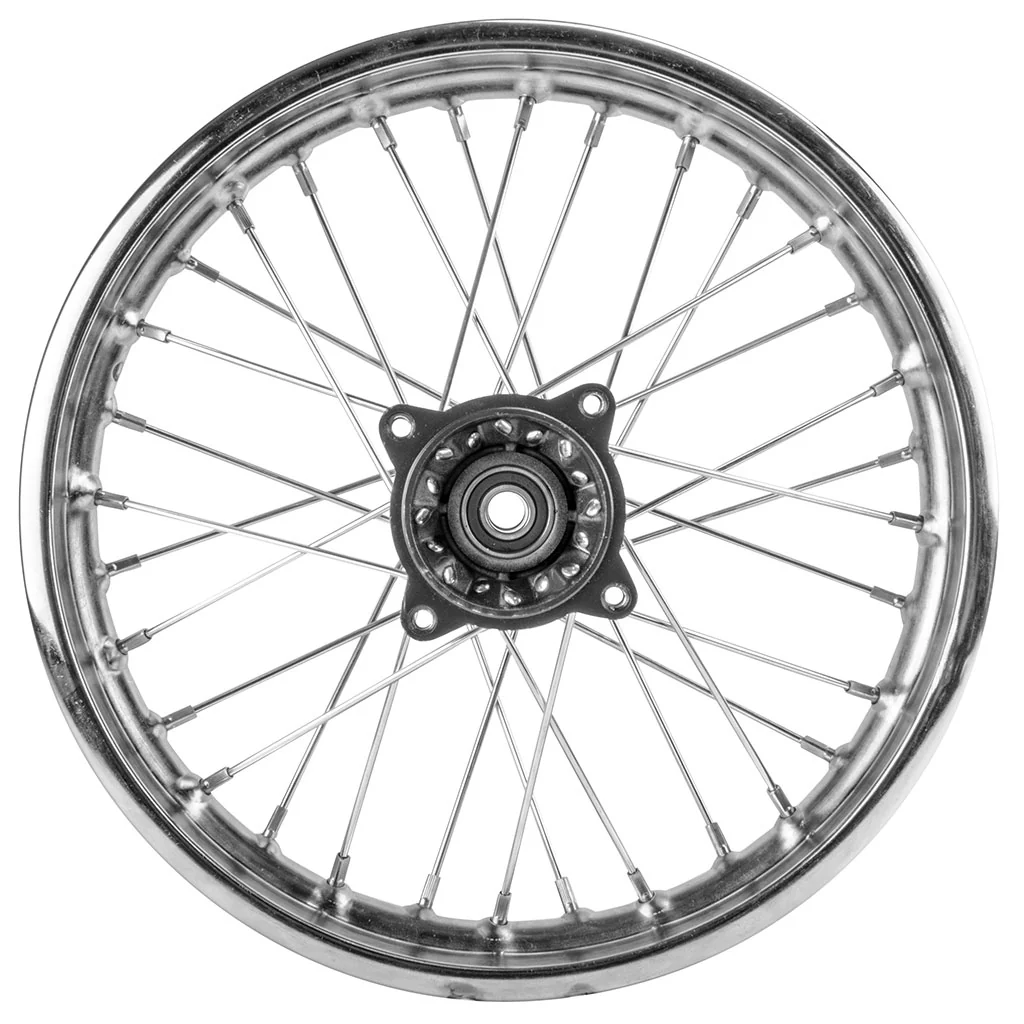

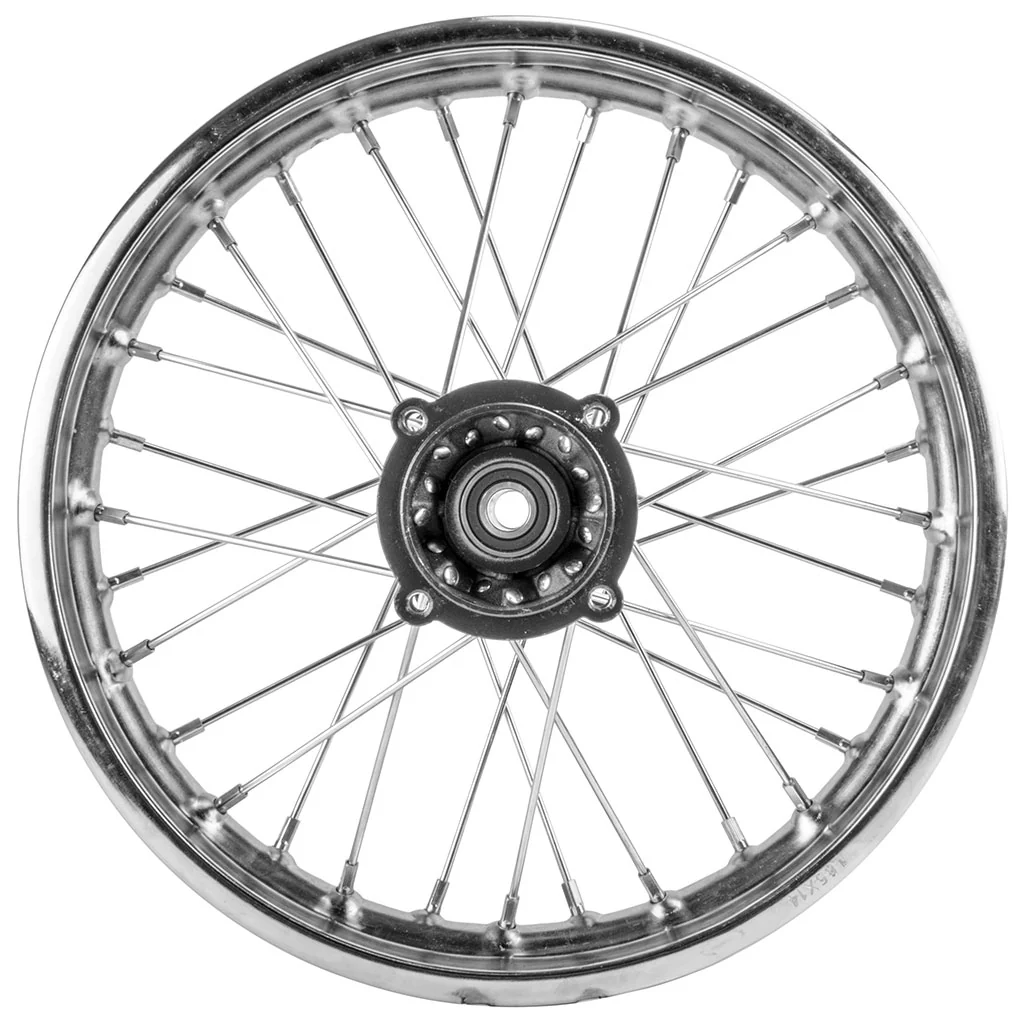

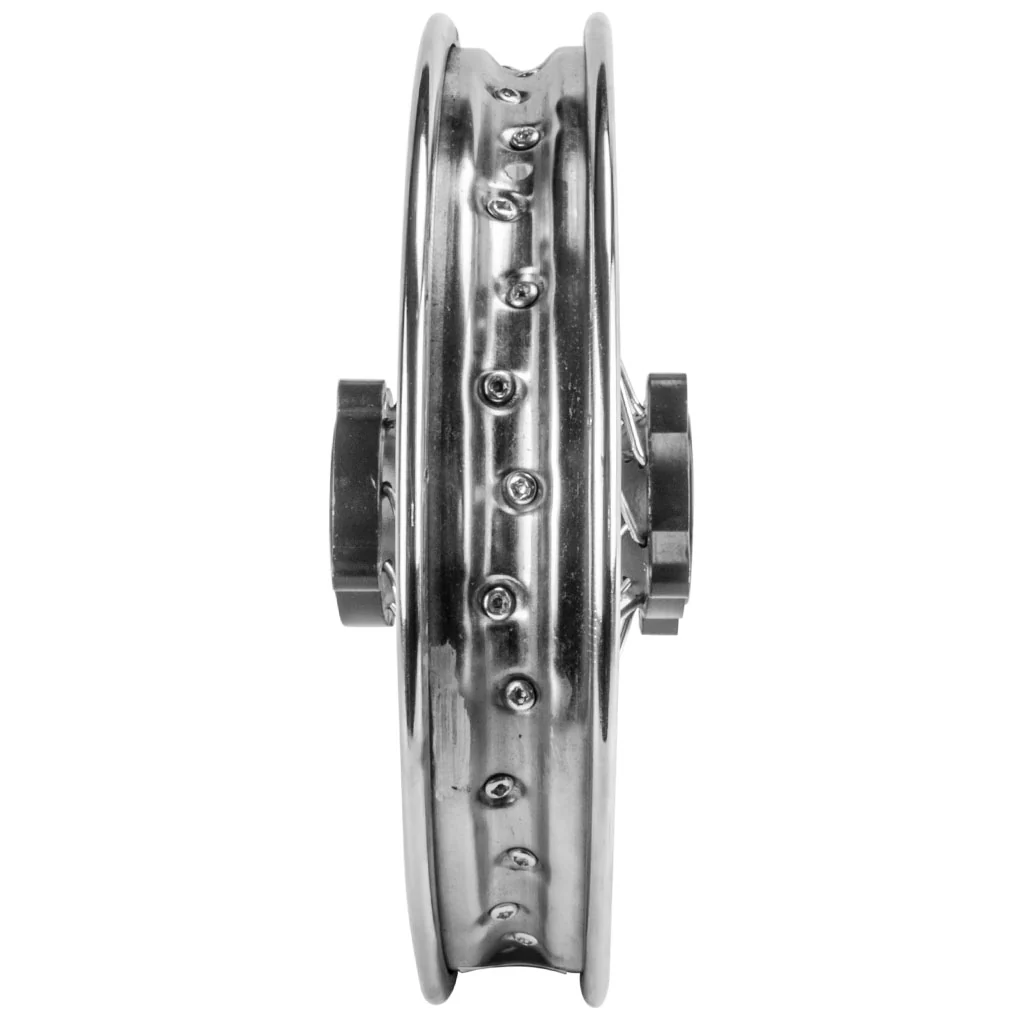

Rim Wheel - Rear - 14.0 x 1.85 Inch - 15mm ID - 32 Spoke - Tao Tao DB27 Dirt Bike - Version 1451

Rear 14 x 1.85 Inch Dirt Bike Rim Wheel

Version 1451

Rear rim wheel for 110cc and 125cc dirt bikes.  This size is used on several makes and models including Tao Tao dirt bikes. Please use detailed measurements and pictures to help you get the correct rim for your machine.

Wheel details:

• Rear
• Silver with silver spokes
• Black hub
• 1.85x14
• 32 spokes
• Center hole diameter: 15mm (0.59 in)

• Overall width of rim: 68mm (2.7 in)

• Overall rim diameter: approx 38.1cm (15.0 in)

• Bolt hole spacing: 71mm (2.79 in) center to center (rotor side)
• Bolt hole spacing diagonally: 100mm (3.93 in)

• Bolt hole spacing: 65mm (2.56 in) center to center (sprocket side)
• Bolt hole spacing diagonally: 92mm (3.62 in)

• Uses 6202RS bearings

The last number on your TIRE will let you know if you are needing a 14.0 inch rim.  This is a 14.0 inch rim.  This rim is known to fit the Tao Tao DB27 dirt bike.

Also fits the rear of the Denago MX2 dirt bike.
