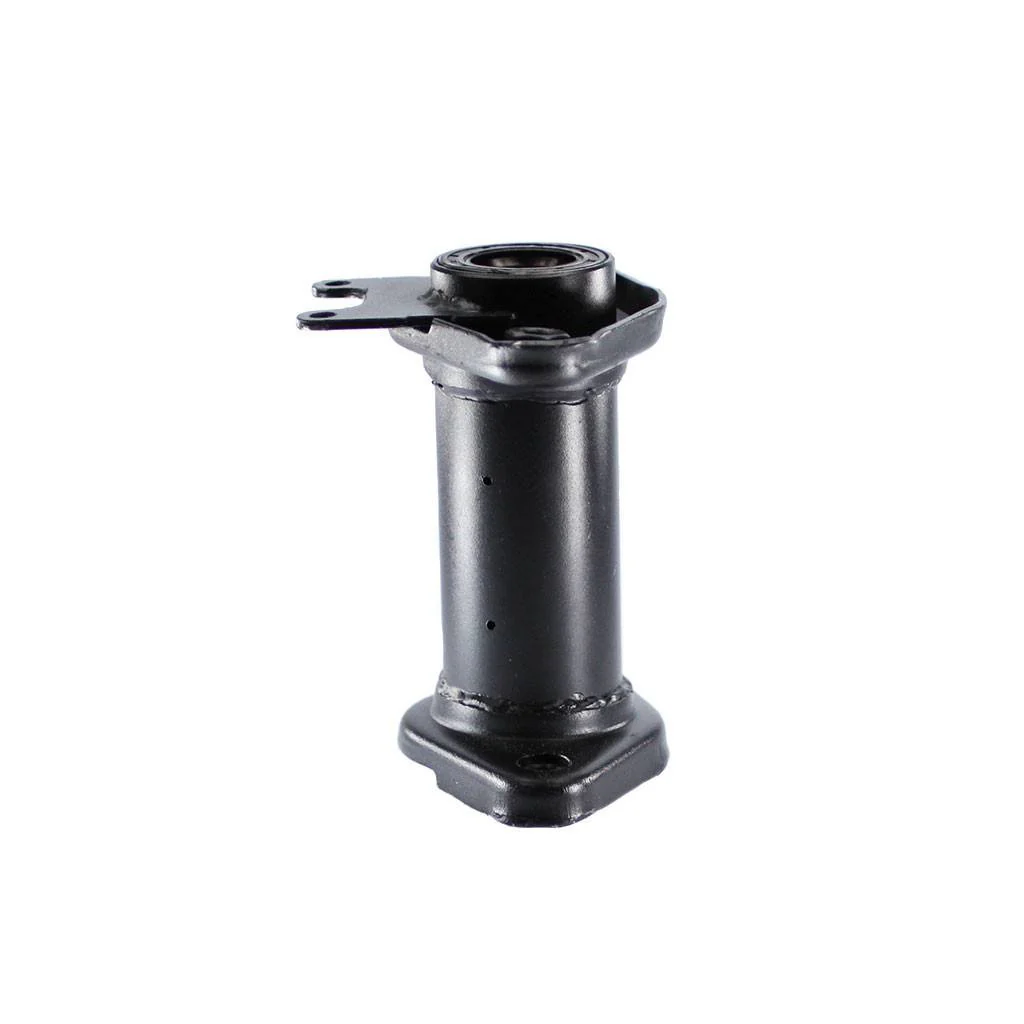

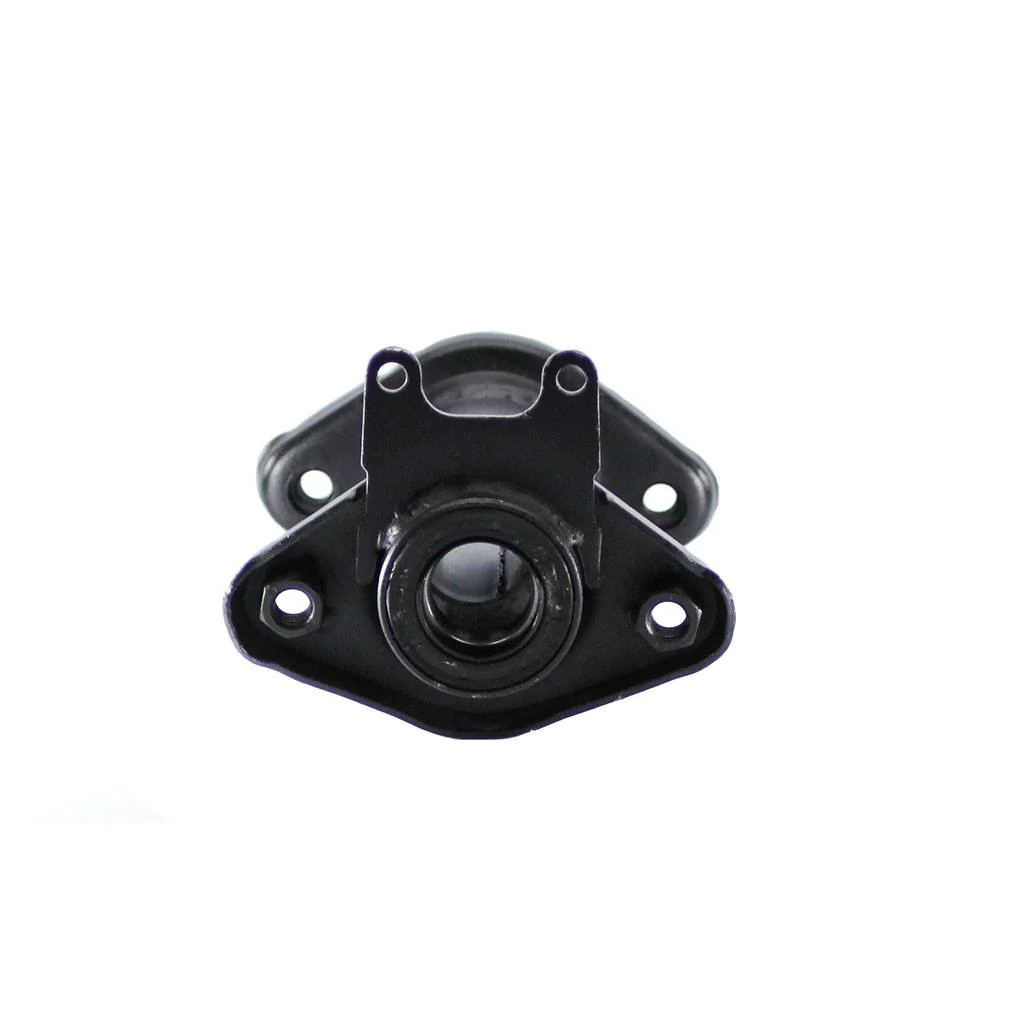

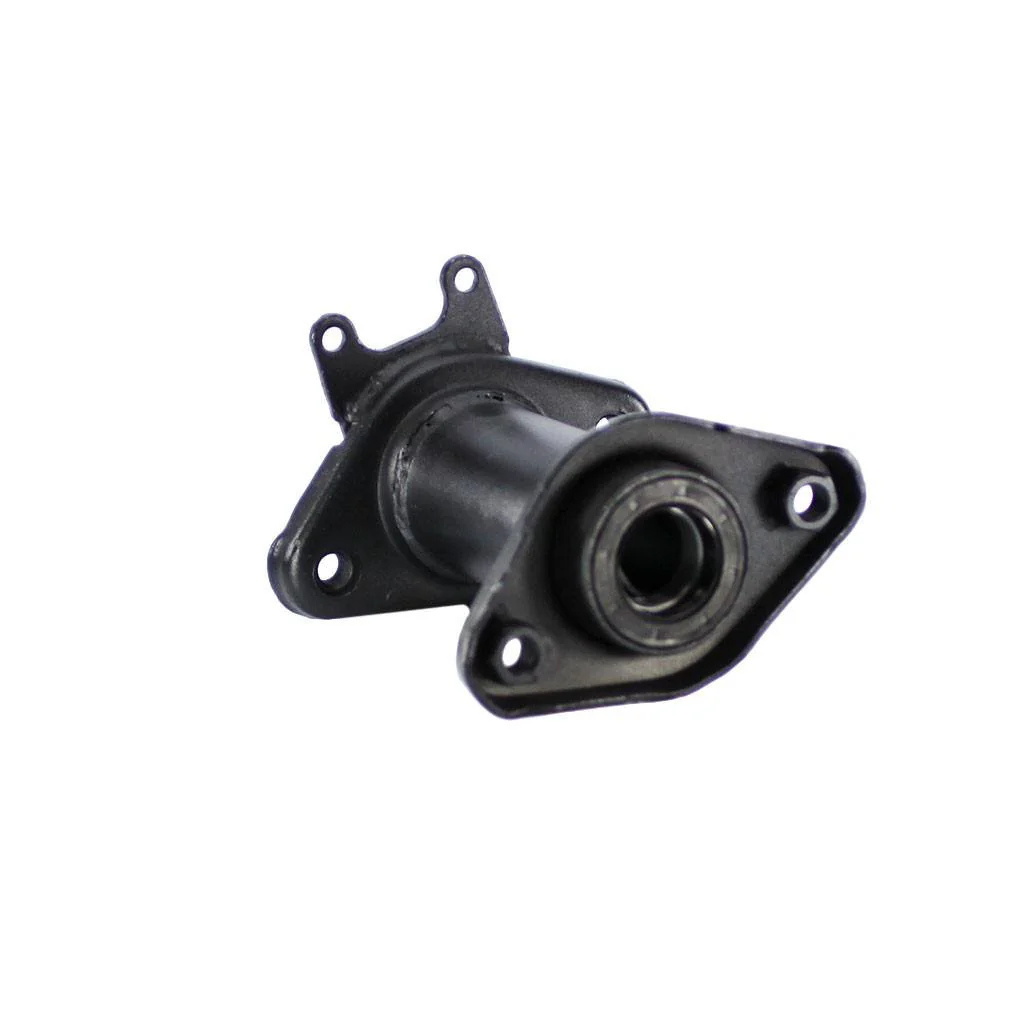

Axle Carrier for Tao Tao 150cc 250cc ATV's.

Rear Axle Carrier for Tao Tao 150cc 250cc ATV's.

 This is the axle carrier for most of the Tao Tao atvs from 150cc-250cc.  Please be sure to use the pictures and measurements to verify the correct fit for your machine.   The bearings, and spacer are included and preinstalled.  Just one more reason to buy from VMC!

Carrier details:

• Overall length: 176mm (6.91 in)

• Carrier OD: 60mm (2.37 in)

• Ends have 12mm*1.75 threads
• Threaded mounting hole distance: 111mm (4.36 in) center-to-center apart

• Bracket hole distance: 52mm (2.04 in)

• Bearing: 6006RS on both sides
• Seal: 55*35*8
• 13502A19510

• SEAL IS NOT INCLUDED

Known to fit: Tao Tao ATA150B, ATA150D, ATA150G, ATA250B, ATA250C, ATA250E, Bull 150 and Rhino 250.
