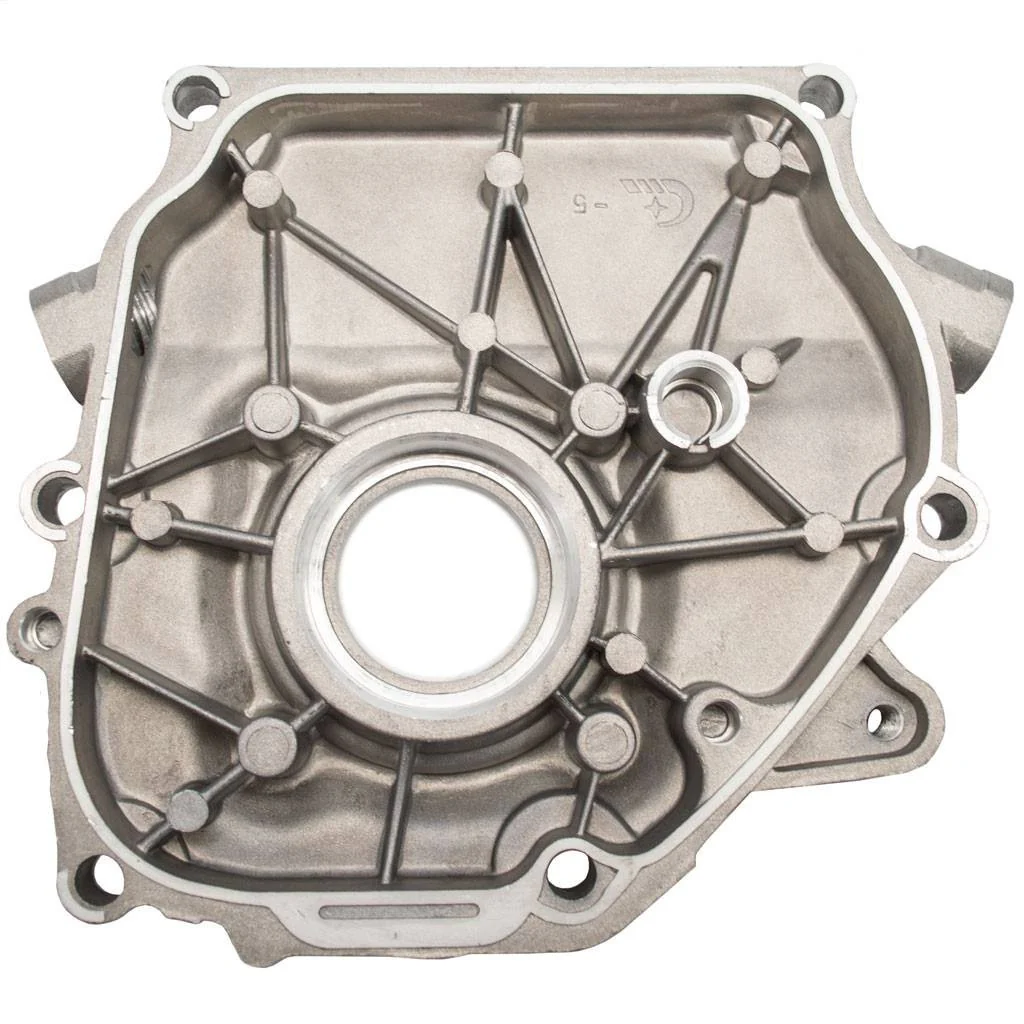

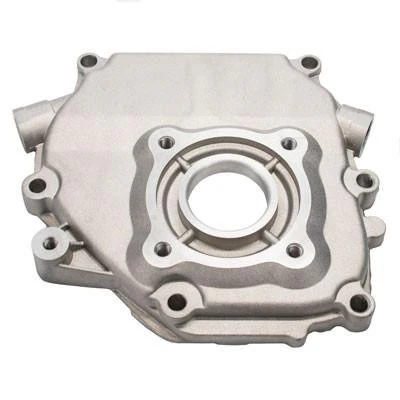

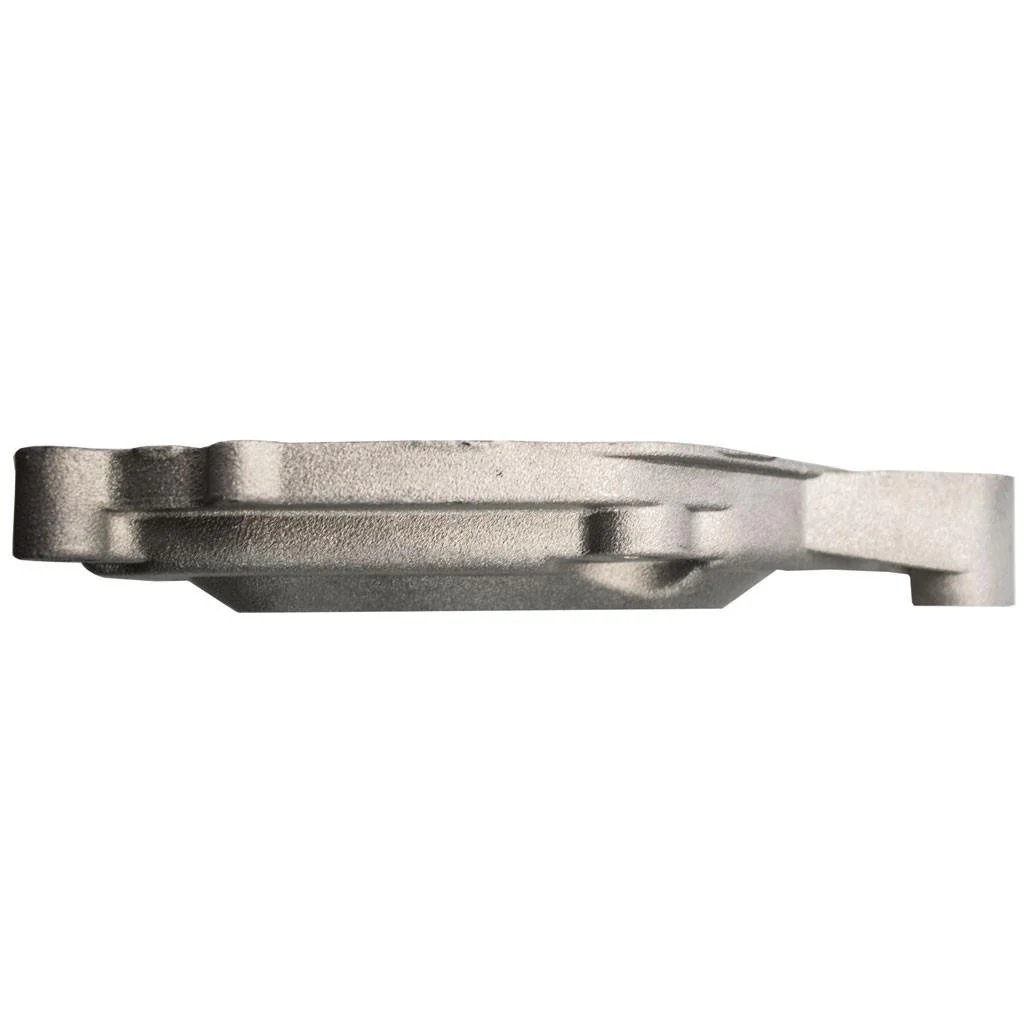

Engine Crankcase Cover for Coleman 196cc Mini Bike, Go-Kart

Chinese Engine Crankcase Cover for Coleman 196cc Mini Bikes and Go-Karts

This is the OEM crankcase cover for the Coleman BT200X, CT200U and CT200U-EX mini bikes. Also used on the Coleman KT196 go-karts

Crankcase cover details:

• Overall dimensions are approximately 8.0 inches by 7.0 inches

• Cast aluminum
• (6) non-threaded bolt holes around outside of cover
• Threaded dipstick hole on left (looking at finished side)
• Opening for 6205 bearing
• Compatible with 196cc 4 stroke, GX200 168F Honda clone engines
• 11311/168F

Fits the Lowe's Axis Off-Road M200 mini bike.

Shipping details:

Do you need your crankcase cover fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!
