Cylinder Jug - Tao Tao 200cc ATVs ATA250D

Chinese Cylinder Jug 200cc Engines for the Tao Tao ATA250D ATV.

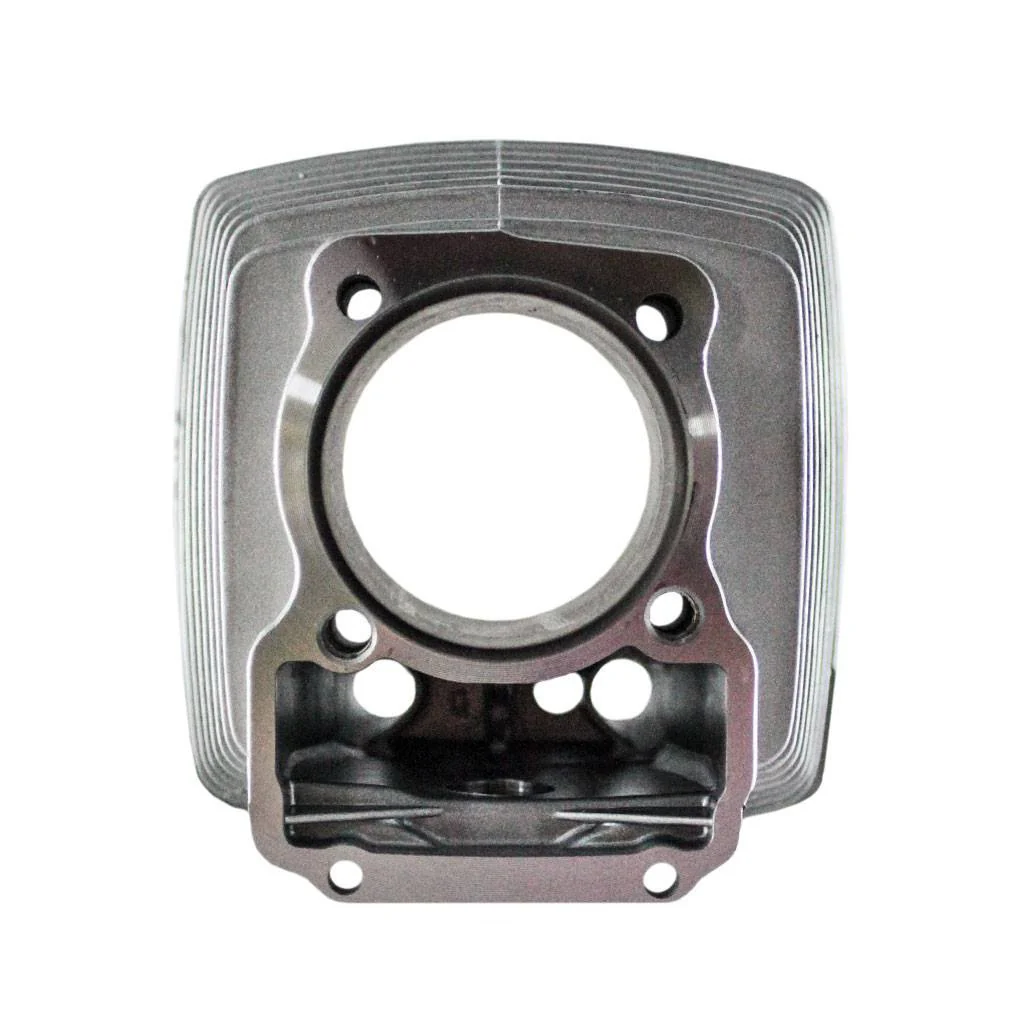

This Chinese cylinder is the replacement part for many 4-stroke Chinese  250cc engines.  This is the cylinder ONLY - NO PISTON KIT or GASKETS.

Cylinder jug description:

• ID sleeve: 66.75mm
• OD sleeve:72.35mm
• Sleeve height: 33.5mm
• Overall height of jug including sleeve:  113.5mm
• Overall height of jug without sleeve:  80mm
• Bottom of jug mounting hole measurements center to center: (small holes) 63mm - [center holes] 65mm - (top holes) 60.5mm
• Top of jug mounting hole measurements center to center: (top holes) 60.5mm - (center holes) 65mm - 3 holes and a single bottom hole to match a gasket (see picture)
• Hole on side ID: 22.45mm
• 13064A1714
• Known to fit Tao Tao ATA250D

Shipping details:

Do you need your cylinder jug fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!
