Rear Sprocket - 420 - 50 Tooth - 40mm Center Hole - Coleman 196cc Mini Bikes

Rear Sprocket 420-50T Coleman Trail BT200X, CT200U and CT200U-EX Mini Bikes

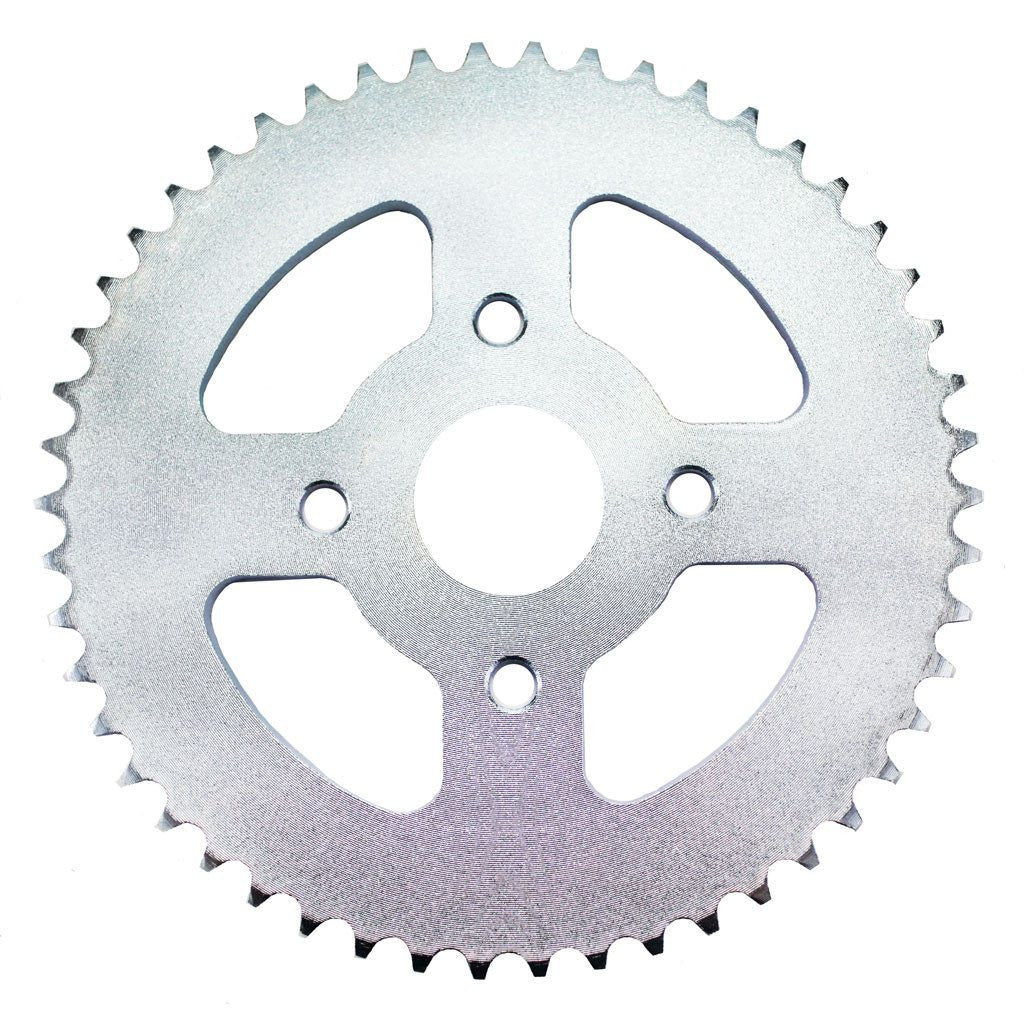

This rear sprocket is used on the Axis M200, Coleman BT200X, CT200U and CT200U-EX mini bikes. It is also used on the Massimo and Baja MB165 and MB200 mini bikes.  This sprocket has 50 teeth and is compatible with 420 chain ONLY.

Sprocket details:

• #420 chain
• 50 teeth
• Center hole diameter: 40mm (1.56 in)
• Four mounting holes
• Mounting holes: 57mm (2.23 in) center to center (side by side)
• Mounting holes distance: 80mm (3.15 in) straight across
• Overall diameter: 20.9cm (8.25 in)
• 23576  33201563  MB200-221


Be sure to measure your chain or current sprocket before ordering.  420 chain has 1/2 inch pitch and 5/16 inch roller diameter.
