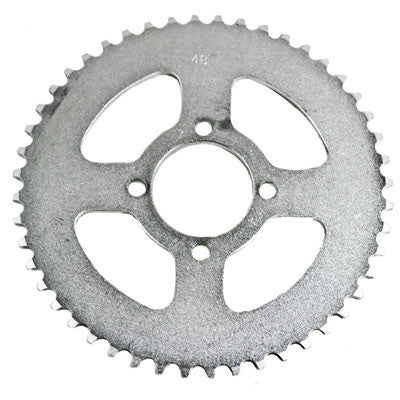

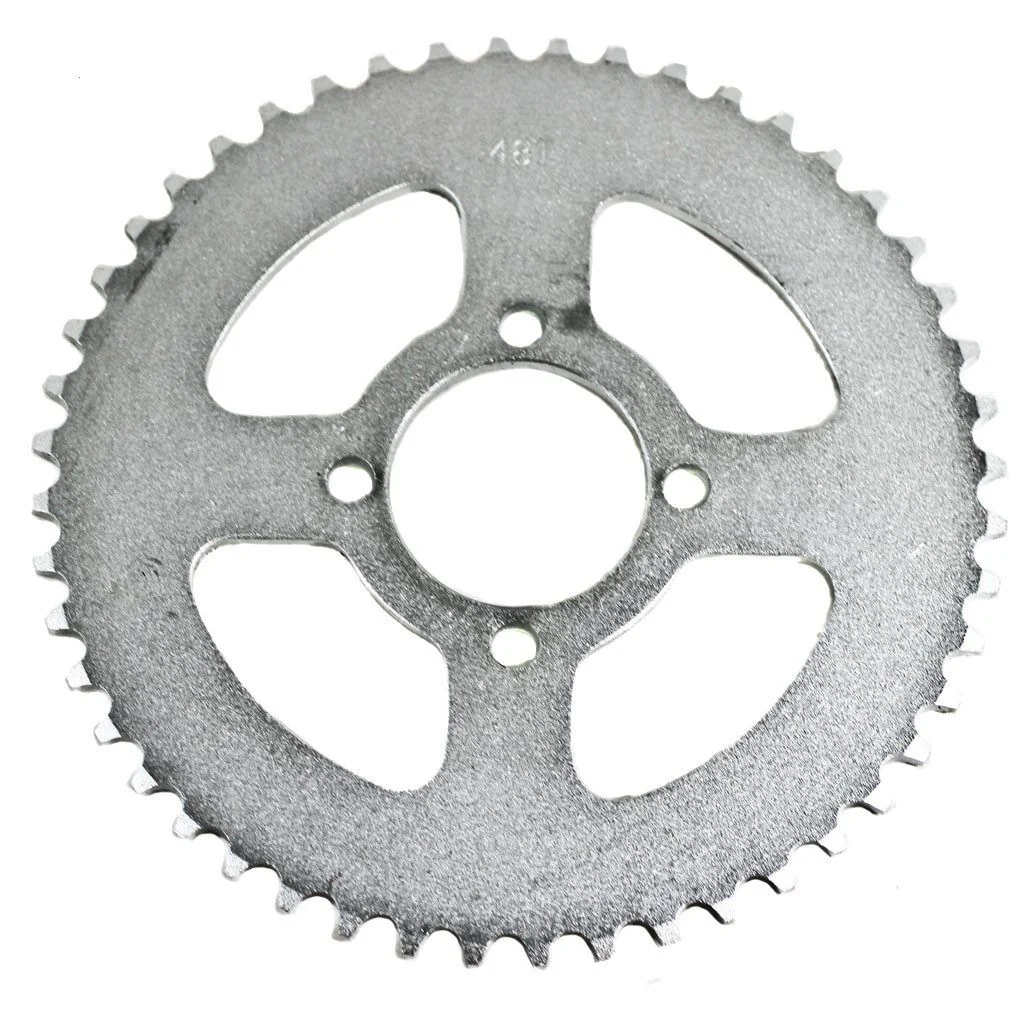

Rear Sprocket - 420 - 48 Tooth - 52mm Center Hole

Chinese ATV Rear Sprocket - 420-48T

This rear sprocket is used on the Chinese 50cc-125cc engines.  This sprocket has 48T and is compatible with the 420 chain ONLY.

Sprocket details:

• #420 chain used on ATVs usually with a 7 inch rear wheel or smaller
• 48 Teeth
• Center hole diameter: 52mm (2.05 in)
• Mounting holes distance: 47.6mm (1.875 in) center to center side-by-side
• Overall diameter: 198.4mm (7.813 in)
• will NOT fit Kazuma ATVs (90cc and under use 428 chain)

Be sure to measure your chain or current sprocket before ordering.  420 chain has 1/2 inch pitch and 5/16 inch roller diameter.

Shipping details:

Do you need your rear sprocket fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.   Buy now!
