Rear Sprocket - 420 - 37 Tooth - 76mm Center Hole - DB14, DB20, DB24

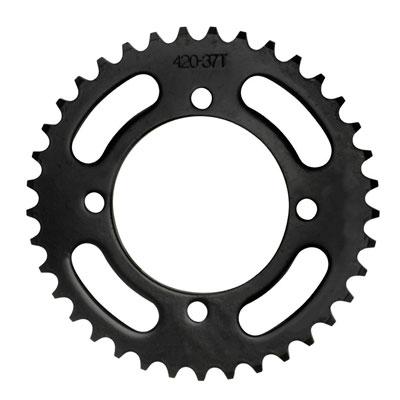

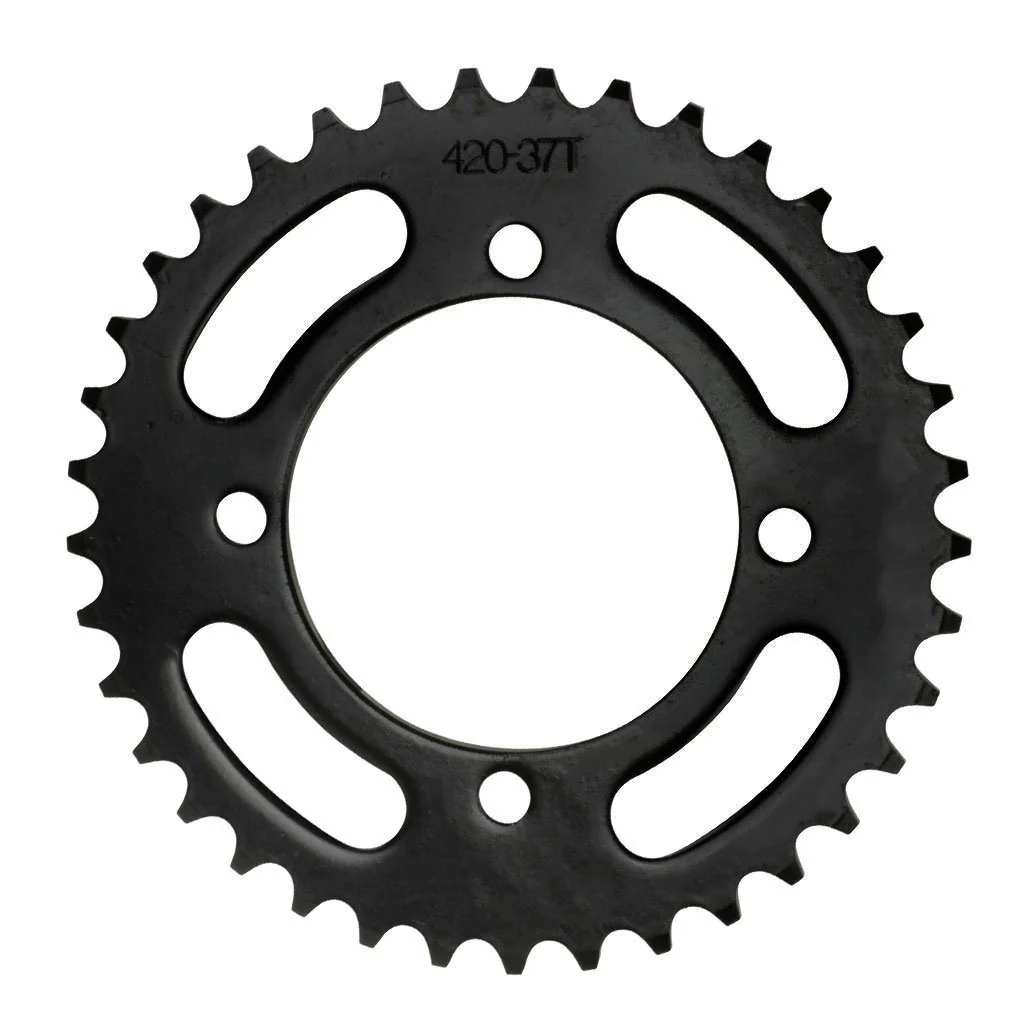

Chinese ATV Rear Sprocket - 420-37T with 76mm Center Hole

This rear sprocket is used on the Chinese 110cc-140cc engines.  This sprocket has 37 teeth and is compatible with the 420 chain ONLY.

Sprocket details:

• 420 chain
• 37 teeth
• Center hole diameter: 76mm (2.99 in)
• Mounting hole diameter: 8.5mm (0.33 in)
• Mounting holes: 66mm (2.60 in) center to center (side by side)
• Mounting holes distance: 92mm (3.62 in) straight across
• Overall diameter: 153mm (6.02 in)
• 14076::0  140760  14076  103733

Be sure to measure your chain or current sprocket before ordering.  420 chain has 1/2 inch pitch and 5/16 inch roller diameter.

Fits Denago MX and MX1 dirt bikes.

Fits Tao Tao DB14, DB20 and DB24 dirt bikes.
