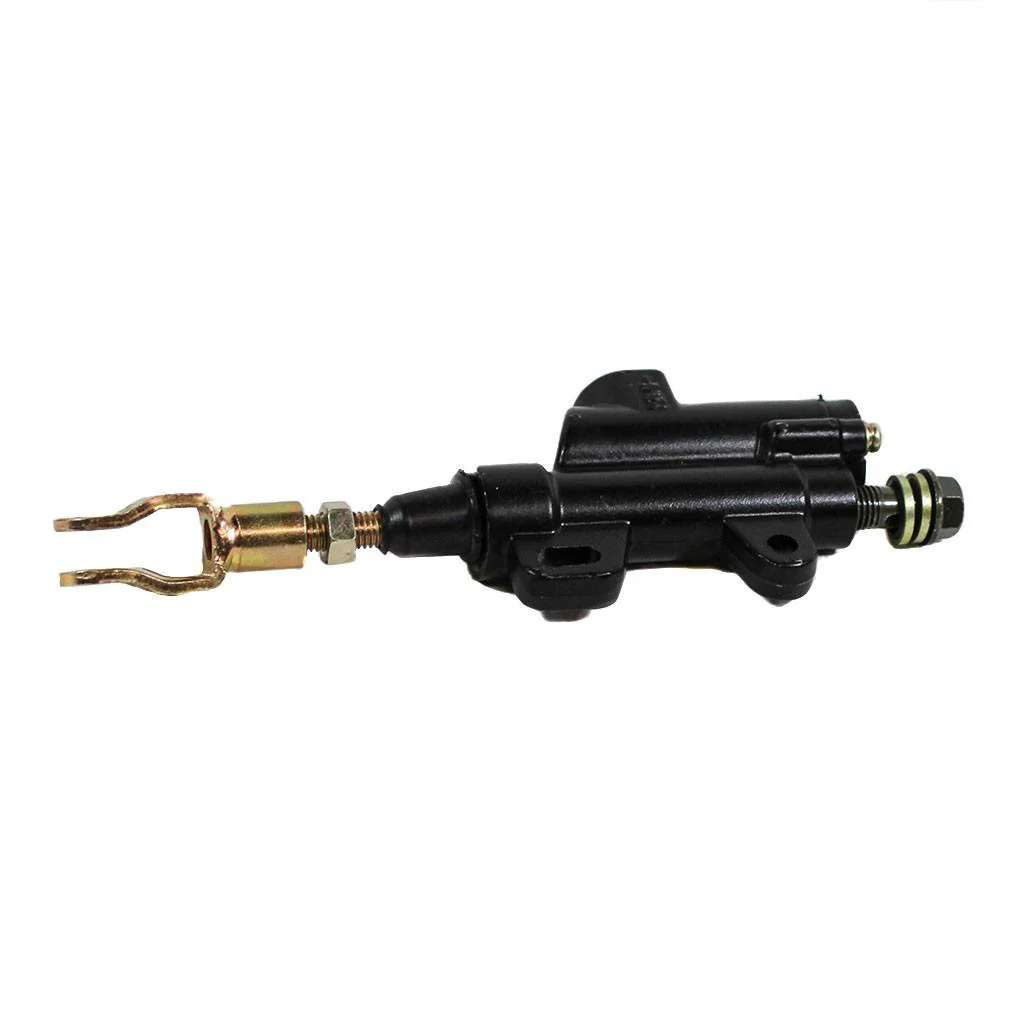

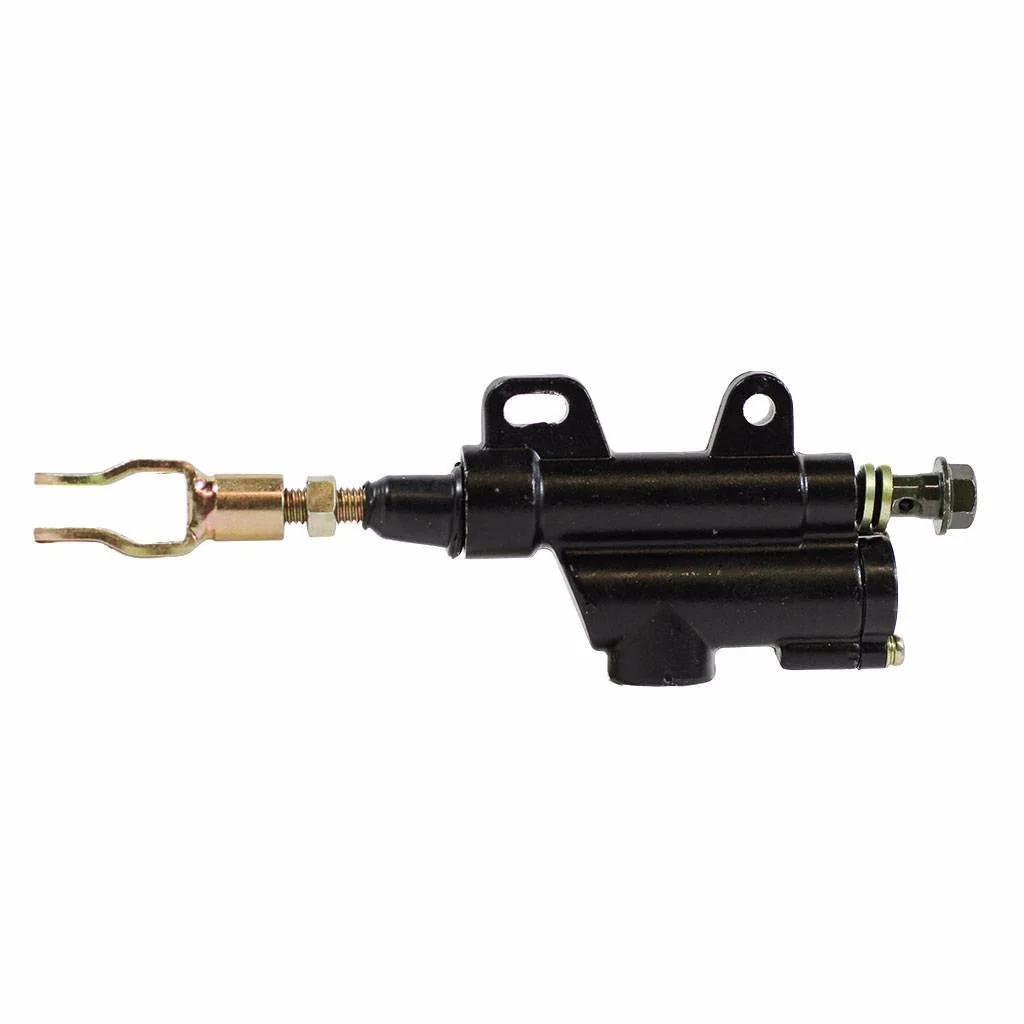

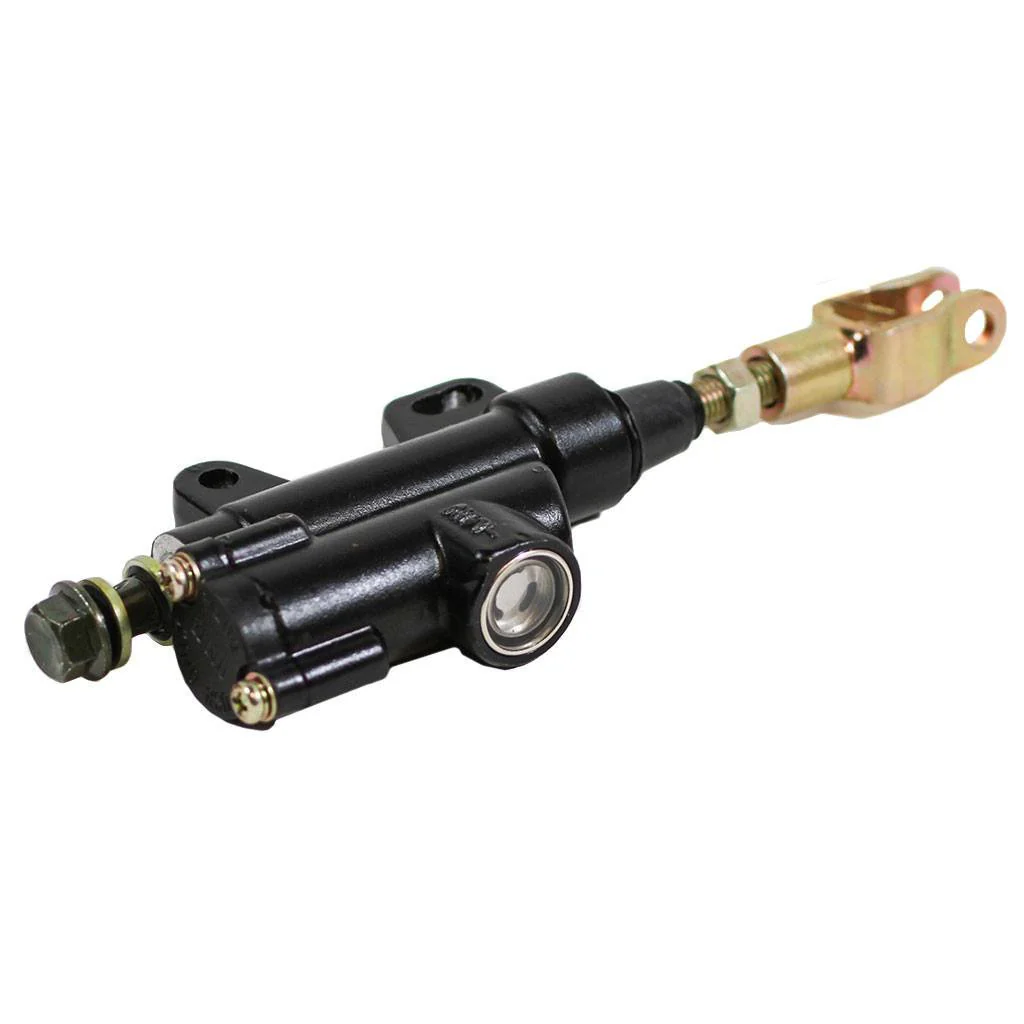

Brake Master Cylinder - Rear

Foot Brake Master Cylinder

This rear brake master cylinder is the replacement part for many Chinese dirt bikes. This master cylinder fits many 50cc, 70cc, 90cc, 100cc, 110cc and 125cc models.

Master Cylinder description:

• Threaded M8x1.25 rod - 53mm (2.08 in) long from body
• Mounting hole measurement: 45mm (1.77 in) center-to-center
• 10mm*1.25 banjo bolt included (uses 12mm wrench)
• Compatible with 50cc-125cc 4 stroke

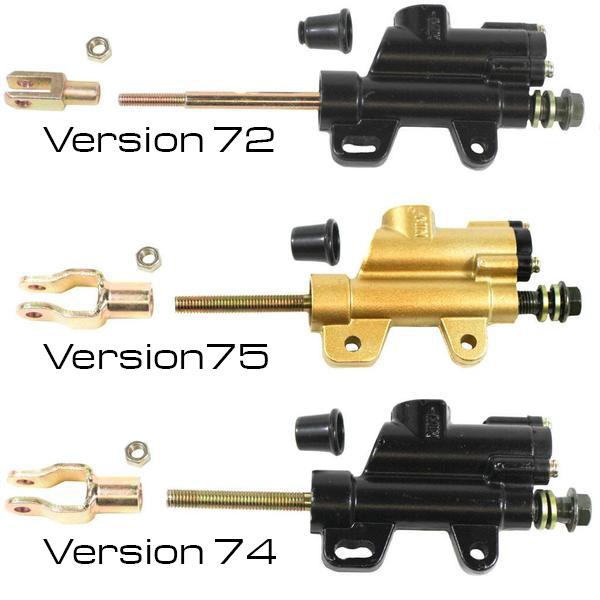

The body of this master cylinder is exactly the same as our versions 72 and 75.  The difference in the master cylinders is the length and diameter of the shaft and the style of the clevis. Also this master cylinder and our version 72 have the adjustable mounting hole near the front.
