Drive Shaft U Joint Yoke for Yamoto Yamaha

Chinese ATV U Joint Yoke for Drive Shaft

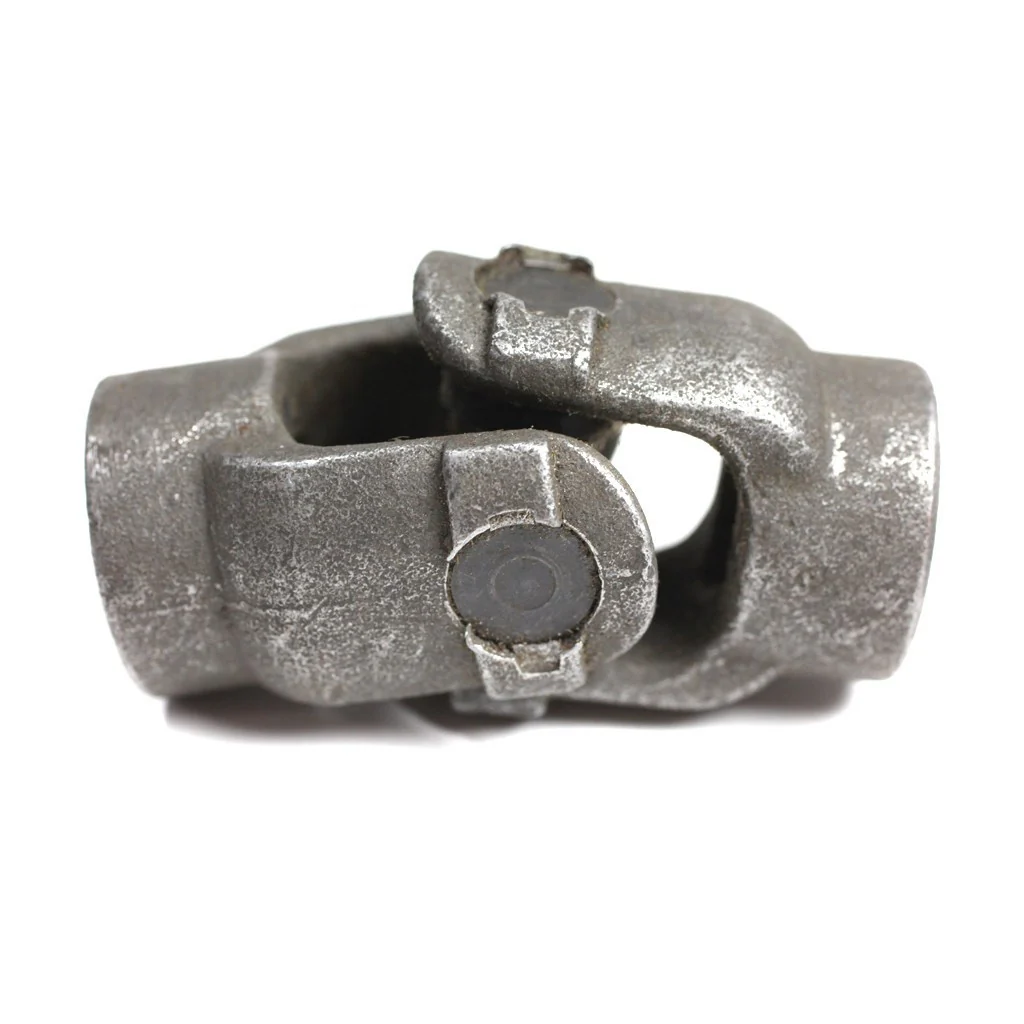

Drive shaft yoke u joint is compatible with Yamoto 110cc with a shaft drive.  This yoke fits the shaft drive gear box output shaft on the E22 engine design in 50cc-110cc.  May also fit some Yamaha shaft drive models.  Will not fit the 200cc-250cc.

U joint details:

• Overall length: 85mm [3.34"]

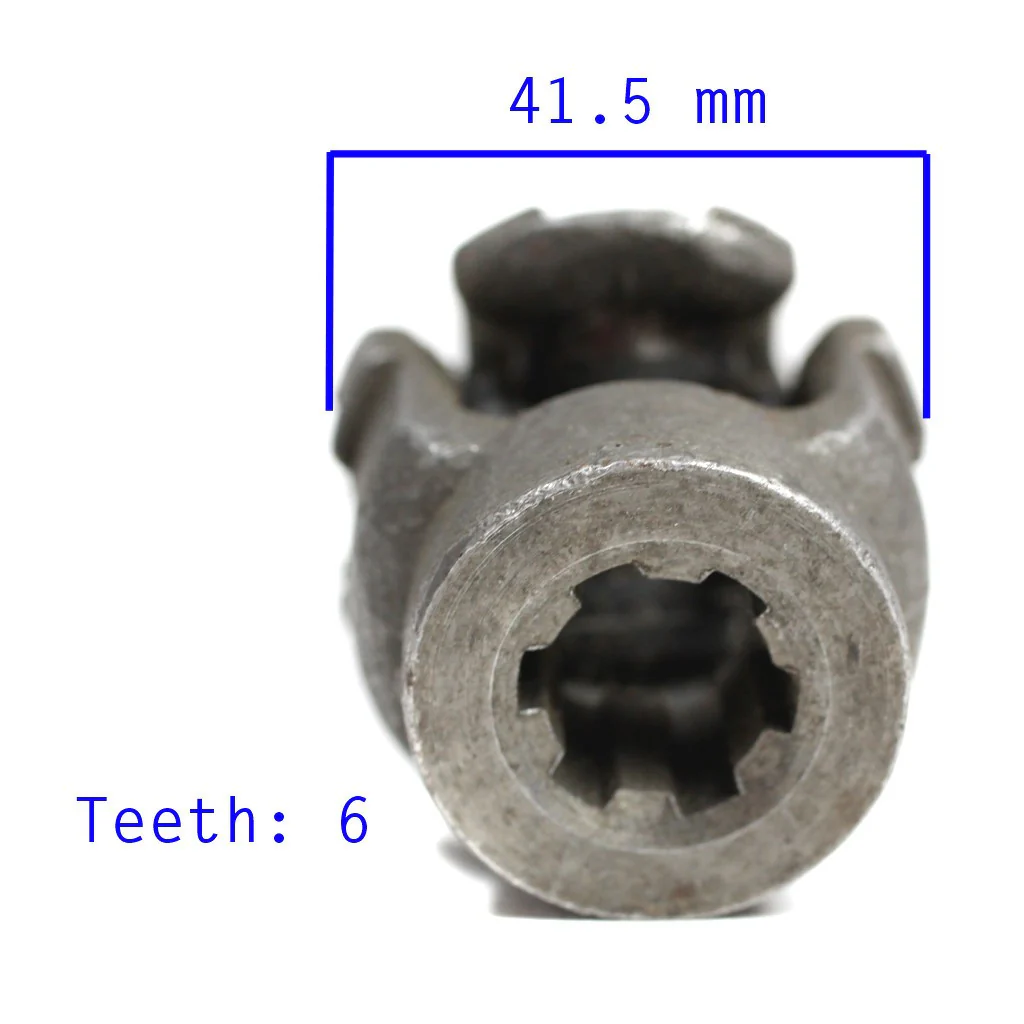

• Overall width at widest point: 41.45mm [1.63"]
• ID of shaft hole at widest point: 17mm [.67"]
• ID of shaft hole at narrowest point:  14mm [.55"]
• Shaft tooth count: 6
