Brake Caliper - Front - Tao Tao DB27, DBX1 Dirt Bike - Version 112

Chinese Disc Brake Caliper for Tao Tao DB27 and DBX1 Dirt Bikes

Version 112

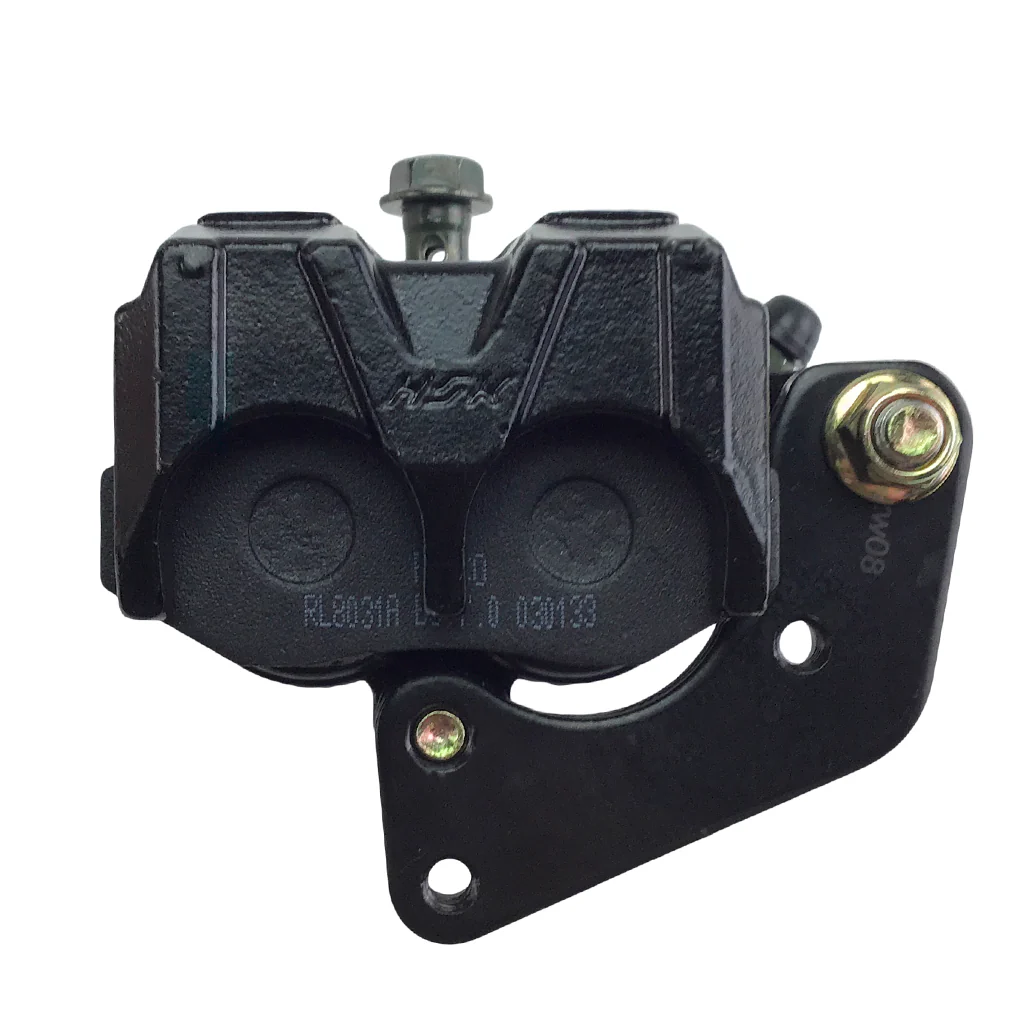

This front disc brake caliper fits the Tao Tao DB27 and DBX1 dirt bikes.  The caliper, I am sure, fits many other makes and models.  The bracket much less so.  Please use specs and pictures to best identify the caliper you are needing for your machine.

Caliper details:

• Double piston caliper
• Includes bracket
• Caliper slide pins are approximately 66mm apart
• Bracket has 6mm*1.00 mounting holes that are 51mm (2.0 in) center-to-center apart
• Bracket is 93mm (3.65 in) long
• Bracket is 6mm (0.23 in) thick
• Bracket has 6.8mm (0.39 in) spacers welded onto it at mounting holes
• Includes bleeder screw and 10mm banjo bolt
• 116333

SHOP NOTE: After changing the caliper and filling the hydraulic oil, be sure to bleed the remaining air from the brake system to insure the caliper is working effectively.
