Brake Caliper - Front - Tao Tao DB17 Dirt Bike - Version 33

Chinese Disc Brake Caliper for Tao Tao DB17 Dirt Bikes

Version 33

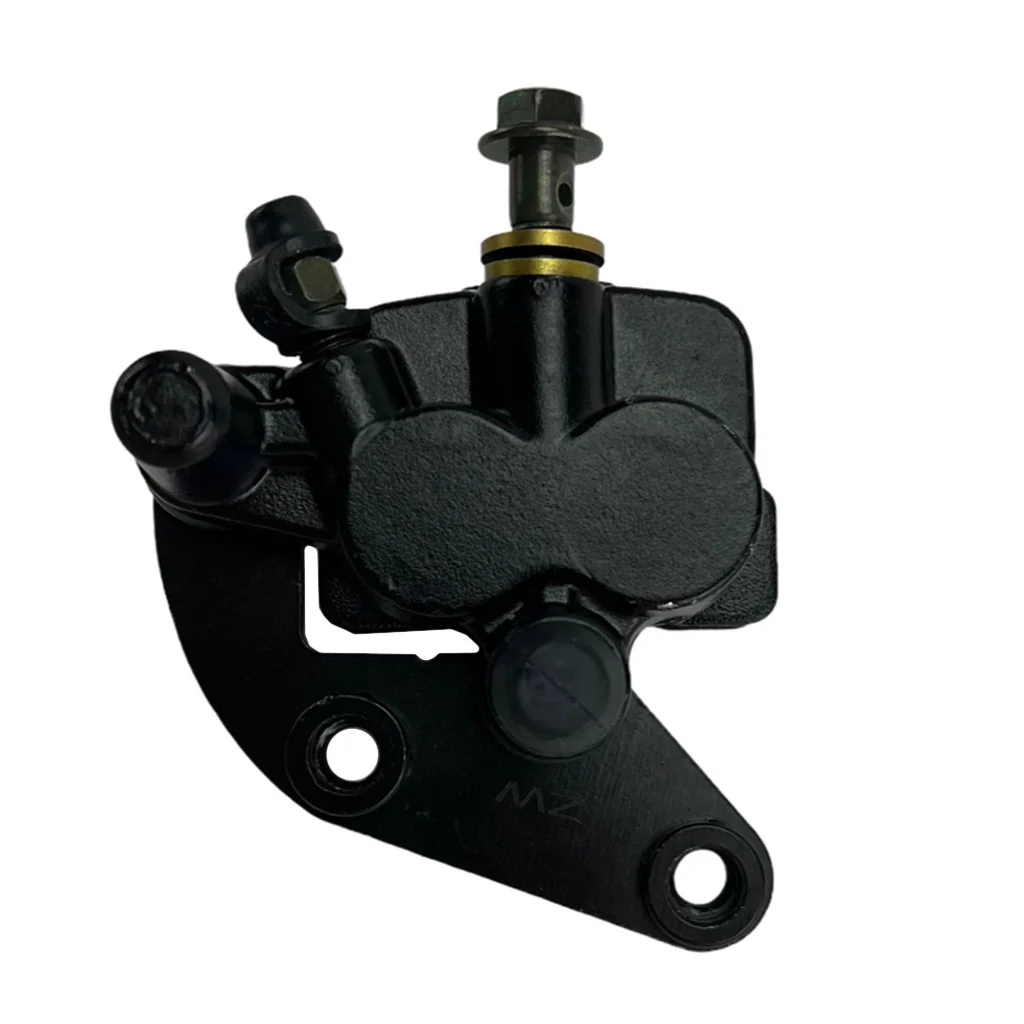

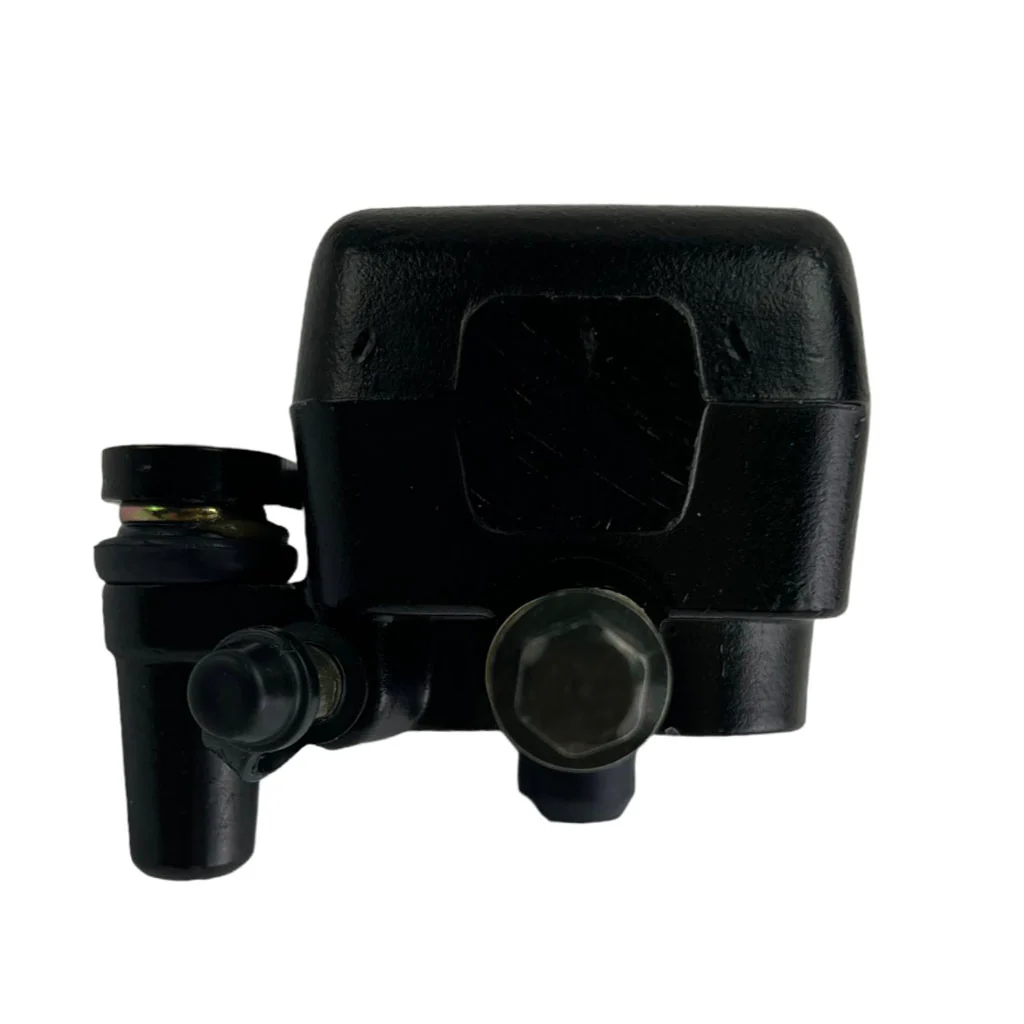

This front disc brake caliper fits the Tao Tao DB17 dirt bikes.  The caliper, I am sure, fits many other makes and models.  The bracket much less so.  Please use specs and pictures to best identify the caliper you are needing for your machine.

Caliper details:

• Double piston caliper
• Includes bracket
• Caliper slide pins are approximately 50mm (1.96 in) apart
• Bracket has 8mm*1.25 mounting holes that are 46mm (1.8 in) center-to-center apart
• Bracket has 4.5mm (0.17 in)spacers welded onto it at mounting holes
• Includes bleeder screw and 8mm banjo bolt
• 110109

SHOP NOTE: After changing the caliper and filling the hydraulic oil, be sure to bleed the remaining air from the brake system to insure the caliper is working effectively.
