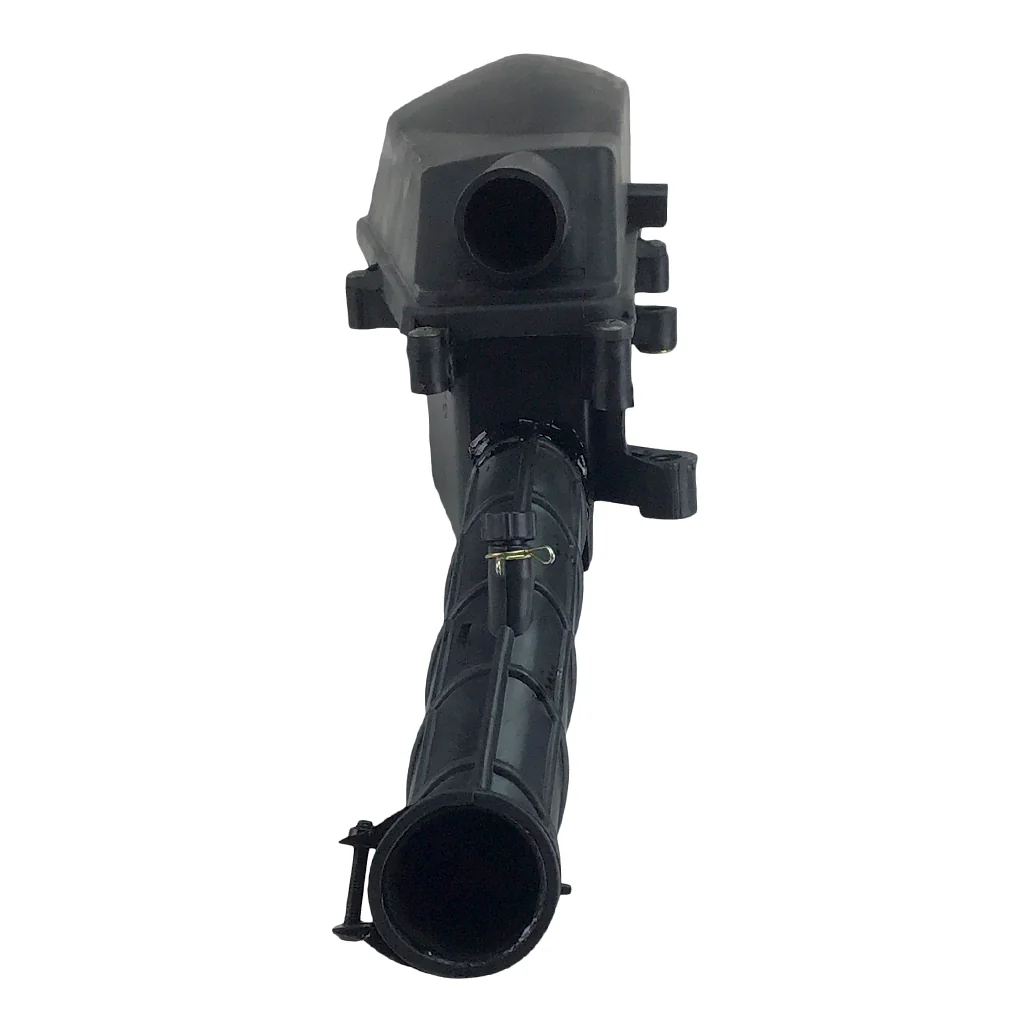

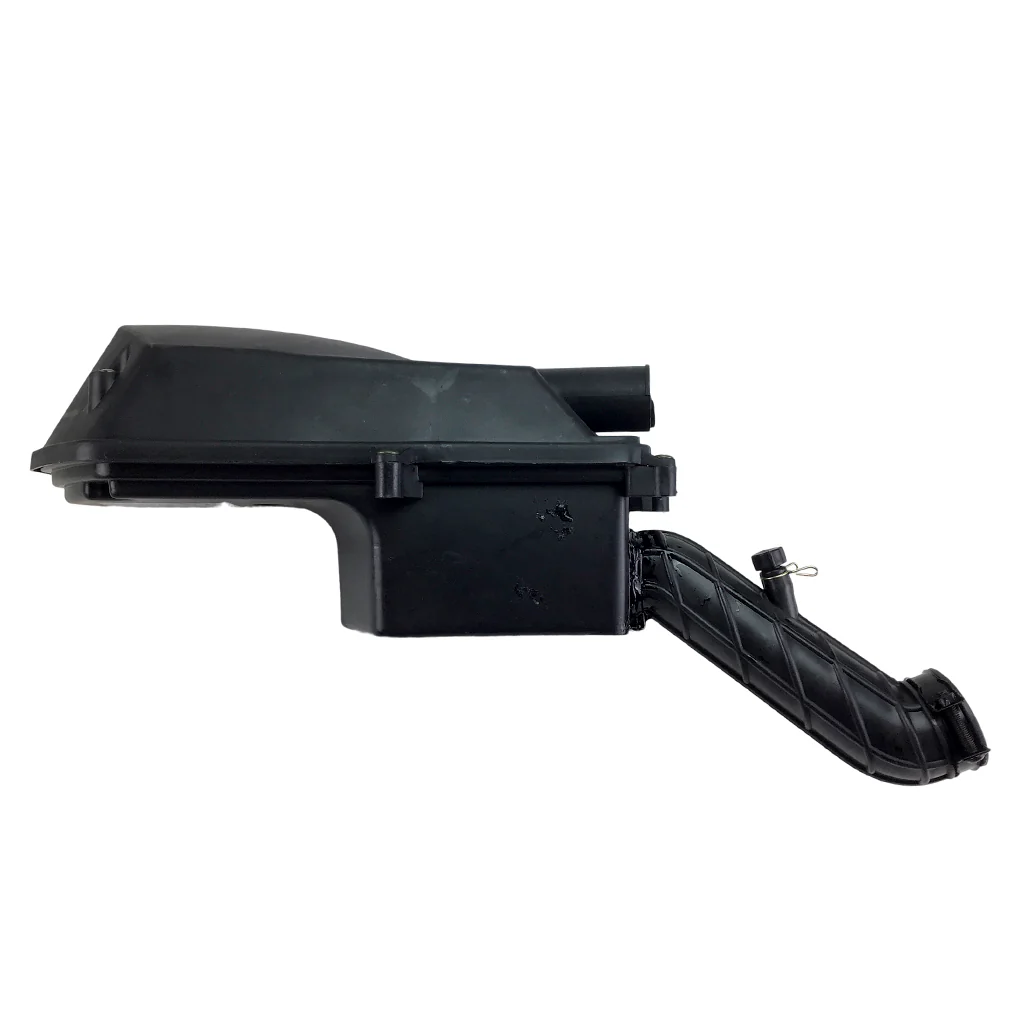

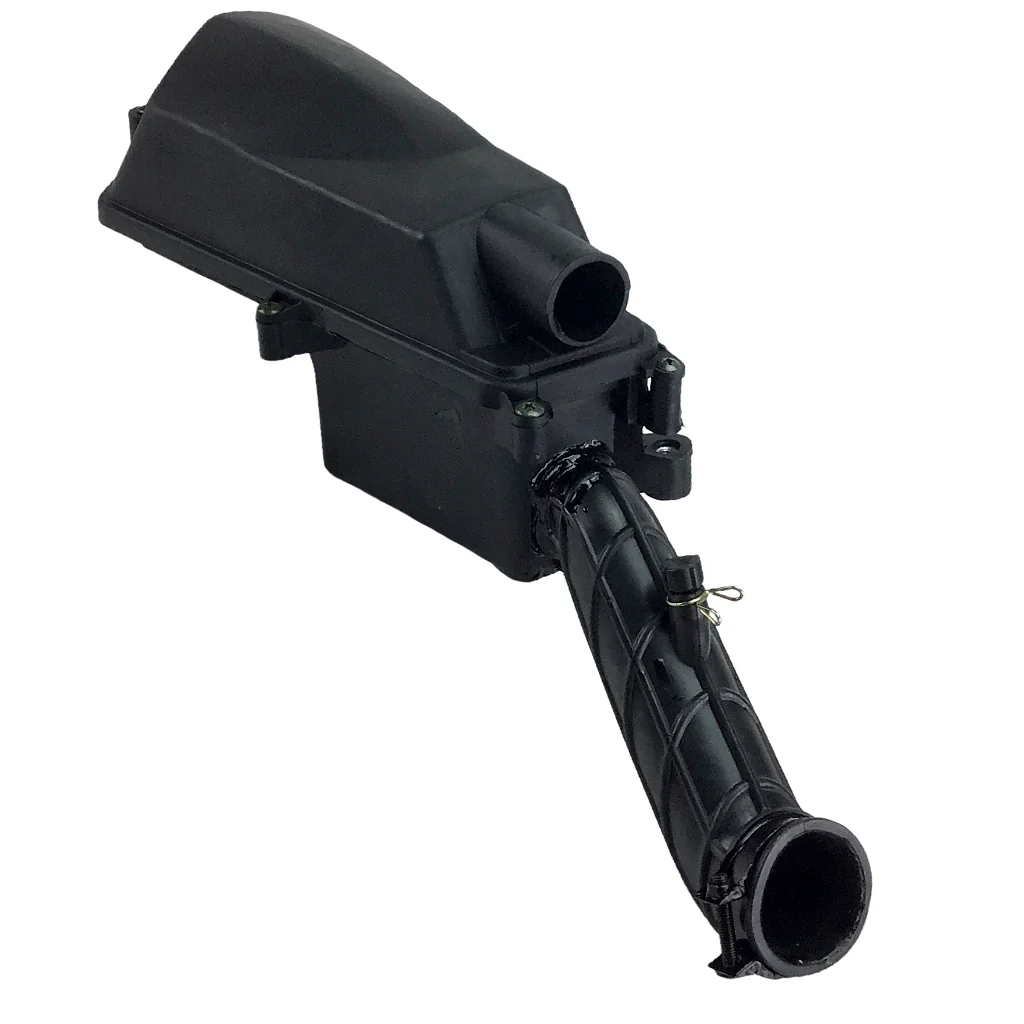

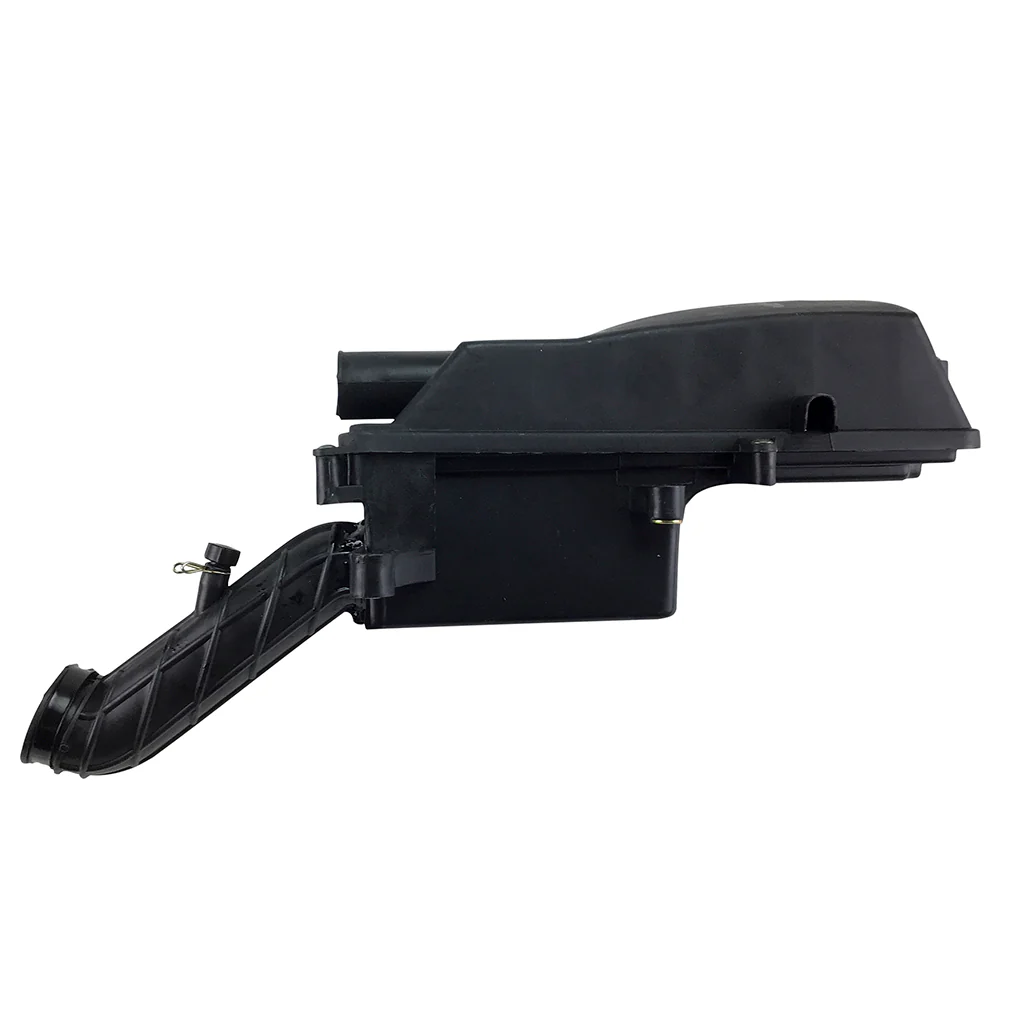

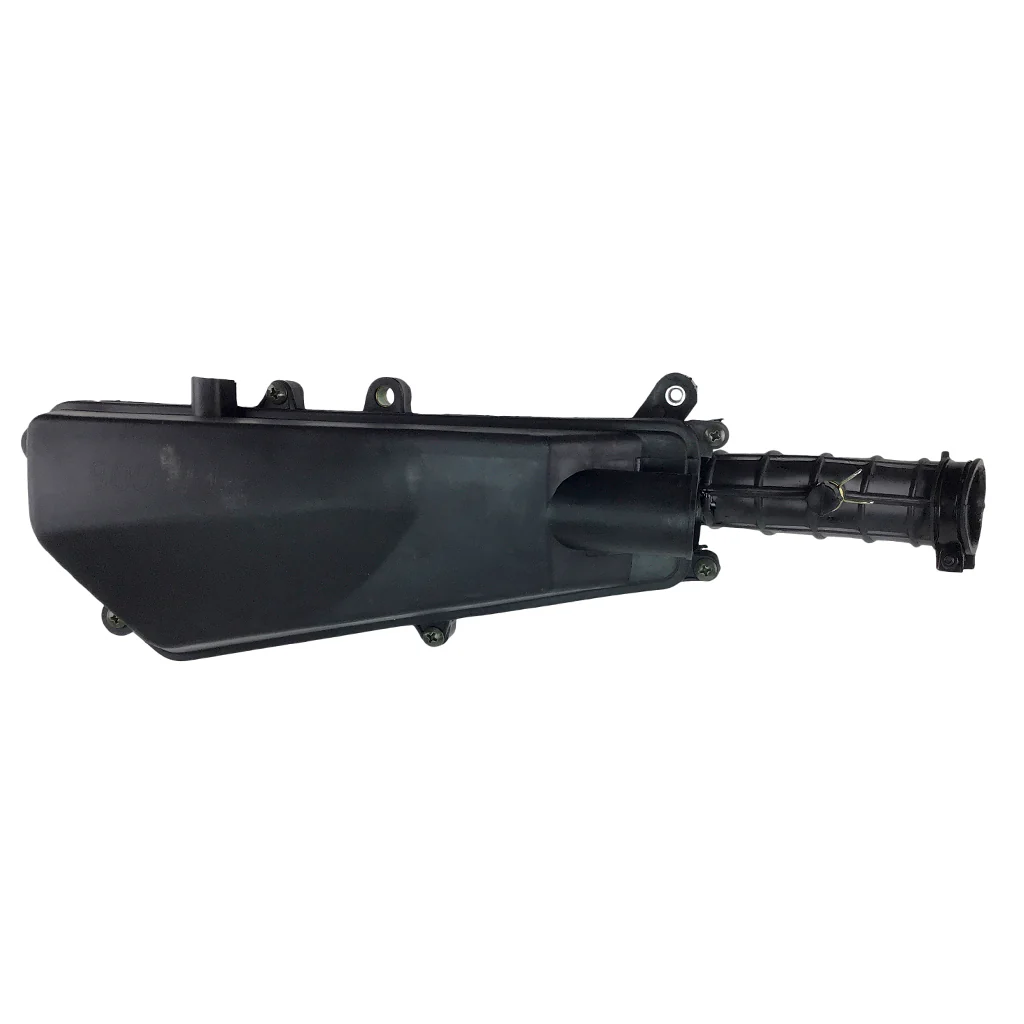

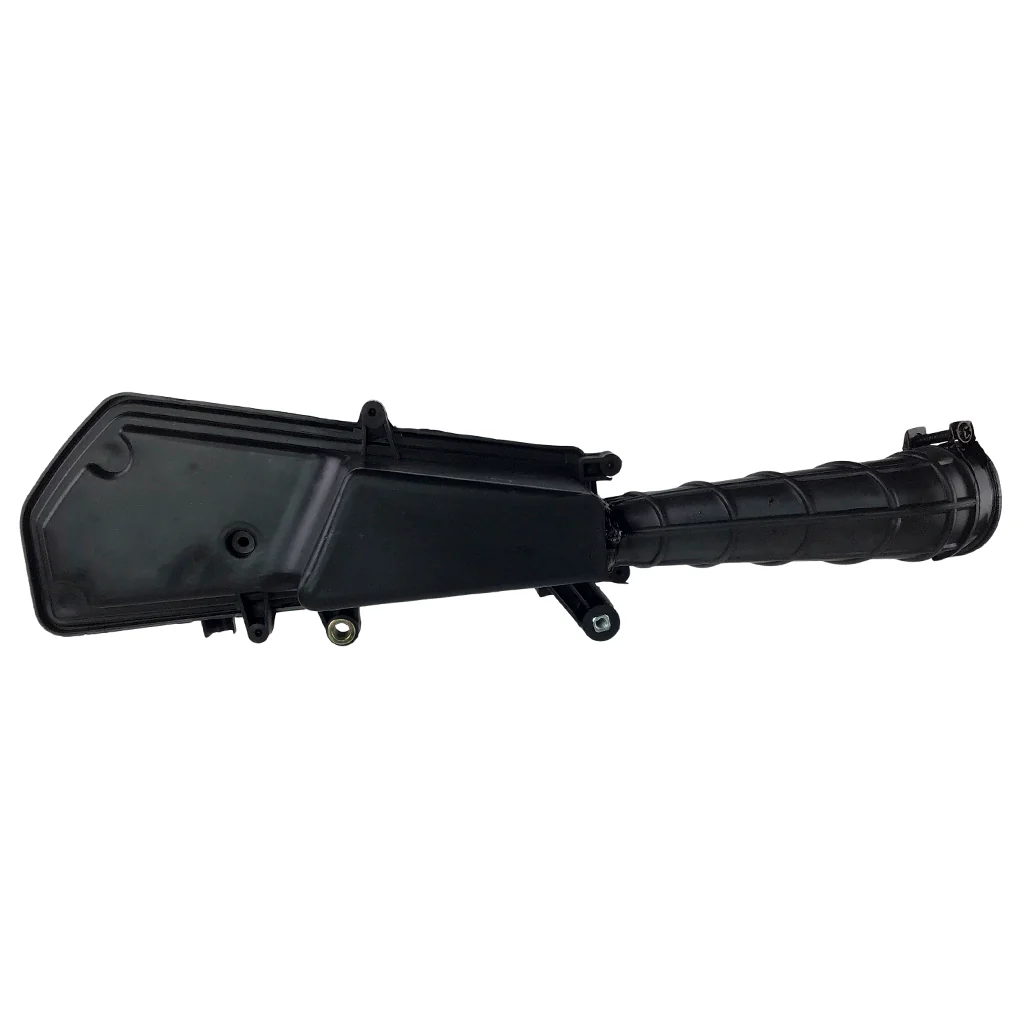

Air Filter Assembly - GY6 50cc Scooter - Version 62

Air Filter and Housing Assembly

This air filter fits the many 50cc scooters.  Please use detail pictures and measurements to verify exact match of your part.

Air filter description:

• Length of air box: 30.5cm (12.0 in) does not include hose
• Width of air box: 12.7cm (5.0 in) at widest point
• Remove 6 self tapping screws to access foam filter
• Foam filter is included
• Inside diameter of hose is approximately 38mm (1.5 in)

• Inside diameter of pipe is 27mm (1.06 in)

• Outside diameter of pipe is 32mm (1.25 in)

• Mounting hole nearest hose is threaded 6mm x 1.0
• Distance between mounting holes is approximately 128mm (5.0 in)

• Box is wide on one end and narrows down toward the hose
• QMB139 139QMB

Shipping details:

Do you need your air filter box fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.    Buy now!
