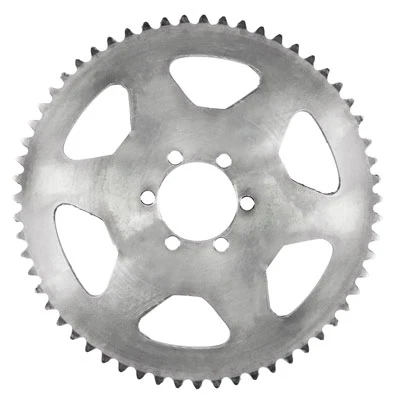

Rear Sprocket - #35 (06C) - 59 Tooth - 38mm Center Hole - Coleman CK100

Chinese ATV Rear Sprocket - 35-59T

This rear sprocket is used on Chinese 50cc-125cc engines.  This sprocket has 59 teeth and is compatible with #35 chain ONLY.   This is the rear sprocket on the Coleman CK100 and the HiSun HS100GK go-karts.

Sprocket details:

• #35 chain
• 59 Teeth
• Center hole diameter: 38mm (1.49 in)
• Mounting holes: 23.5mm (0.92 in) apart center to center (side by side)
• Mounting holes: 48mm (1.89 in) apart straight across
• Overall diameter: 183mm (7.21 in)
• Chain Sprocket III
• 53305-401001-0000
• Fits Coleman CK100 and the HiSun GK100 go-kart.

Be sure to measure your chain or current sprocket before ordering.  420 chain has 1/2 inch pitch and 5/16 inch roller diameter.
