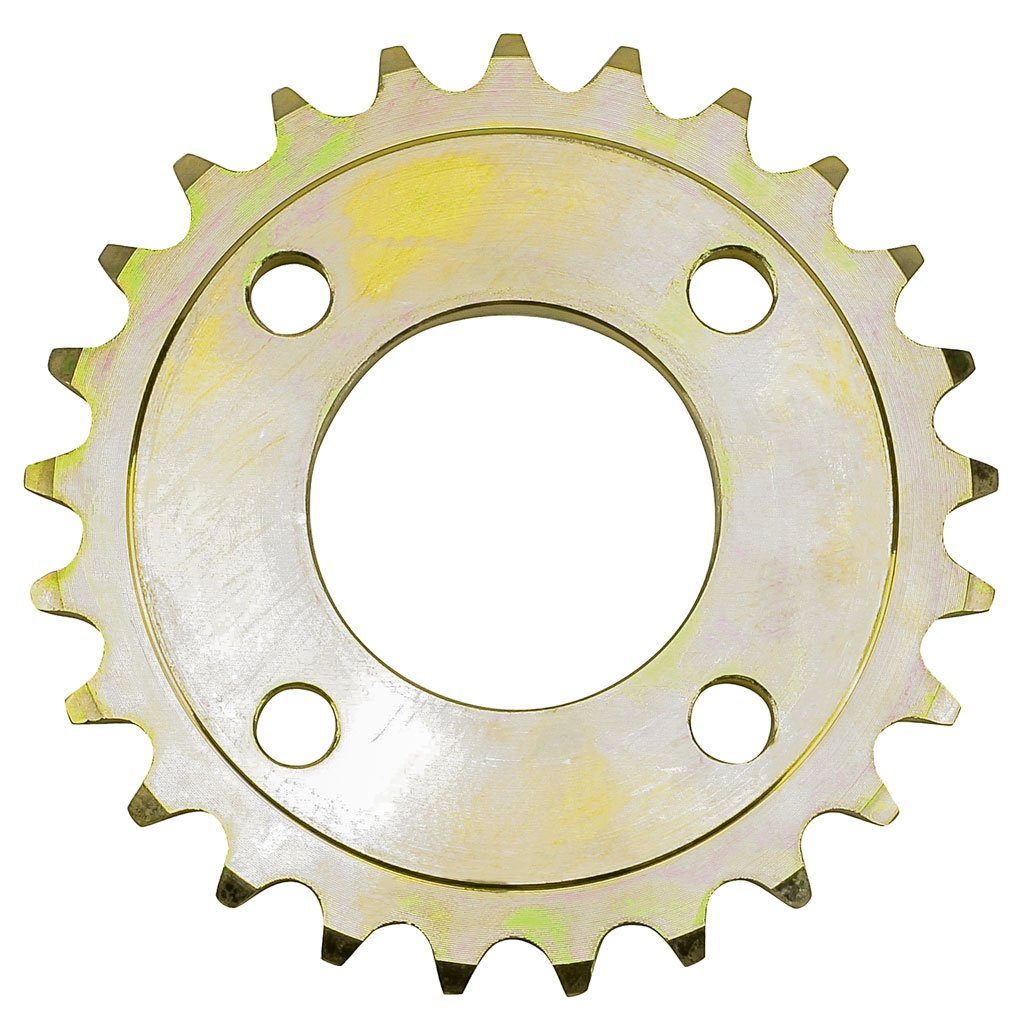

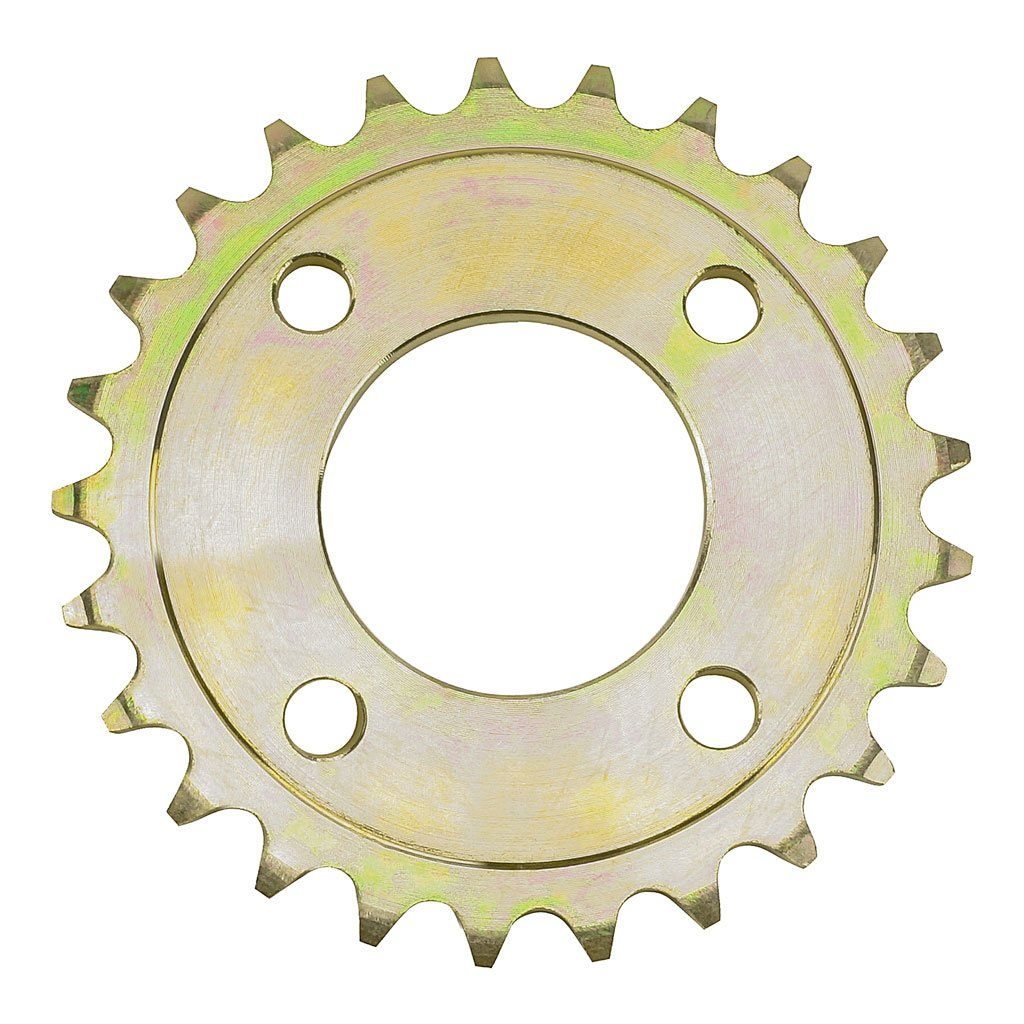

Rear Sprocket - 420 - 25 Tooth - 44mm Center Hole - Coleman KT196

Chinese ATV Rear Sprocket - 420-25T

This rear sprocket is used on Chinese 50cc-125cc engines.  This sprocket has 25 teeth and is compatible with 420 chain ONLY.   This is the rear sprocket on the Coleman CK196, KT196 and the HiSun HS200GK go-karts.

Sprocket details:

• #420 chain
• 25 Teeth
• Center hole diameter: 44mm (1.73 in)
• Mounting holes: 47mm (1.85 in) apart center to center (side by side)
• Mounting holes: 67mm (2.63 in) apart straight across
• Overall diameter: 106mm (4.17 in)
• 41235-132-0000  Chain Wheel III
• 53305-400001-0000
• P400001533050000

Fits the Coleman KT196 and Hisun HS200GK go-karts.

Do you need your rear sprocket fast?  If you order before 3:00 pm CST, Monday thru Friday, your order goes out the same day.  Buy now!
