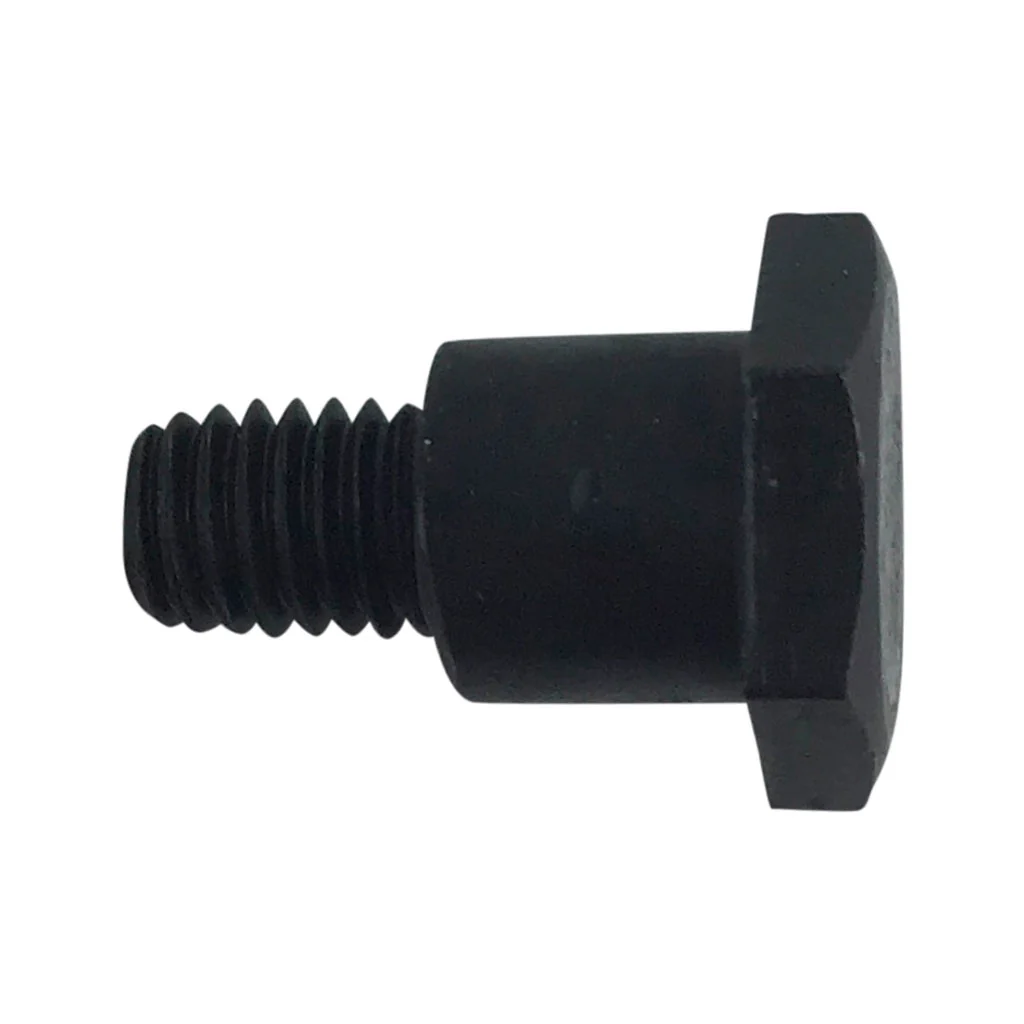

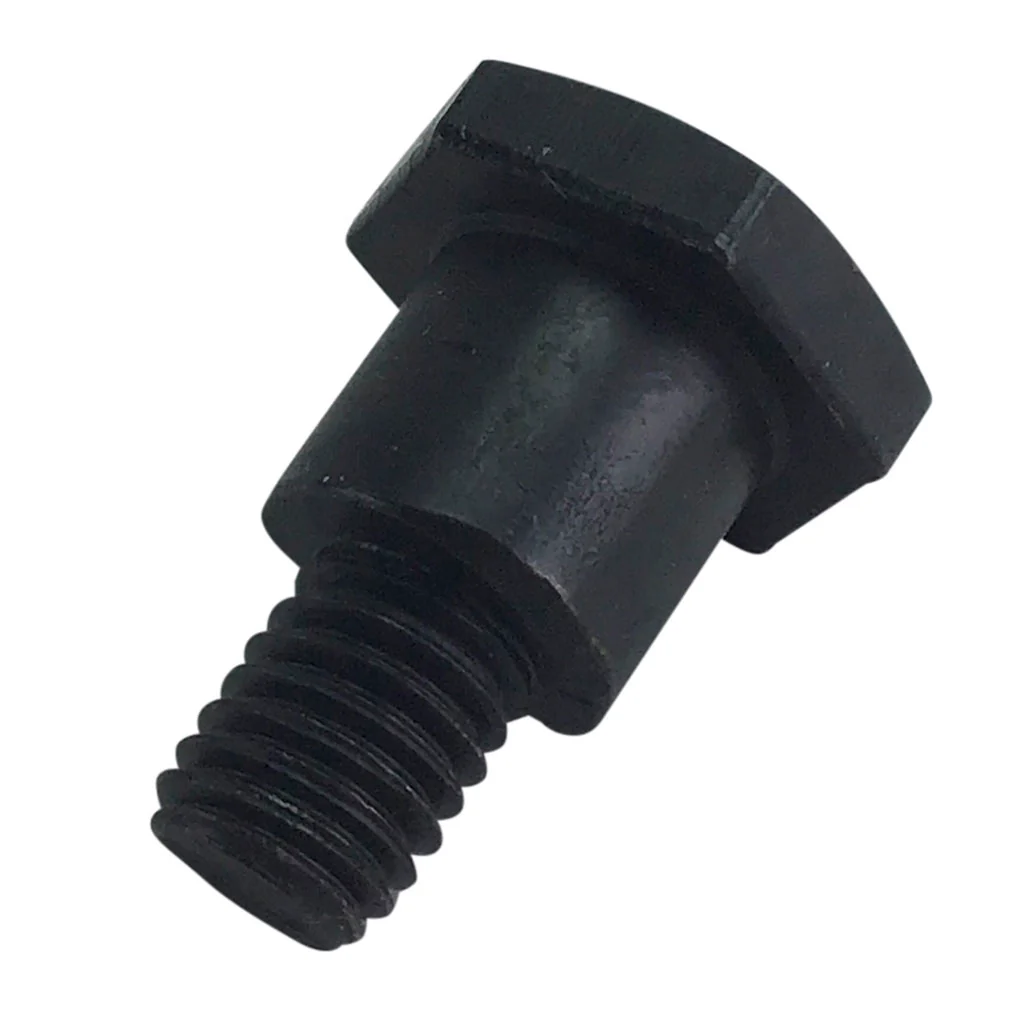

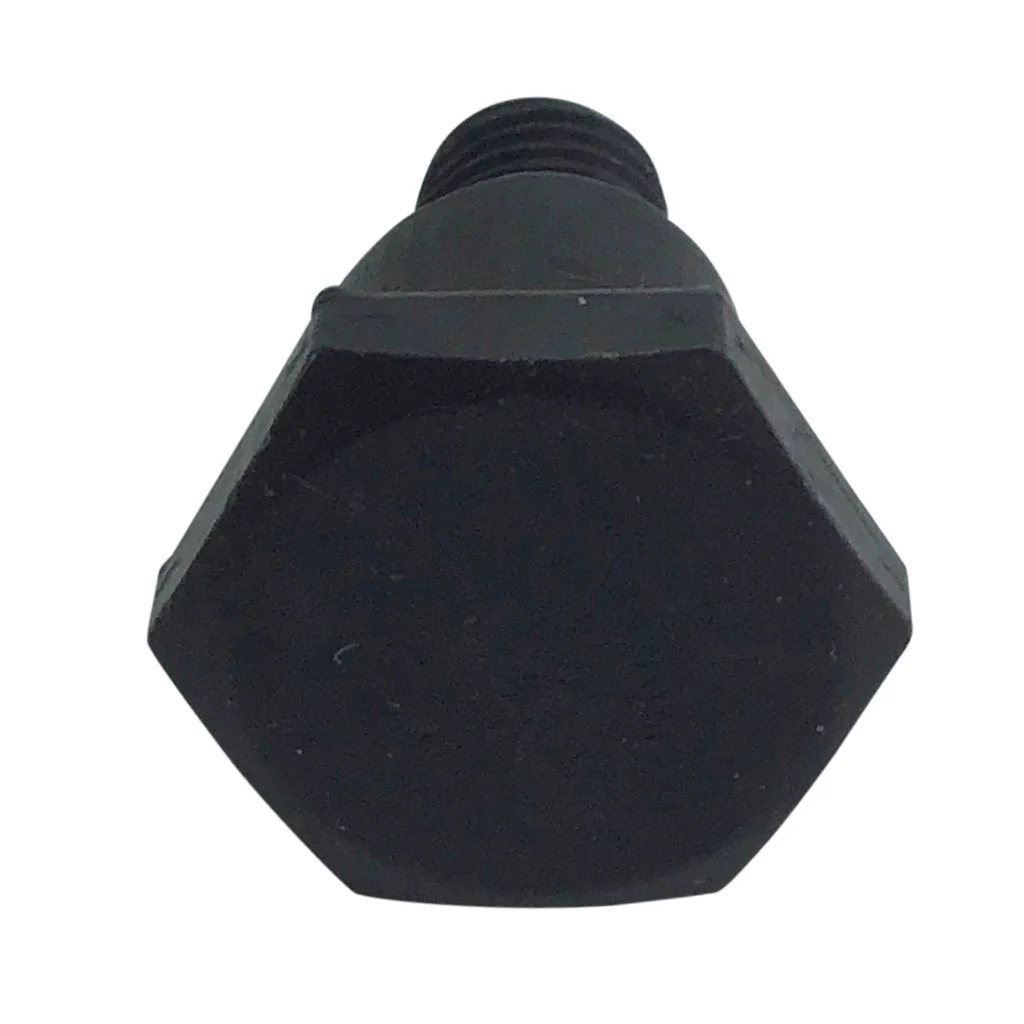

Kickstand Bolt - 10mm*1.25*25 Hex Head Step Bolt

10mm*1.25*25 Hex Head Step Bolt

This step bolt is commonly used to fasten the side stand on a scooter.  Please check the size you need before ordering.

Specs:

• Threads: 10mm*1.25
• Length: 25mm (0.98 in) from back of head to end of bole
• Thread length: 12mm (0.47 in)

• Diameter of unthreaded step: 11.8mm (0.46 in)

• Length of step: 13mm (0.51 in)

• Uses a 17mm hex socket or Allen wrench
• Color may vary
• Side stand pivot bolt
• 50QT-8C-030002   319011017002

• 150T-18-030002  150T-24-030001

This bolt fits a ton of scooters and dirt bikes including the Tao Tao Blade 50, Classic 50, Cruiser 50, DB20, EVO 50, Hellcat 125, Galaxy 150, Jet 50, Lancer 150, New Racer 50, New Speedy 50, Phoenix 150, Pilot 150, Pony 50, Powermax 150, Quantum 150, Speedy 50, Thunder 50 and VIP 50.

Fits the Apollo DB36 dirt bike.
